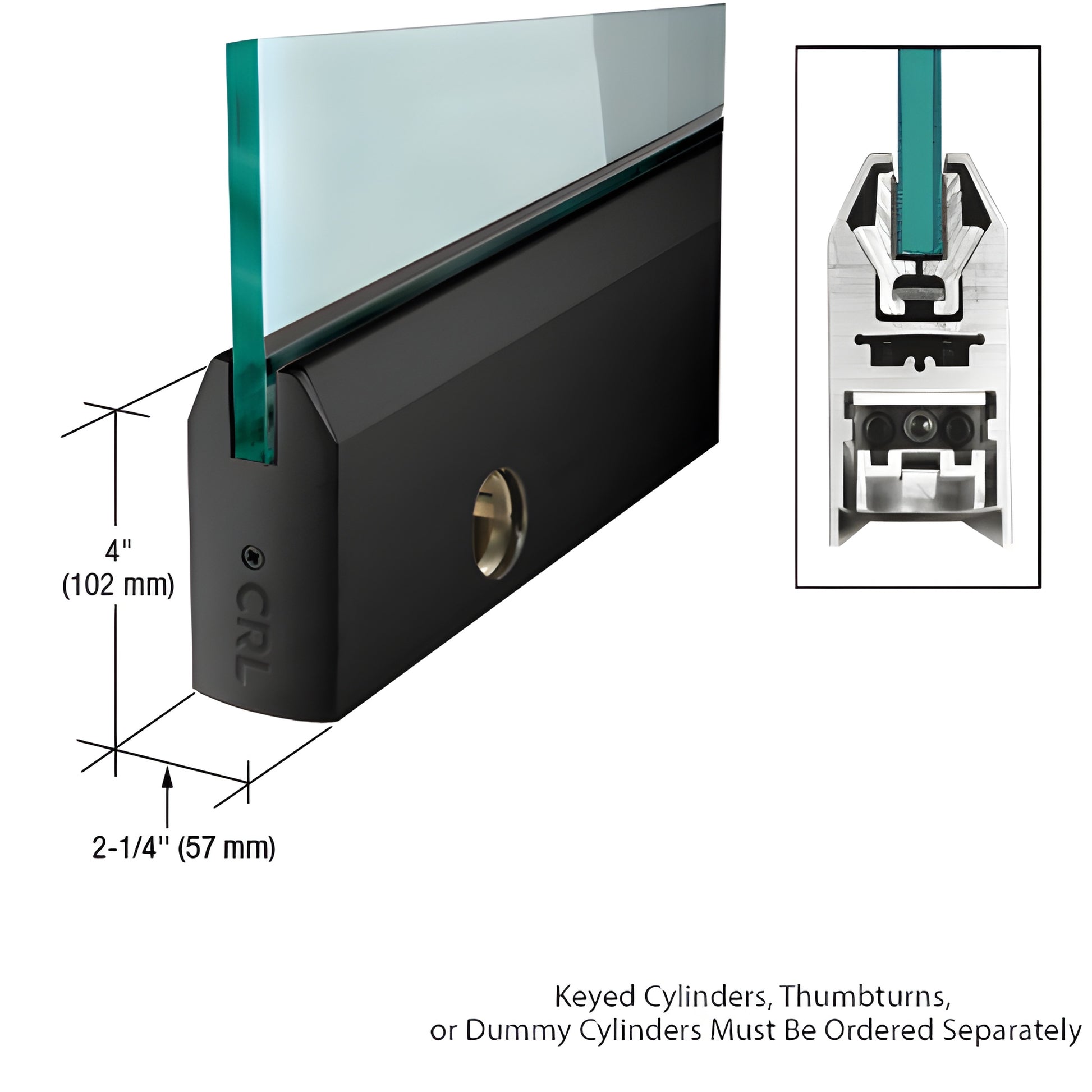

CRL Matte Black Tapered Door Rail 35-3/4" for 1/2" Glass w/Lock

• Custom length for 3/8" glass (10 mm)
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes — custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, features the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented door rail for tempered glass secures the glass using two aluminum retaining extrusions pressed together by a stainless steel bar and socket head cap bolts. The angled extrusions seat into an angled groove in the rail, creating exceptional clamp force (more than 900 lbs. in our 9" corner rail) and unmatched long-term holding power in full-length door rails.

NOTE: Actual product height: 4-1/16” (103 mm)

The Wedge-Lock® system delivers faster installation than competing glass door rails — experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated with end caps installed; after rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable door alignment slide allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door, standard on both top and bottom rails.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" in or out. The low-profile slide lets pivots with slotted grooves be positioned off the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass sizes
• Rigid single-component housing that won’t shift or fall out of adjustment
• Internal components remain assembled for faster installation
• Durable glass-securing pads designed for extreme environments

NOTE: All Wedge-Lock® Door Rails include a built-in jamb alignment block. Arms and pivots must be ordered separately to meet job requirements.

Available in several standard architectural finishes; custom finishes and widths can be quoted. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via
