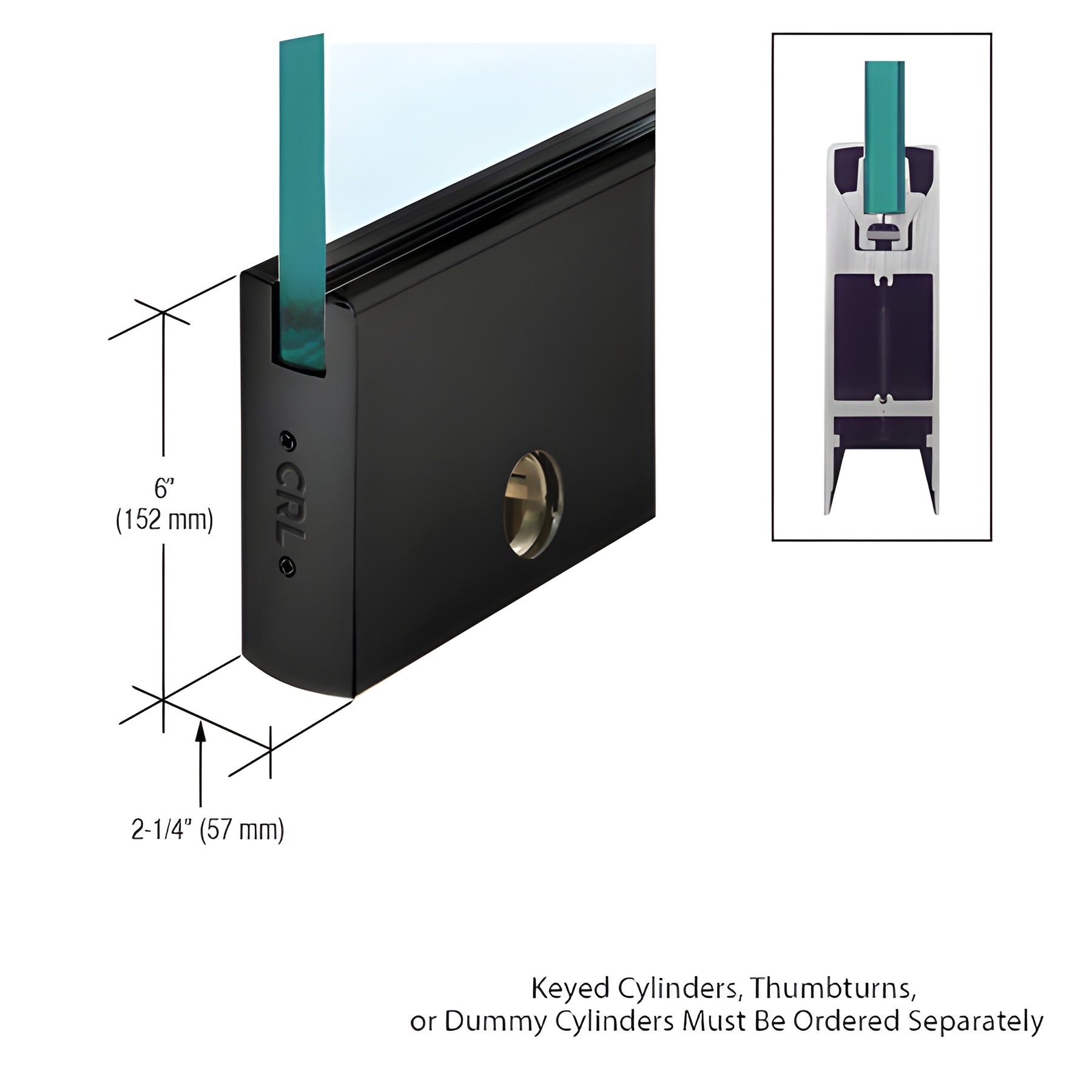

CRL Matte Black 6" Square Glass Door Rail w/ Lock — Custom Length

• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S. & International Patents)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

An innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System (SKU: DR6SMBL12CL) is engineered for frameless and semi-frameless glass doors using 1/2" (12 mm) monolithic tempered glass. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures glass by applying downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges pull the extrusions together, creating exceptional holding force — over 900 lbs. in the 9" (228.6 mm) corner rail — and a robust full-length rail performance for high-traffic commercial entrances.

The Wedge-Lock® system delivers faster installation than traditional door rails. Experienced installers can prepare a door for installation in under ten minutes. Rails arrive fully fabricated and ready-to-install with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the preassembled adjustable door alignment slide. The standard Adjustable Door Alignment System provides ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To fine-tune alignment after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide, while the two outer bolts provide the 1/8" adjustment. The low-profile slide allows pivot placement off the standard 2-3/4" (69.8 mm) setback for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass — ideal for commercial frameless glass doors and storefront entrances
• Rigid, single-component housing that resists shifting or loss of adjustment over time
• Internal components remain installed during mounting — faster, cleaner installations
• Durable glass securing pads engineered for longevity in extreme environments

Note: All Wedge-Lock® Door Rails include the built-in jamb alignment block; arms, pivots, keyed cylinders, thumbturns, and closer arms must be ordered separately to meet job requirements.

Available in several standard architectural finishes; custom finishes and
