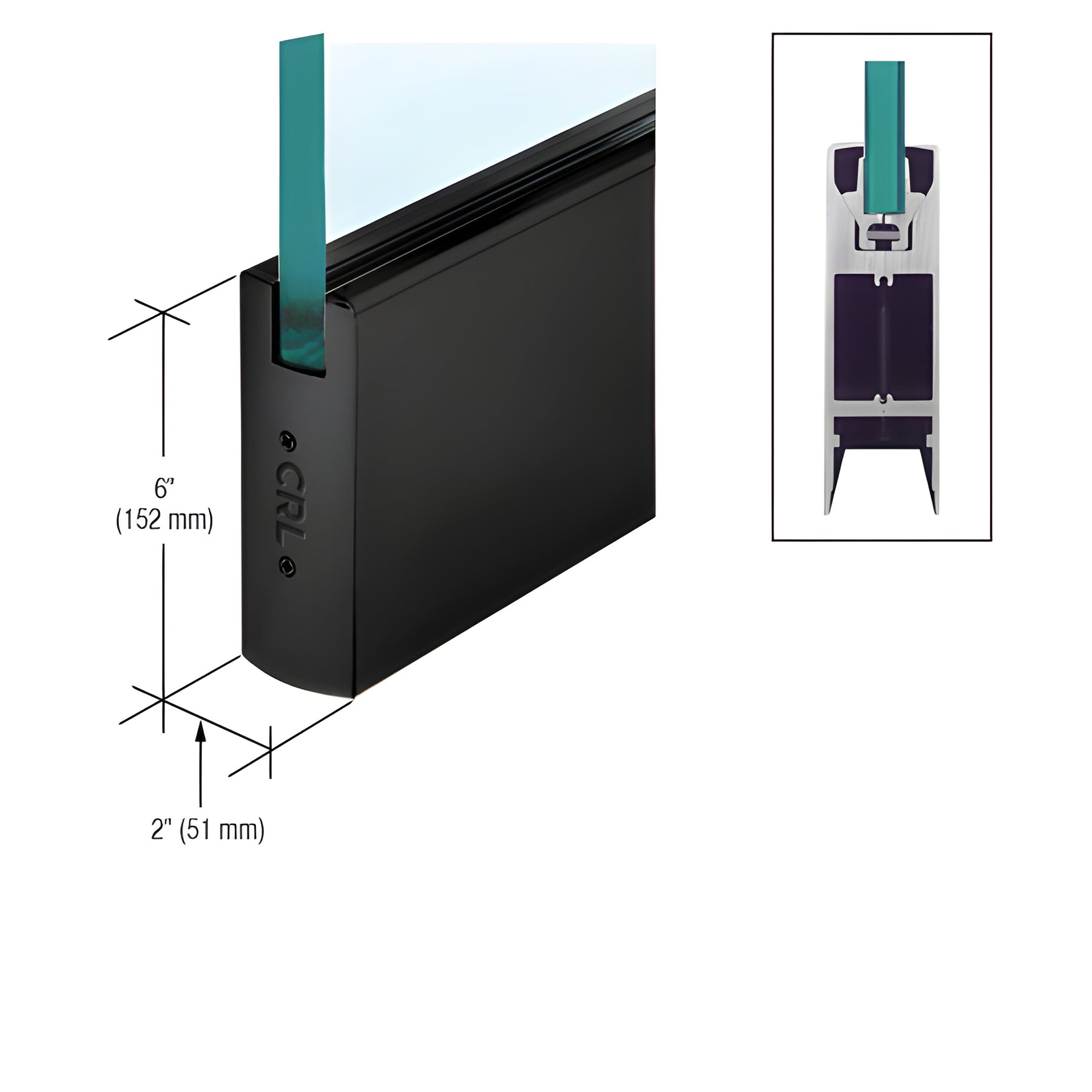

CRL Matte Black 6" Square Door Rail 1/2" Glass - Custom, No Lock

• SKU: DR6SMBL12C
• Custom Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

An innovative commercial glass entrance solution, the CRL Wedge-Lock® Door Rail System features the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2, Canadian Patent 2,419,706, and European Patent No. EP 1 404 939 B1). The system secures temperered glass by applying downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts into the angled groove of the rail, the wedge action compresses the extrusions and gasket to generate high clamping force—over 900 lbs. in the 9" (228.6 mm) corner rail—providing industry-leading glass retention for door applications.

The Wedge-Lock® design reduces installation time—experienced installers can prepare a door for hanging in under ten minutes. Rails ship fully fabricated with end caps installed and include an adjustable door alignment slide for +/-1/8" (3.2 mm) adjustment without removing the door. This low-profile slide allows pivot placement other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Key benefits and long-tail features:

• Fastest-install tempered glass door rail for commercial and architectural entrances
• Rigid, single-component housing that resists shifting and loss of adjustment
• Internal components remain in place—no removal required before installation
• Durable glass-securing pads designed for longevity in extreme environments
• Options: locks installed (keyed cylinders/thumbturns ordered separately), multiple finishes, custom widths and lengths

NOTE: All Wedge-Lock® Door Rails include the built-in jamb alignment block. Arms, pivots, closer arms and floor or overhead pivots must be ordered separately to meet job requirements.

Rail specifications, templates and hardware packages are available from CRL Technical Sales—contact us via e-mail.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and pivots sold separately
• Models with locks are supplied with the lock mechanism installed; keyed cylinders or thumbturns must be ordered separately
