CRL Matte Black 1/2 in Glass Square Door Rail w/ Lock, Custom Length

• Custom length for 1/2" (12 mm) monolithic tempered glass

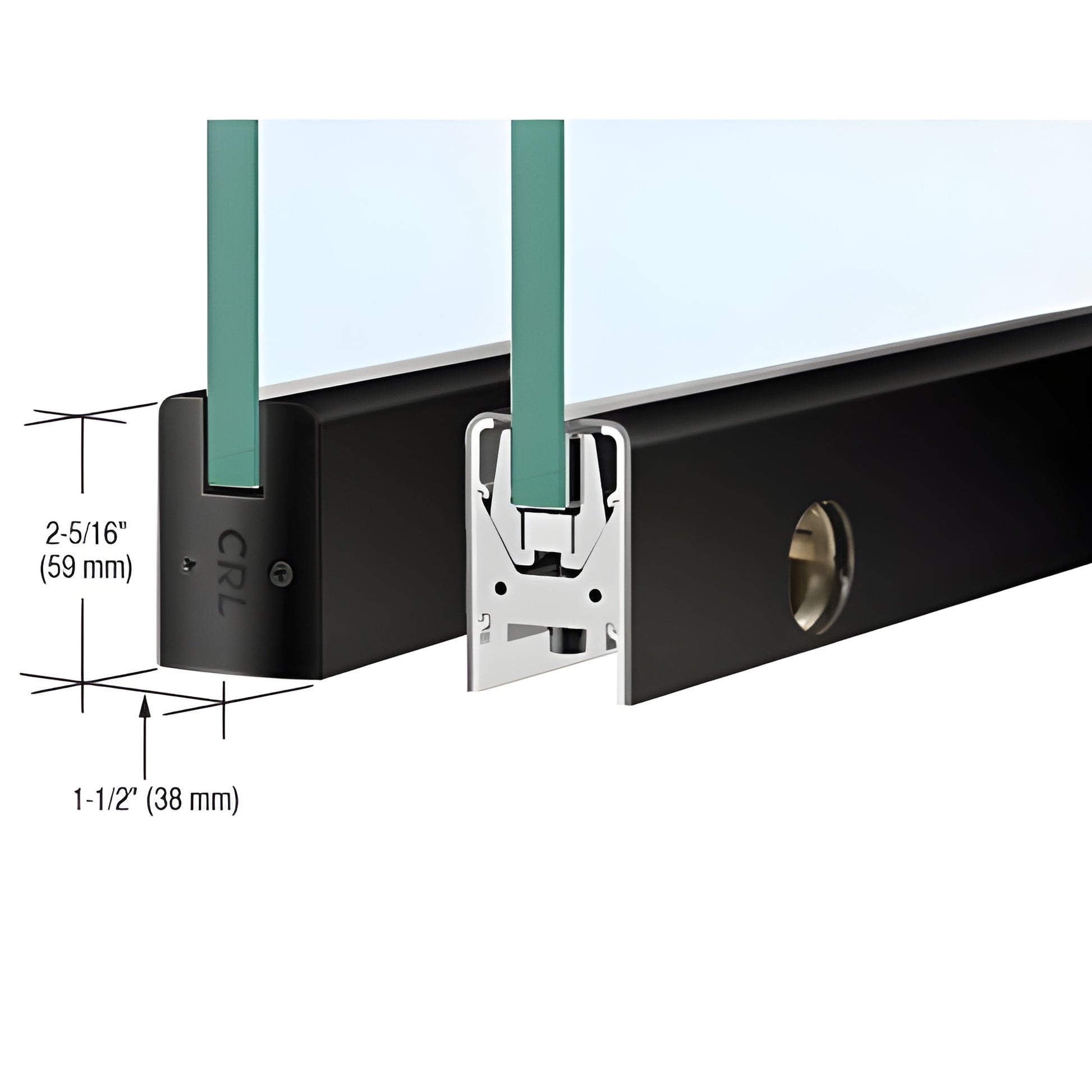

• Low profile rails: 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide
• Patented Wedge-Lock® Glass Securing System for fast, secure installation (U.S. Patents 6,434,905; 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)
• Available in several stock architectural finishes; custom finishes available
• Available without locks; models with locks ship with latch mechanism installed (keyed cylinders or thumbturns ordered separately)
• Matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2SMBL12CL) combines a slim aesthetic with proven performance. The rail integrates the patented Wedge-Lock® system and ships complete with end caps, installation instructions, and adjustment wrenches so it’s ready to install for storefronts, glass entry doors, and other commercial applications.

The Wedge-Lock® Glass Securing System delivers the fastest installation time among door rails—experienced installers can prepare a door in under ten minutes. Rails come fully fabricated with the Adjustable Door Alignment System already assembled, allowing 1/8" (3 mm) in-or-out adjustment on both top and bottom rails without removing the door. Adjustment access is through the end cap to three socket head cap bolts: one securing bolt and two adjustment bolts for fine alignment. The low-profile slide permits pivot placement off the American Standard setback so rails can be fabricated for vertically out-of-square openings.

Other advantages:

• Models accept a range of glass thicknesses (refer to product model for exact range)
• Rigid, single-component housing resists shifting and long-term misalignment
• Internal components remain in place during installation—no pre-removal required
• Durable glass-securing pads designed for longevity in extreme environments
• Built-in jamb alignment block standard; arms and pivots ordered separately

Ordering & Accessories
• Supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots sold separately.
• Models with locks include latch mechanism; keyed cylinders or thumbturns ordered separately.
• Pivot inserts (1NT701, 1NT703, 1NT704) and Low Profile Door Rail Pivot Inserts are sold separately.
• End caps, installation instructions, and adjustment wrenches included. Specify total door rail length (including end caps) when ordering custom lengths.
• Rail specifications, templates and hardware packages available from CRL Technical Sales via e-mail.

Product Warning:
Rails with locks are supplied with a latch mechanism installed; matching finish keyed cylinders or
