CRL Matte Black 1/2 in Glass Low-Profile Door Rail w/ Lock - Custom

• Custom length for 1/2" (12 mm) glass
• For monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Low profile rails — only 2-5/16" (59 mm) tall
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

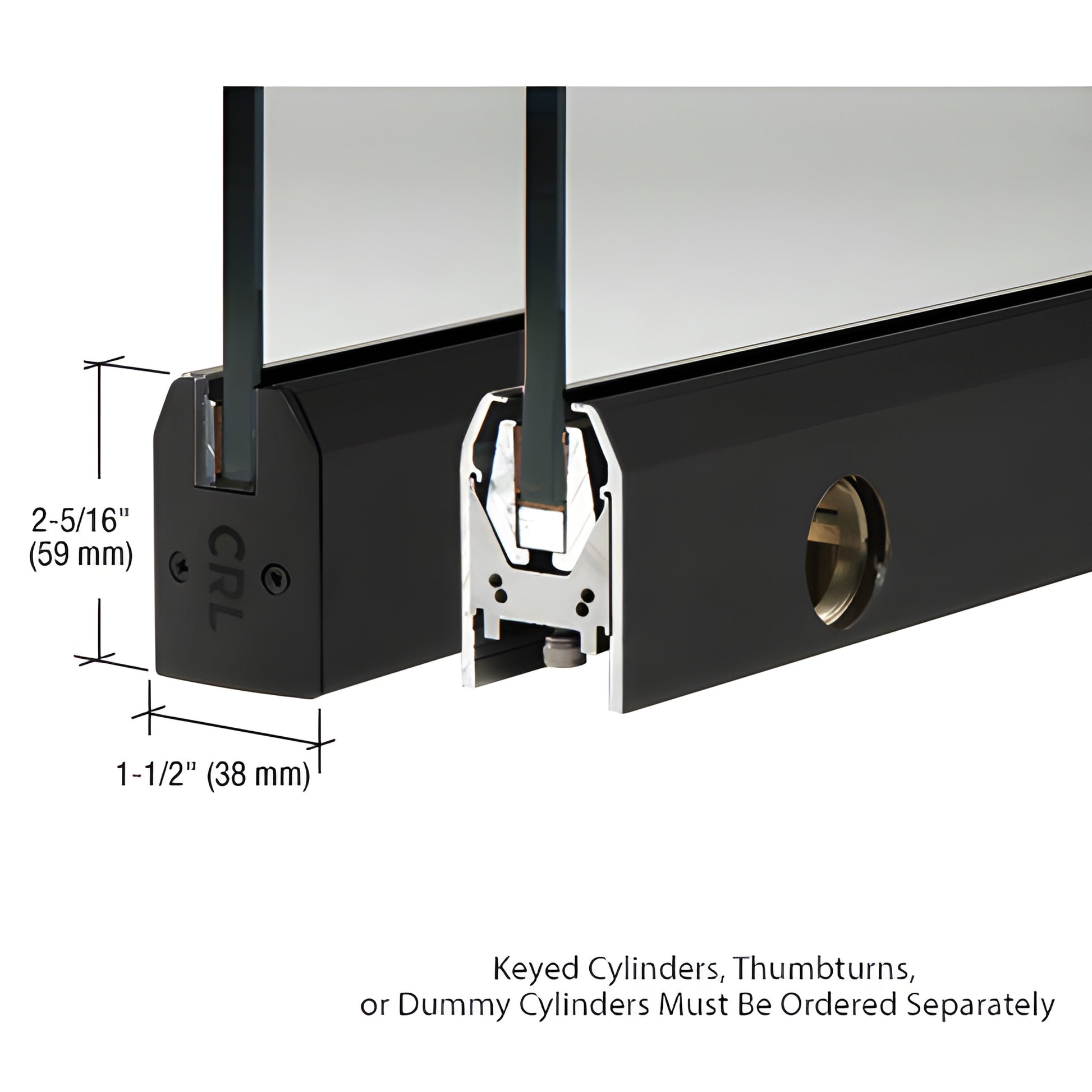

Our CRL Low Profile Door Rail (SKU: DR2TMBL12CL) measures 2-5/16" (59 mm) tall by 1-1/2" (38 mm) wide and incorporates the patented Wedge-Lock® Glass Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). Rails come complete with end caps, installation instructions, and adjustment wrenches—ready to install.

The Wedge-Lock® system delivers secure attachment plus industry-leading installation speed; experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated with end caps installed. After mounting the rail, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System allows ±1/8" (3 mm) adjustment toward or away from the jamb without removing the door. This feature is standard on both top and bottom rails. To adjust after installation, remove the end cap to access three socket head cap bolts: the center secures the slide, the outer bolts adjust the slide in or out. The low-profile slide permits pivot placement other than the standard 2-3/4" (69.8 mm) setback, enabling fabrication for vertically out-of-square openings.

Other benefits of Wedge-Lock® door rails:

• Models available to accept 3/8" to 3/4" (10 to 19 mm) glass
• Rigid single-component housing—won’t shift or fall out of adjustment
• Internal components remain in place during installation
• Durable glass-securing pads designed for extreme environments

Note: All Wedge-Lock® rails include the built-in jamb alignment block; arms and pivots must be ordered separately to meet job requirements. Rails are available in several standard finishes; custom finishes and widths can be quoted on request. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.

Ordering information:

• All door rails supplied with standard Kwik-Adjust™ pivot alignment system. Closer arms and floor or overhead pivots sold separately.
• Models with locks are supplied with the lock mechanism installed; matching finish keyed cylinders or thumbturns must be ordered separately
