CRL Matte Black 1/2" Glass Low-Profile Tapered Door Rail, No Lock

• Custom length for 1/2" (12 mm) monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1)

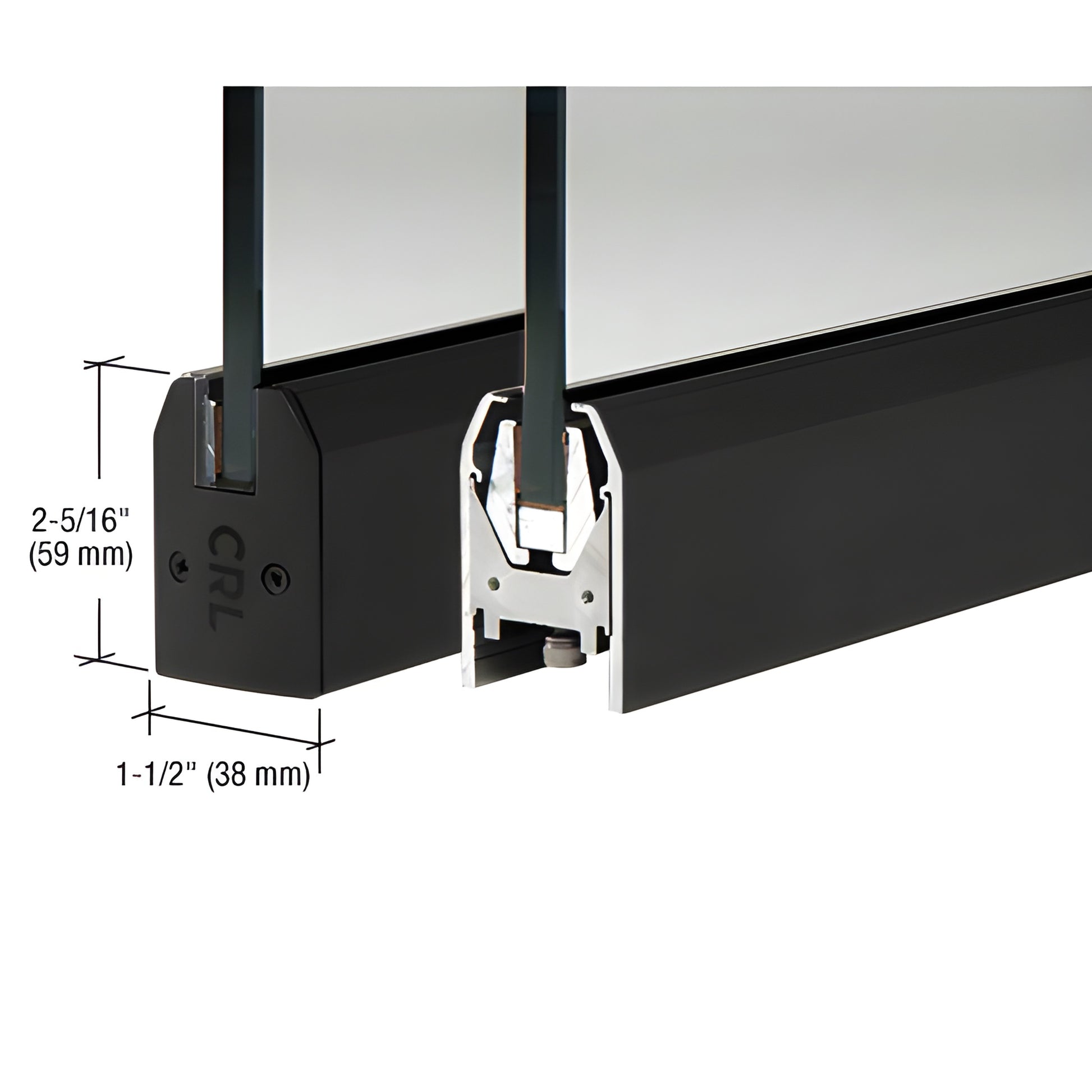

• Low profile rails: 2-5/16" (59 mm) tall x 1-1/2" (38 mm) wide
• Available in several stock architectural finishes; custom finishes available
• Available without locks
• Matching sidelite rails available

Our CRL Low Profile Door Rail (SKU: DR2TMBL12C) is a ready-to-install, low profile glass door rail engineered for 1/2" (12 mm) monolithic tempered glass. At just 2-5/16" (59 mm) tall, it incorporates the patented Wedge-Lock® system for fast, secure glass retention—ideal for commercial and architectural glass door projects that require a slim rail and high-performance installation.

The Wedge-Lock® Glass Securing System delivers the fastest installation time in its class. Experienced installers can prepare a door in under ten minutes. Rails ship complete with end caps, installation instructions, and adjustment wrenches.

Standard adjustable door alignment slides (top and bottom) allow +/-1/8" (3 mm) adjustment toward or away from the jamb without removing the door. After installation, remove the end cap to access three socket head cap bolts: center bolt secures the slide; outer bolts adjust the slide in or out. The low-profile slide enables pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), allowing fabrication for vertically out-of-square openings.

Key differentiators:

• Ready-to-install, single-component rigid housing that resists shifting and long-term loss of adjustment
• Internal components stay assembled for faster field installation
• Glass securing pads designed for longevity in extreme environments
• Models available to accept 3/8" to 3/4" (10–19 mm) glass for broader project flexibility

Notes & compatibility

• All Wedge-Lock® rails include a built-in jamb alignment block; arms and pivots are sold separately to meet job requirements
• All door rails are supplied with the standard Kwik-Adjust™ pivot alignment system; closer arms and floor/overhead pivots must be ordered separately
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns sold separately
• End caps included in stock door rail lengths; specify full door rail length (including end caps) for custom orders
• Pivot inserts 1NT701, 1NT703, and 1NT704 sold separately for use with overhead or floor closers
• Prepped to receive Low Profile Door Rail pivot inserts (sold separately)
