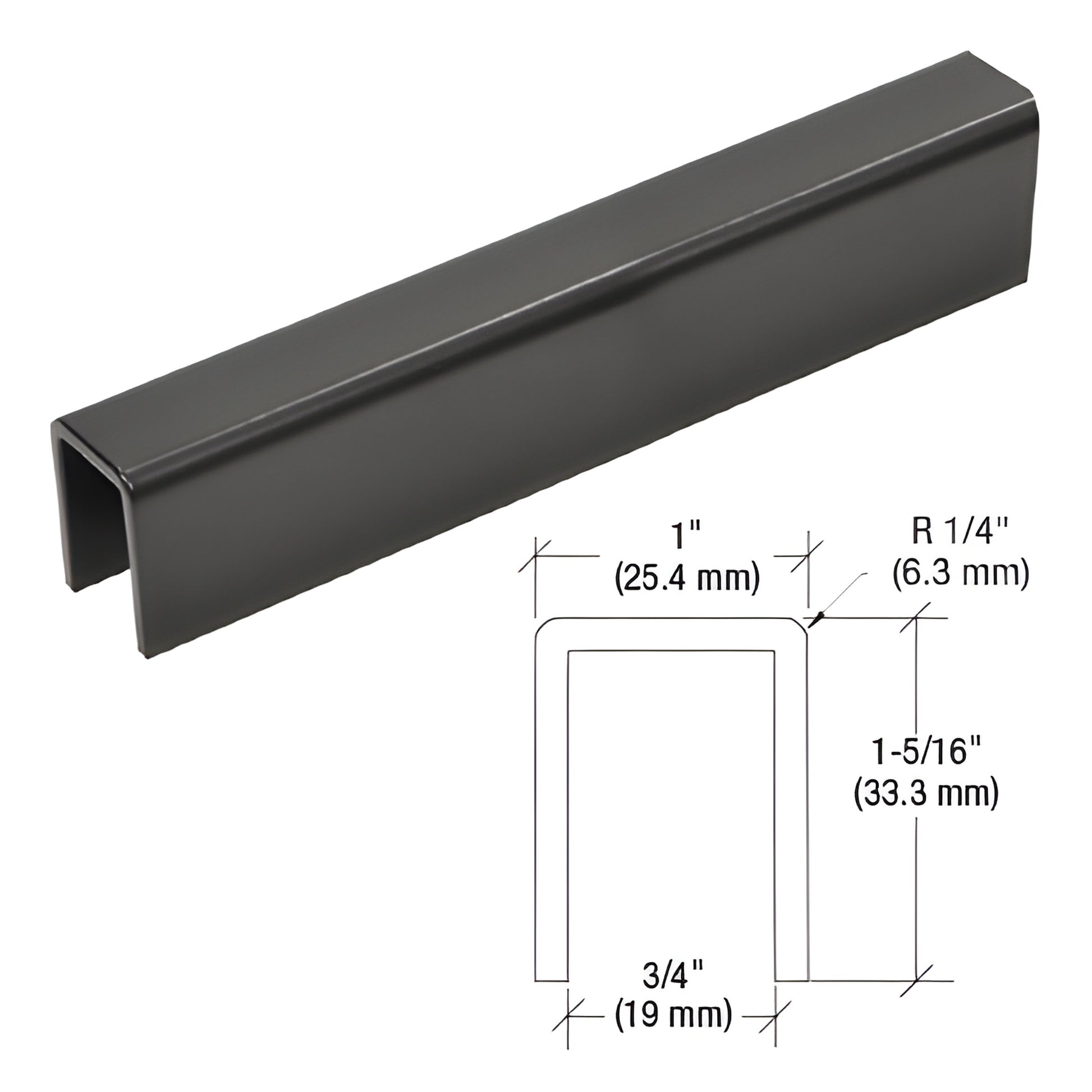

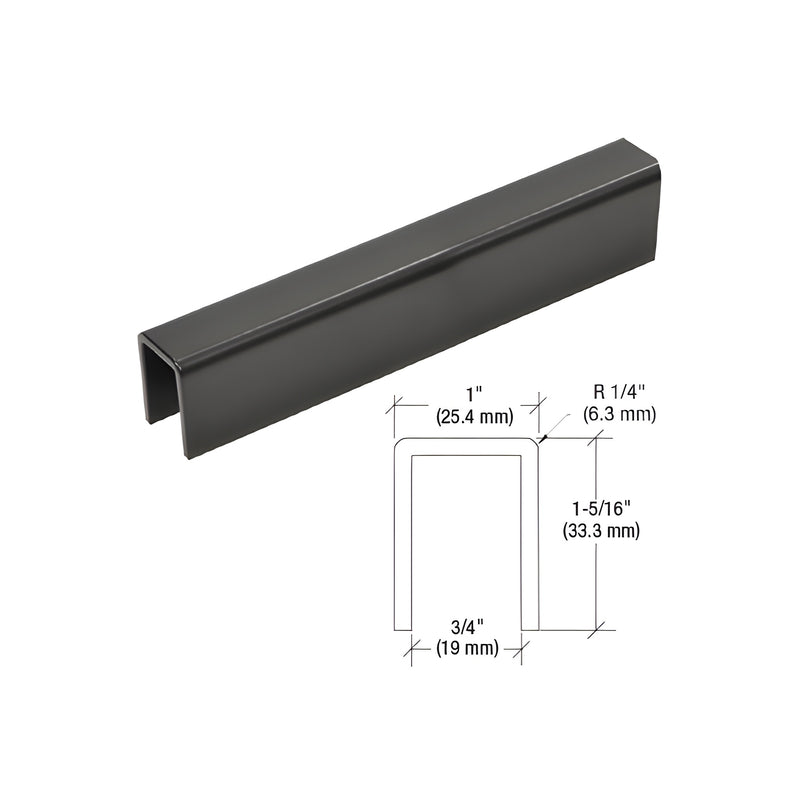

CRL Matte Black 11-Gauge Glass Cap Rail 20' for 1/2 & 5/8 in
Item# GRL10MBL20
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Matte Black
Glazing Thickness
1/2 in. & 5/8 in. (12 mm & 16 mm)
Height
1-5/16 in. (33 mm)
Length
240 in. (6096 mm)
Material
6063 - T5 Aluminum
Width
1 in. (25 mm)
- Fits 1/2" (12 mm) or 5/8" (16 mm) monolithic glass
- Designed as a top rail for guard rail and balcony glass applications
- Protects glass edge and secures glass panels together
- Available in three architectural finishes
- Connects to fabricated corners and end caps
CRL Low Profile Cap Rail (SKU: GRL10MBL20) is manufactured from 11 gauge aluminum to provide a low-profile aluminum cap rail for monolithic glass guard rails. It protects glass edges, secures panels, and integrates with fabricated corners and end caps for clean, continuous glass railing installations.
NOTE: For 1/2" (12 mm) glass use GR5PV cap rail vinyl and 95CBL silicone to secure the glass. For 5/8" (16 mm) glass secure with 95CBL silicone and shims. Contact CRL Technical Sales for application guidance.
SPECIFICATIONS:
Stock Length: 10' (3.05 m)
Typical Uses: Protect edges of glass and secure glass panels together in cap railing installations
Most shipping weights are approximate and have not been verified. If exact weight or confirmed shipping costs are required to complete your order, request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on monitor settings.
Order the GRL10MBL20 low profile cap rail for aluminum glass guard rails today or contact CRL for a quote and technical assistance.
