CRL 120" Matte Black Shallow U-Channel for Glass Panels
Item# SCMBL3812SL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Finish/Color
Matte Black

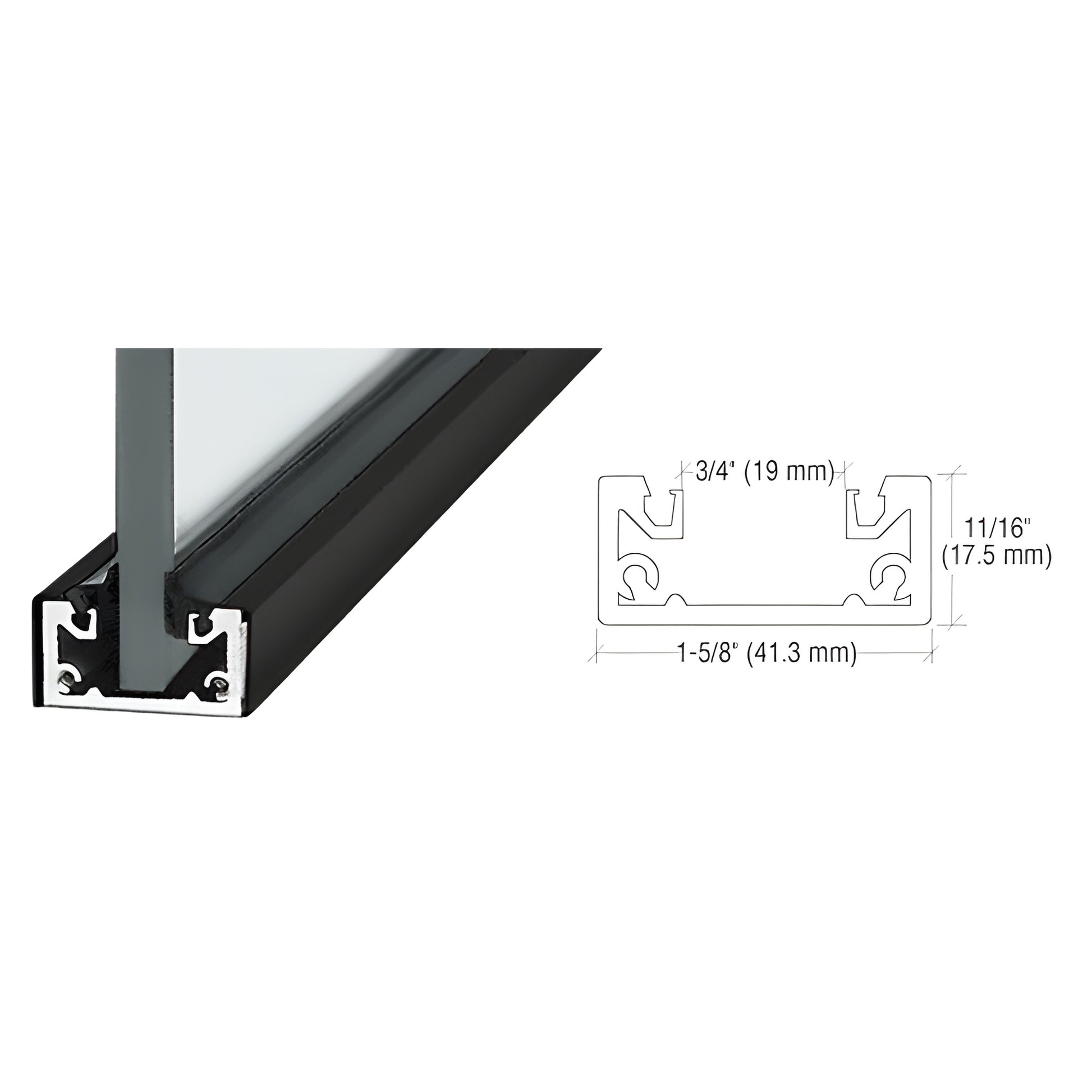

Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
11/16 in. (17 mm)
Length
120 in. (3048 mm)
Width
1-5/8 in. (41 mm)
- Top-loading roll-in glazing gasket for 3/8" and 1/2" (10 and 12 mm) glass
- Designed for recessed "all-glass" installations—ideal for sash channels above headers, walls, or floors
- Use with monolithic tempered glass
- Nine standard architectural finishes
- Custom finishes and powder painting available
- Custom lengths available; stock lengths: 120" (3.05 m) and 240" (6.10 m)
CRL Shallow U-Channel (SKU: SCMBL3812SL) can be recessed into drywall or finished flooring to create a seamless all-glass look. Its top-loading roll-in gasket simplifies installation for glass partitions, shower enclosures, and frameless storefronts while maintaining a low-profile appearance.
Note: The roll-in glazing gasket is included with packages for 1/2" (12 mm) glass. For 3/8" (10 mm) glass, the roll-in glazing gasket must be ordered separately.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs prior to ordering, contact CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary based on your monitor settings.
Order the CRL Shallow U-Channel (SCMBL3812SL) for a clean, recessed frameless glass installation — contact us to request custom lengths or finishes.
