CRL Matte Black 156" Heavy-Duty Windscreen Replacement Post
CRL Matte Black 156" Heavy-Duty Windscreen Replacement Post
Regular price
$826.92 CAD
Regular price
Sale price
$826.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD156BL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

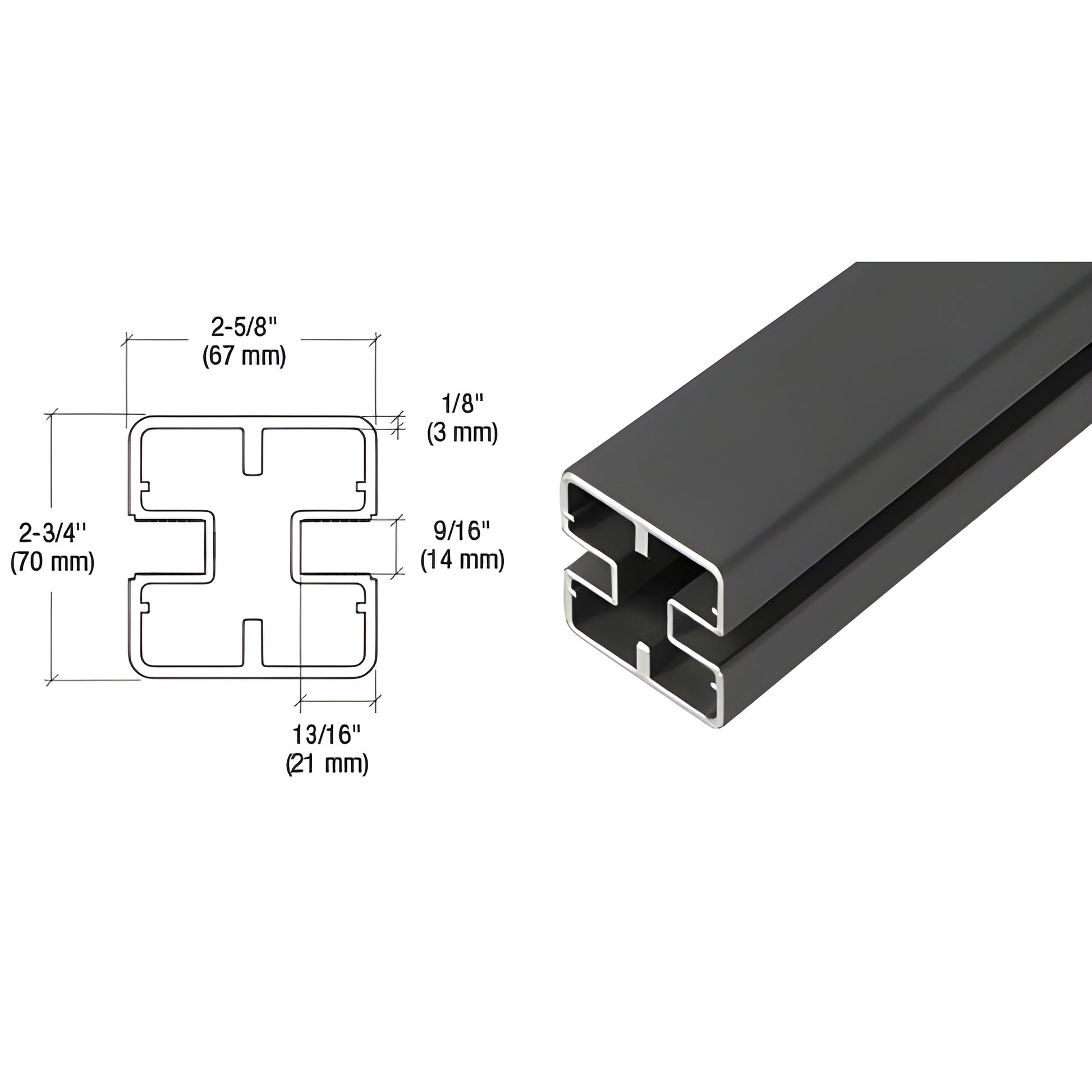

Description
Depth
13/16 in. (21 mm)
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
156 in. (3962 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- Available as posts only or in kits containing post, flat top cap, and glazing vinyl
- Seven standard colors plus mill aluminum; custom colors available on request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass when wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl for easy glass railing installation
SKU: HD156BL
HD posts are engineered for heavy-duty glass railing applications—use them as end posts or to join two panels at 180°. Designed for glass panels up to 24 sq. ft. per panel with maximum post spacing of 72" (1.83 m) on center. These posts support both dry-glazed glass panels (6–10 mm) and wet-glazed panels sealed with structural silicone (12–13.52 mm).
Key differentiators: ready-to-ship kits, multiple finish options including mill aluminum, custom color matching available, and components sized for commercial and residential glass rail projects.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Ready to specify HD156BL for your next glass railing project? Contact CRL Customer Service to request weight, color samples, or place an order.
Specifications
CAD Drawings - pdf
