CRL Matte Black 240 in Shallow U-Channel for Glass Doors
Item# SCMBL3812240
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

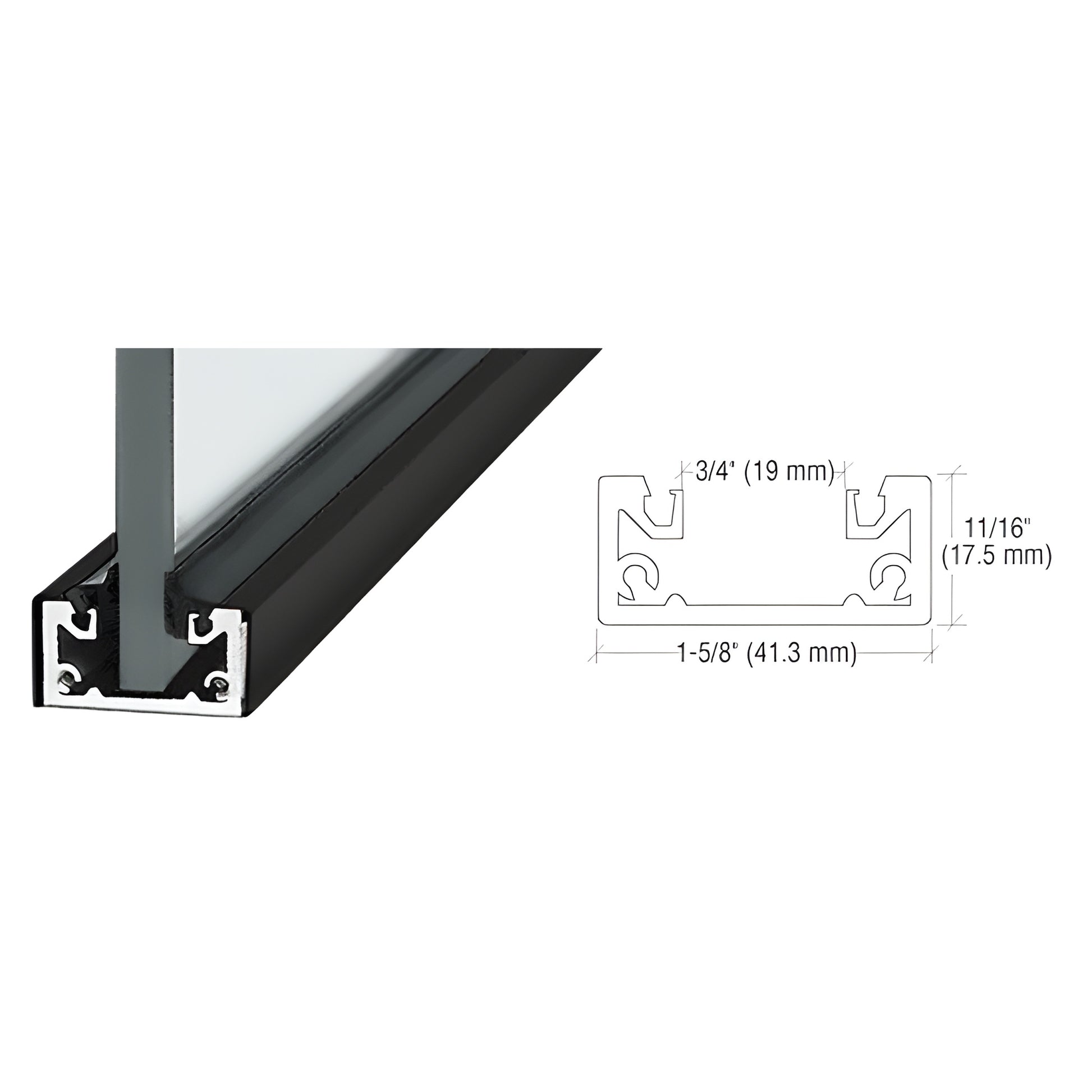

Finish/Color
Matte Black
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
11/16 in. (17 mm)
Length
240 in. (6096 mm)
Width
1-5/8 in. (41 mm)
- Top Loading Gasket for easy glazing
- Ideal for recessed "All-Glass" installations
- Designed for monolithic tempered glass
- Nine standard architectural finishes
- Custom finishes and powder painting available
- Custom lengths available; stock: 120" (3.05 m) and 240" (6.10 m)
CRL Shallow U-Channel (SKU: SCMBL3812240) can be used for a variety of commercial and residential glass installations—sash channels above headers, or on walls and floors where drywall or finished flooring conceals the channel to create a true "All-Glass" aesthetic. Stock lengths are sold in 120" (3.05 m) and 240" (6.10 m).
NOTE: For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included. If using 3/8" (10 mm) glass, the Roll-In Glazing Gasket must be ordered separately.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before placing your order. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor settings.
Order the CRL Shallow U-Channel (SCMBL3812240) for a low-profile, top-loading channel solution that delivers a seamless all-glass look—contact us to request a quote or custom finish today.
