CRL 240" Matte Black U-Channel for Glass with Roll-In Top-Load Gasket
Item# UCMBL3812240
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Matte Black
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
1-5/8 in. (41 mm)
Length
240 in. (6096 mm)
Width
1-5/8 in. (41 mm)
- Top-loading roll-in glazing gasket for 3/8" and 1/2" (10 and 12 mm) glass
- Ideal for ceiling- or floor-mounted glass installations
- Designed for monolithic tempered glass
- Nine standard architectural finishes
- Custom finishes and powder coating available
- Custom lengths available

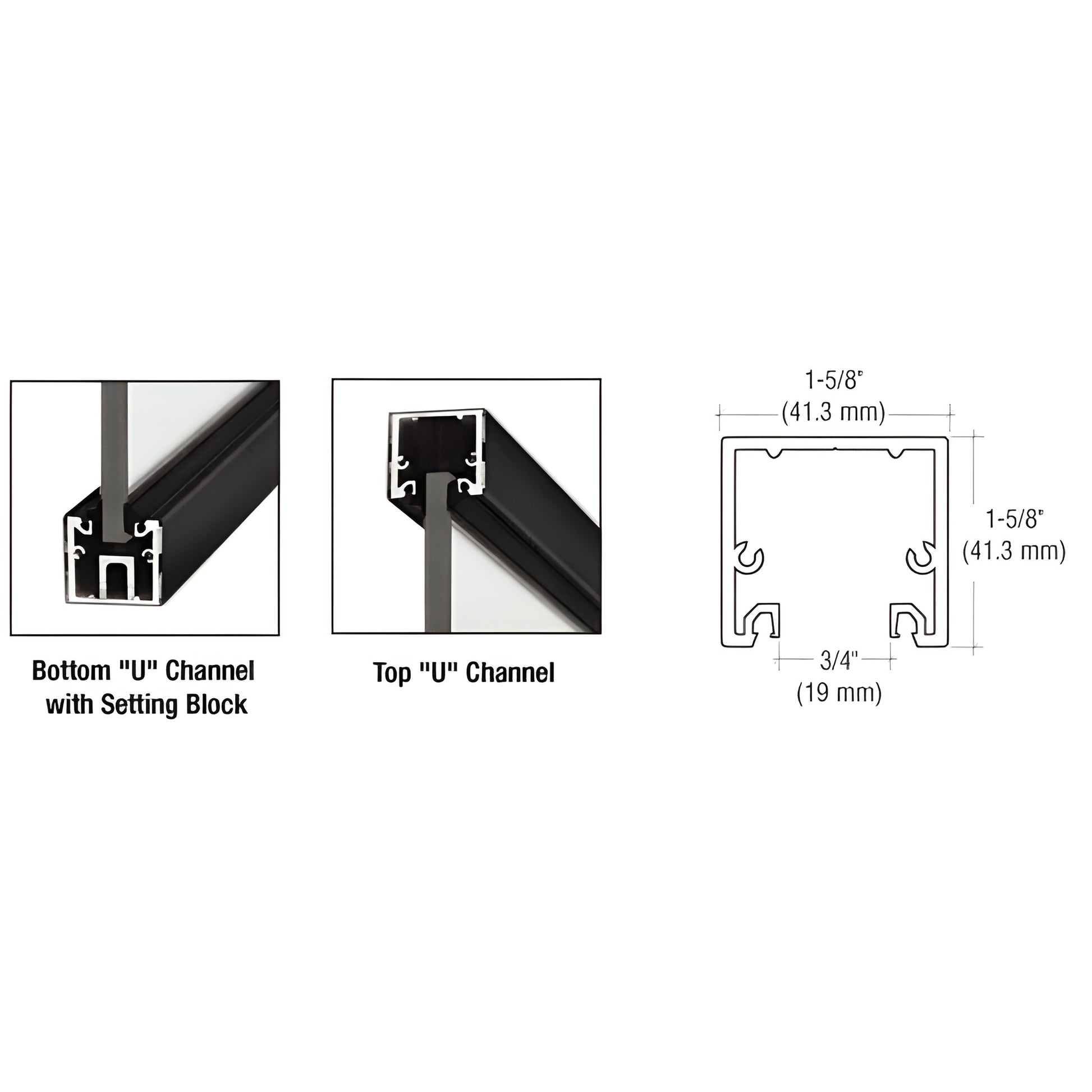

CRL Regular U-Channel with Top Load Roll-In Glazing Gasket is engineered for use with patch hardware, overhead-closer headers for fixed sidelites, and door rail systems. Surface- or recess-mountable, its top-load roll-in glazing gasket securely holds 3/8" or 1/2" glass, making it a reliable U-channel for frameless glass doors, sidelites, and transom applications. SKU: UCMBL3812240.
NOTE: The roll-in glazing gasket is included when ordering for 1/2" (12 mm) glass. For 3/8" (10 mm) glass installations, order the roll-in glazing gasket separately.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor settings.
Order the CRL Regular U-Channel (SKU: UCMBL3812240) for secure, customizable frameless glass installations — contact us to request custom finishes, lengths, or shipping weights.
CAD Drawings - dwg
