CRL Matte Black 240" x 6" Square Sidelite Rail
CRL Matte Black 240" x 6" Square Sidelite Rail
Regular price
$3,063.51 CAD
Regular price
Sale price
$3,063.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR6SMBL3812240
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Floor Mount Saddle Included FMS | 2MBL |
| Glazing Thickness | 3/8 in.,1/2 in. (10 mm,12 mm) |
| Height 6 in. | (152 mm) |
| Width 1-7/8 in. | (48 mm) |
Overview

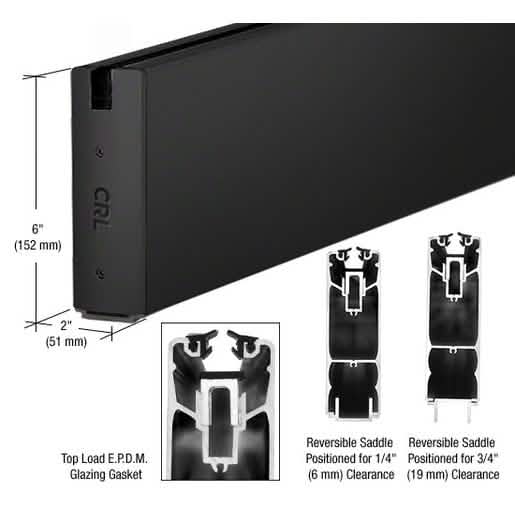

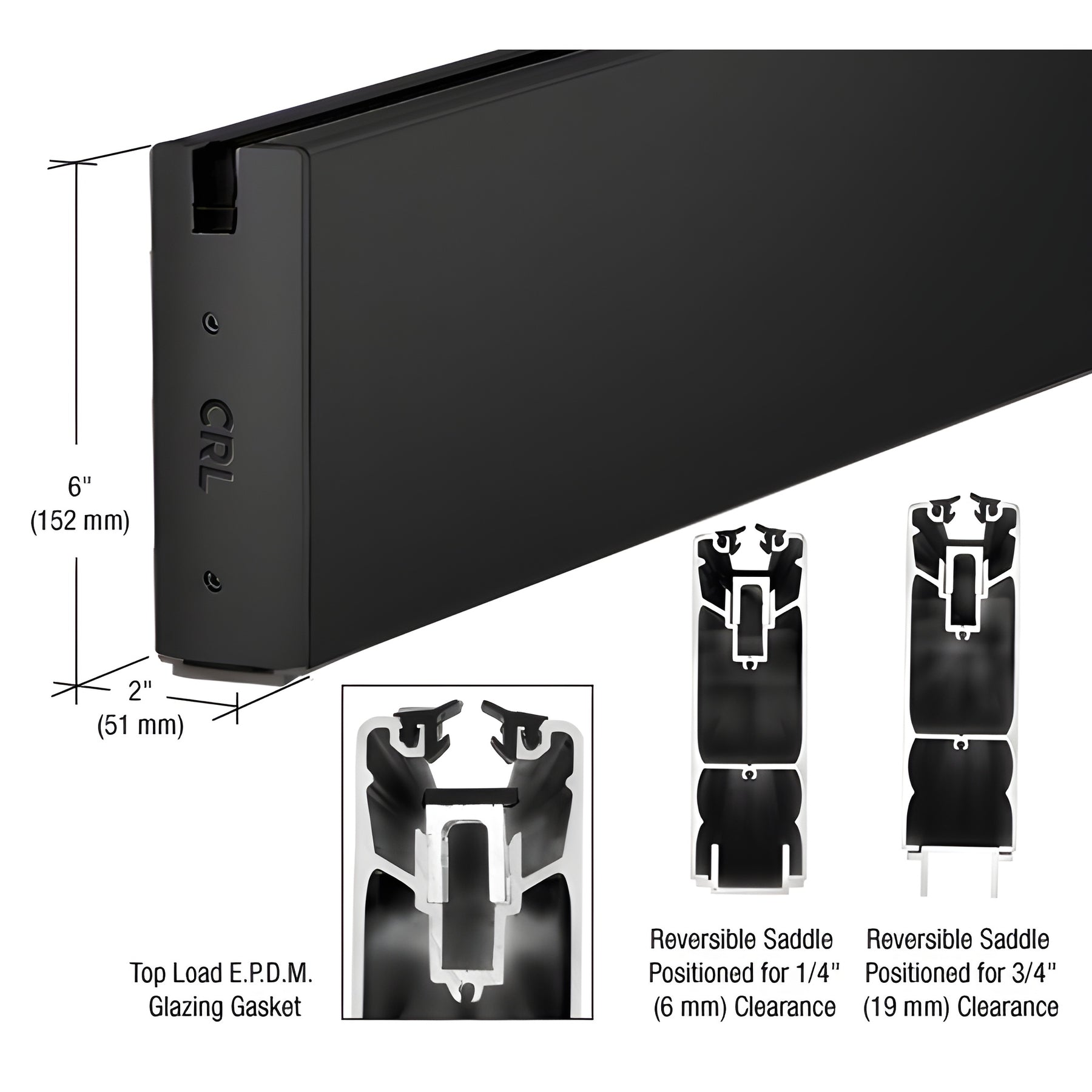

The CRL 6" (152 mm) Square Sidelite Rail is ideal for securing fixed glass panels in office and storefront settings.
These versatile Sidelite Rails, which match our Door Rails, can be used for a seamless top-and-bottom look or paired with various U-Channels.
Installation is straightforward using the 'lift and drop' method with 4" (102 mm) Aluminum and Neoprene Setting Blocks, and glass is secured with a Top Load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in ready-to-ship models from CRL inventory, they come with vinyl for 1/2" (12 mm) glass, while vinyl for 3/8" (10 mm) glass is ordered separately.
Order custom lengths and finishes to suit your specific needs.
These versatile Sidelite Rails, which match our Door Rails, can be used for a seamless top-and-bottom look or paired with various U-Channels.
Installation is straightforward using the 'lift and drop' method with 4" (102 mm) Aluminum and Neoprene Setting Blocks, and glass is secured with a Top Load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in ready-to-ship models from CRL inventory, they come with vinyl for 1/2" (12 mm) glass, while vinyl for 3/8" (10 mm) glass is ordered separately.
Order custom lengths and finishes to suit your specific needs.
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Engineering & Test Reports
