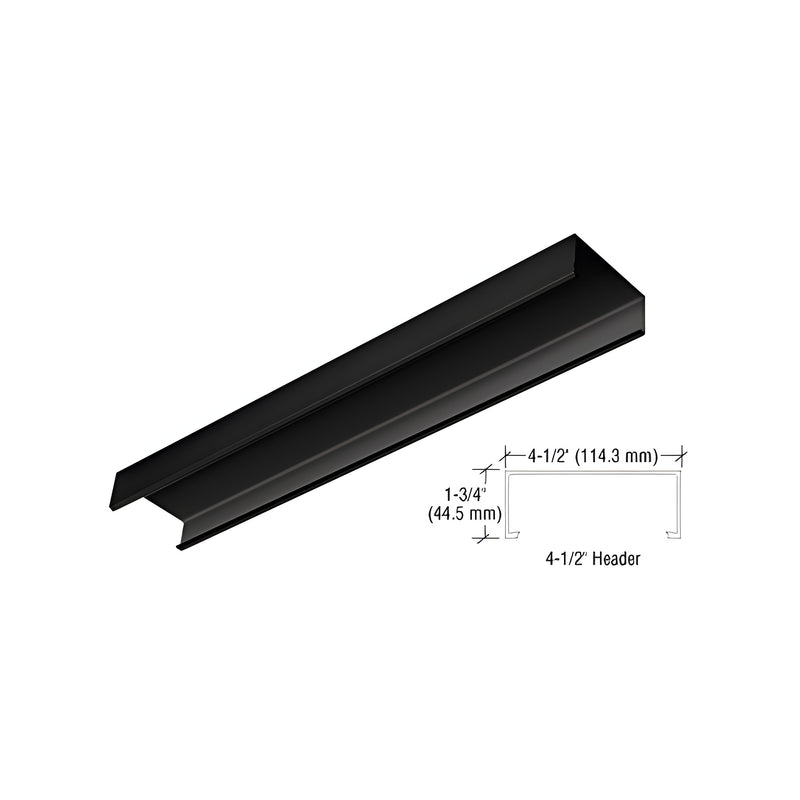

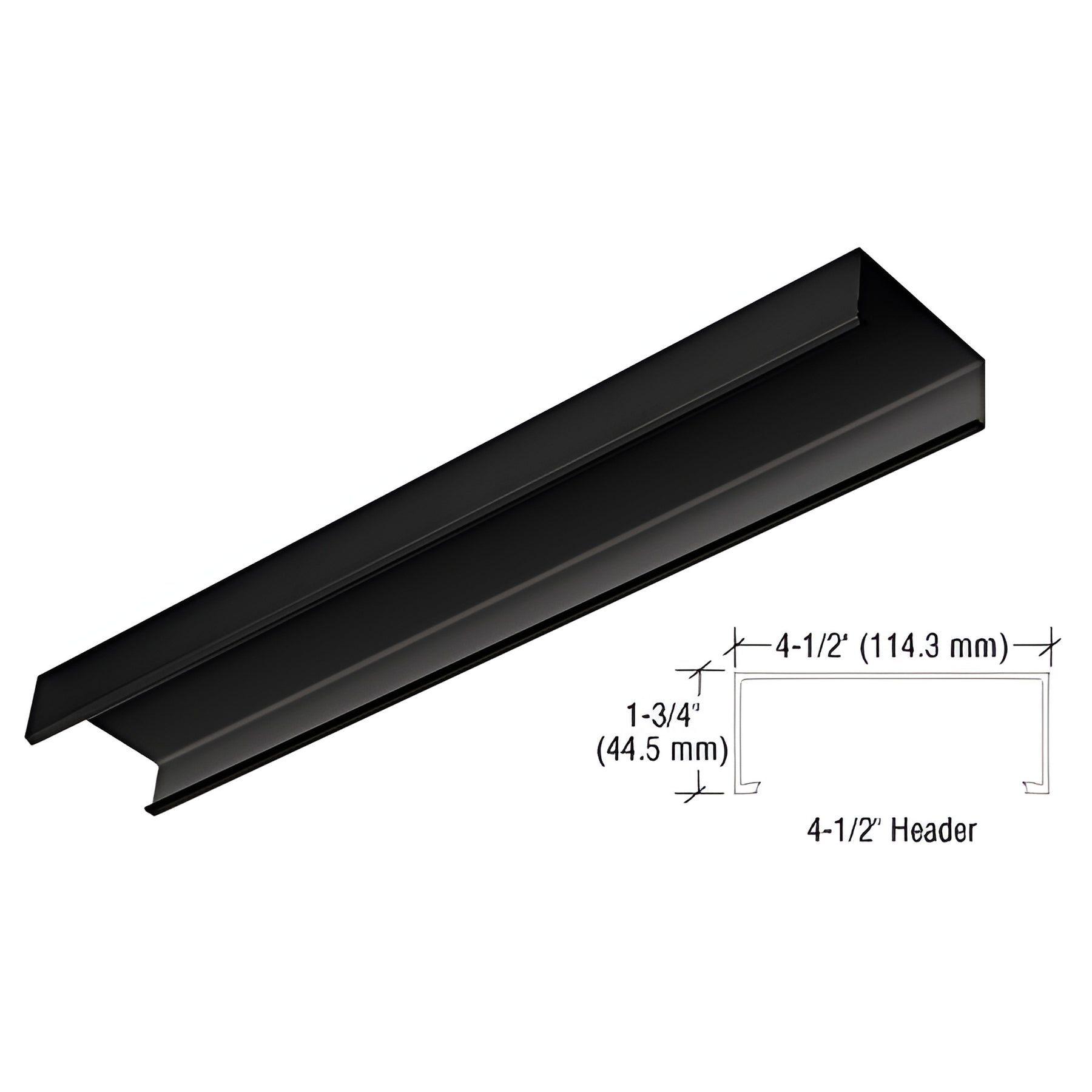

CRL Matte Black 4-1/2" Header Channel 240" for Frameless Glass Doors

• Available sizes: 1-3/4" x 4" and 1-3/4" x 4-1/2"
• Stock lengths: 120" and 240" (3.05 and 6.10 m)
• Two architectural finishes: Satin Anodized and Black Bronze Anodized
• Custom finishes available on special order
• Ready-to-ship from CRL inventory — SKU HCMBL240

CRL stock header components include Header Channel, Flat Snap-In, Cover Plate for Overhead Concealed Door Closer, and Glazing Pocket Snap-In in both 1-3/4" x 4" and 1-3/4" x 4-1/2" sizes. The Flat Snap-In ships with a Roll-In Glazing Gasket for 1/2" (12 mm) glass; for 3/8" (10 mm) glass order the GG38 Series Gasket separately. Ideal for frameless glass doors and commercial storefronts requiring an overhead concealed door closer header channel.

Product Warning:

Stock lengths must ship via common carrier unless specifically cut for UPS shipment.

Key differentiators: long 120"–240" stock lengths for fewer joins, two architectural anodized finishes, ready-to-ship inventory, and compatible glazing gaskets for 1/2" glass. Contact Technical Sales for ordering assistance or custom finishes — order SKU HCMBL240 today.
