CRL Matte Black 4" x 240" Length Square Sidelite Rail

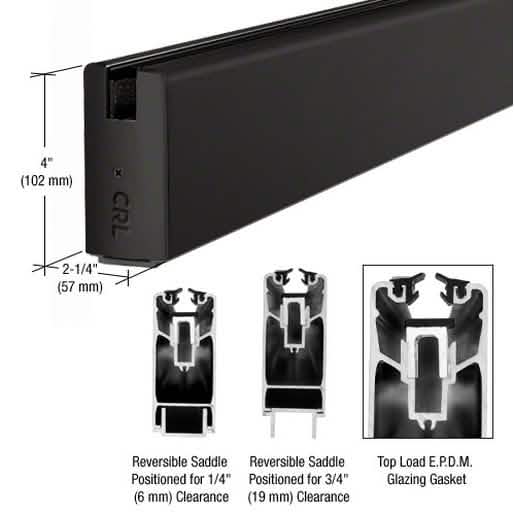

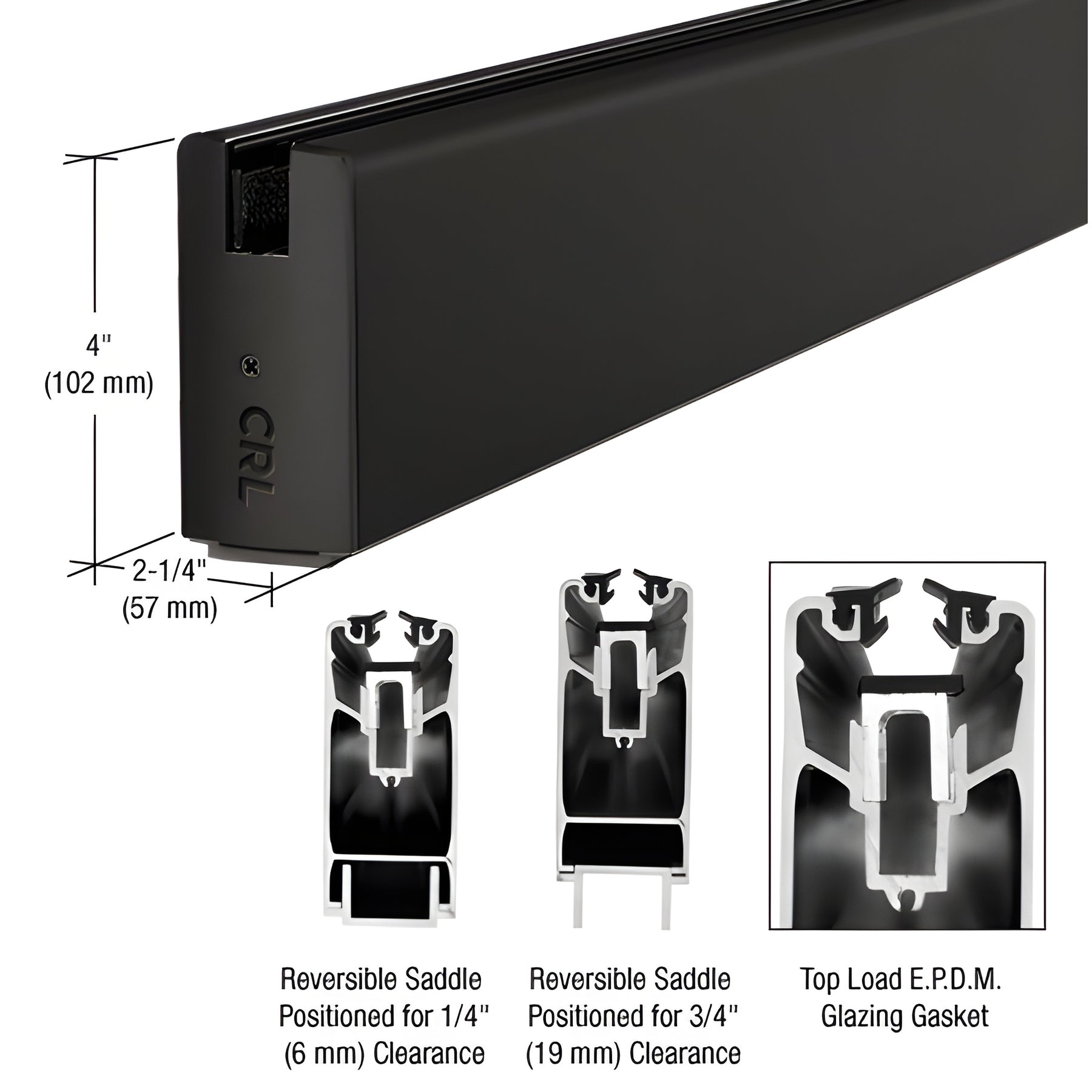

The CRL 4" (102 mm) Square Sidelite Rail is an ideal solution for office and storefront applications, providing secure installation for fixed glass panels.
These Sidelite Rails seamlessly match our Door Rails, offering a cohesive and professional look when used both at the top and bottom or with smaller U-Channels.
With an easy 'lift and drop' installation method using Aluminum and Neoprene Setting Blocks, glass is securely held with a Top Load EPDM Roll-in Glazing Gasket, eliminating the need for silicone sealant.
Available in several finishes and lengths, including 120" (3.05 m) and 240" (6.10 m), these rails can accommodate various door heights and configurations, ensuring an even sightline with matching Door Rails.
For optimal performance, use Monolithic Tempered Glass and order additional components like vinyl for 3/8" (10 mm) glass, Roll-In EPDM Gaskets, and End Caps separately.
Please note that these rails require cutting with a cold saw to preserve the finish.
For more information, contact CRL Customer Service.
