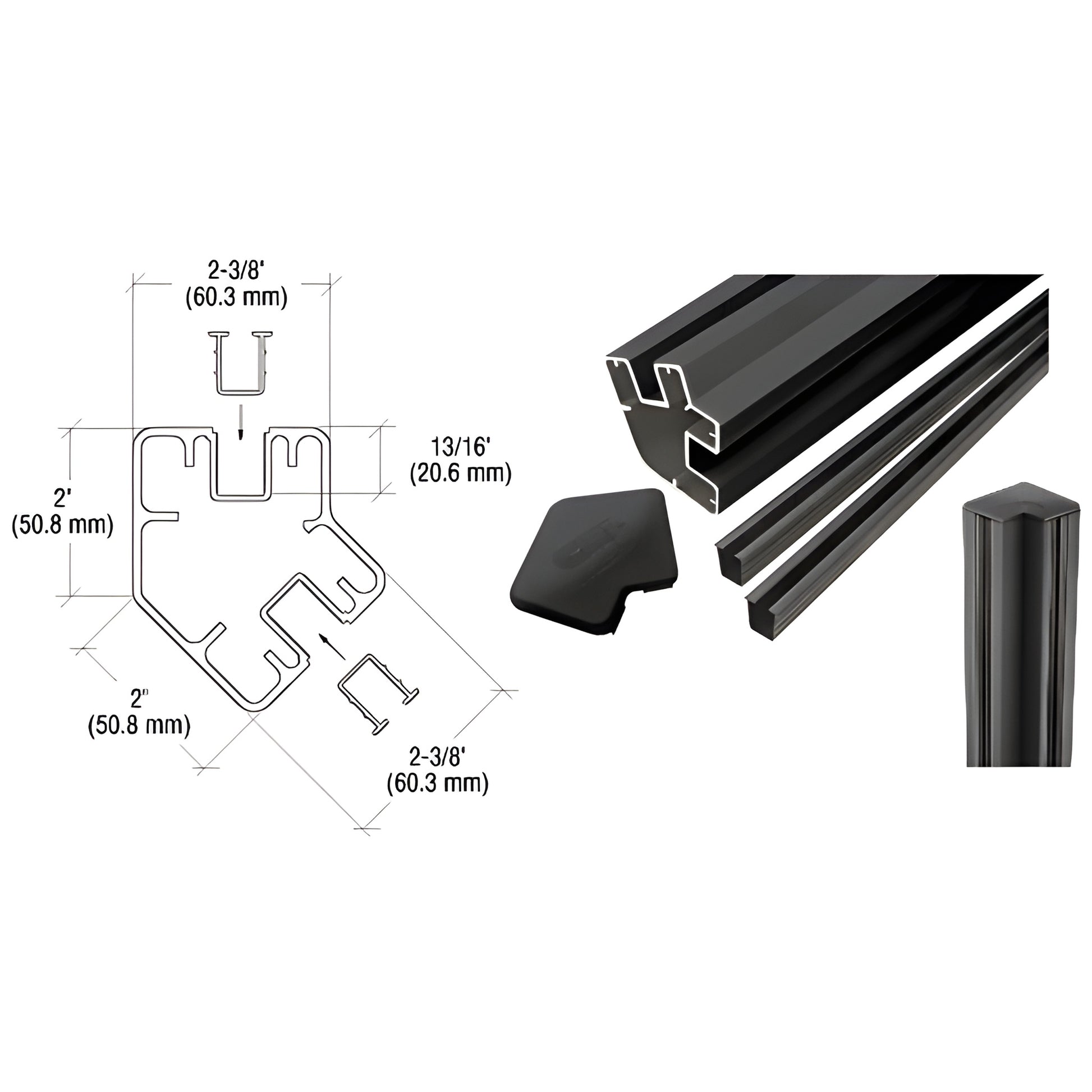

CRL 60" Matte Black 135° Glass Railing Post Kit 2" x 2-3/8"
CRL 60" Matte Black 135° Glass Railing Post Kit 2" x 2-3/8"
Regular price
$250.94 CAD
Regular price
Sale price
$250.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S605KBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Centerline
2 in. (51 mm)
Configuration
Corner
Degree
135
Finish/Color
Matte Black
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
60 in. (1524 mm)
Material
Aluminum
Profile
Rectangular
Width
2-3/8 in. (60 mm)
Overview
- Standard kits include post, top cap, and vinyl
- For 135° glass partitions — joins two panels at a 135-degree angle
- Accommodates 1/4" to 3/8" (6–10 mm) glass dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass wet glazed
- Available in several attractive colors; custom colors available on request
Product: CRL 135° Glass Partition Post Kit — SKU S605KBL. These CRL kits are designed for fabricating posts that join two glass panels at 135 degrees. Ideal for glass partition systems and frameless glass installations where a clean 135-degree connection is required.
Key differentiators: Painted-to-order finishes for matched aesthetics; supports both dry-glazed vinyl applications (6–10 mm) and wet-glazed 12 mm glass; custom color matching available for seamless integration with your design.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 sq ft per panel.
Product warning: All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Need a custom color or exact shipping weight? Contact CRL Customer Service to confirm options and place your order.
Specifications
CAD Drawings - pdf
