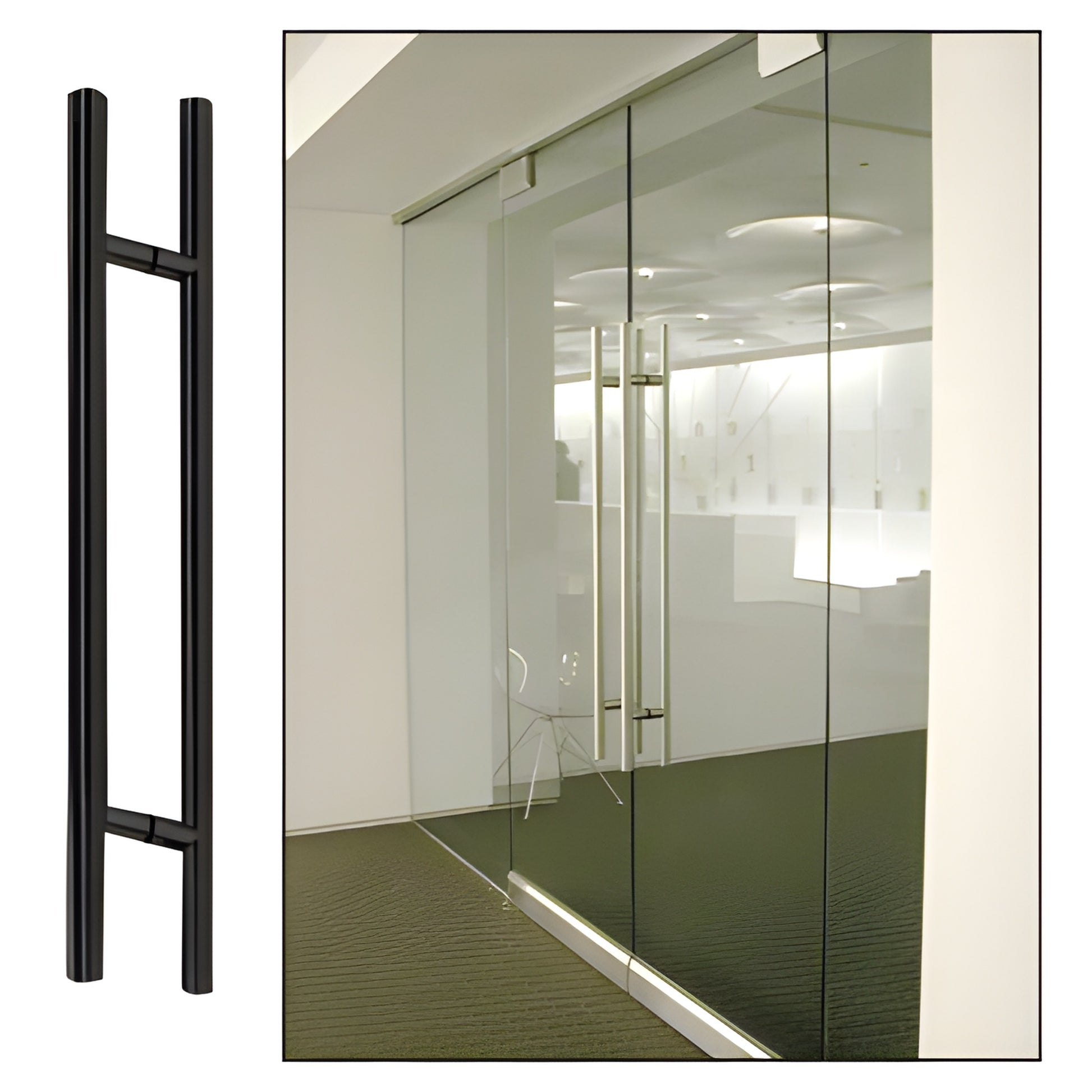

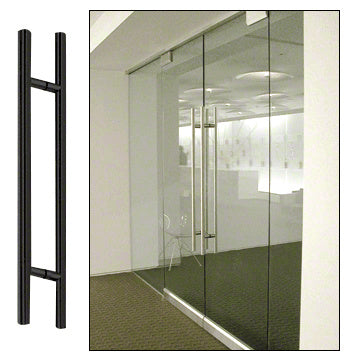

CRL 72 in Matte Black Ladder-Style Double-Sided Glass Door Pull
CRL 72 in Matte Black Ladder-Style Double-Sided Glass Door Pull
Regular price
$1,213.59 CAD
Regular price
Sale price
$1,213.59 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 72LPMBL
Shipping Weight: 19.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 19.18 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (32 mm)
Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
60 in. (1524 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-To-Back
Overall Length
72 in. (1829 mm)
Style Washers
No
Overview
- Eleven Sizes: 24" to 84" (610 to 2134 mm) overall height
- Finishes: Brushed Stainless Steel, Polished Stainless Steel, Matte Black
- Custom lengths, designs, and finishes available on special order
- Made from 304 grade stainless steel for corrosion resistance
CRL Straight Style Ladder Pulls (SKU: 72LPMBL) are premium stainless steel door handles designed for commercial and residential glass doors. Each ladder pull includes two mid-posts and fasteners for back-to-back mounting on 3/8" to 3/4" (10 to 19 mm) tempered glass, or mounting on 1-3/4" (44 mm) thick wood or aluminum doors. Custom ladder pulls can be ordered with additional mid-posts for added support; maximum mid-post spacing is 72" (1.83 m). These stainless steel ladder handles are ideal as heavy-duty tempered glass door pulls and architectural door hardware.
SPECIFICATIONS:
Compatible with 3/8" to 3/4" (10 to 19 mm) thick tempered glass or 1-3/4" (44 mm) thick aluminum or wood doors.
CONSTRUCTION:
1-1/4" (32 mm) diameter 304 grade stainless steel tubing.
GLASS FABRICATION:
Requires two 5/8" (16 mm) diameter holes.
NOTE:
Click Here to view our single-sided ladder pulls in all available sizes and finishes.
Order durable stainless steel ladder pulls for tempered glass doors — contact us to request custom sizes or a quote.
