CRL Matte Black Bottom Patch Fitting for Glass Door 1NT301
Item# PH11CMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Matte Black
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Insert Type
1NT301
Pivot Setback
2-9/16 in. (65 mm)
Type
Bottom
With Insert
Yes
- 2-9/16" (65 mm) Pivot Setback
- For 3/8" or 1/2" (10 or 12 mm) glass

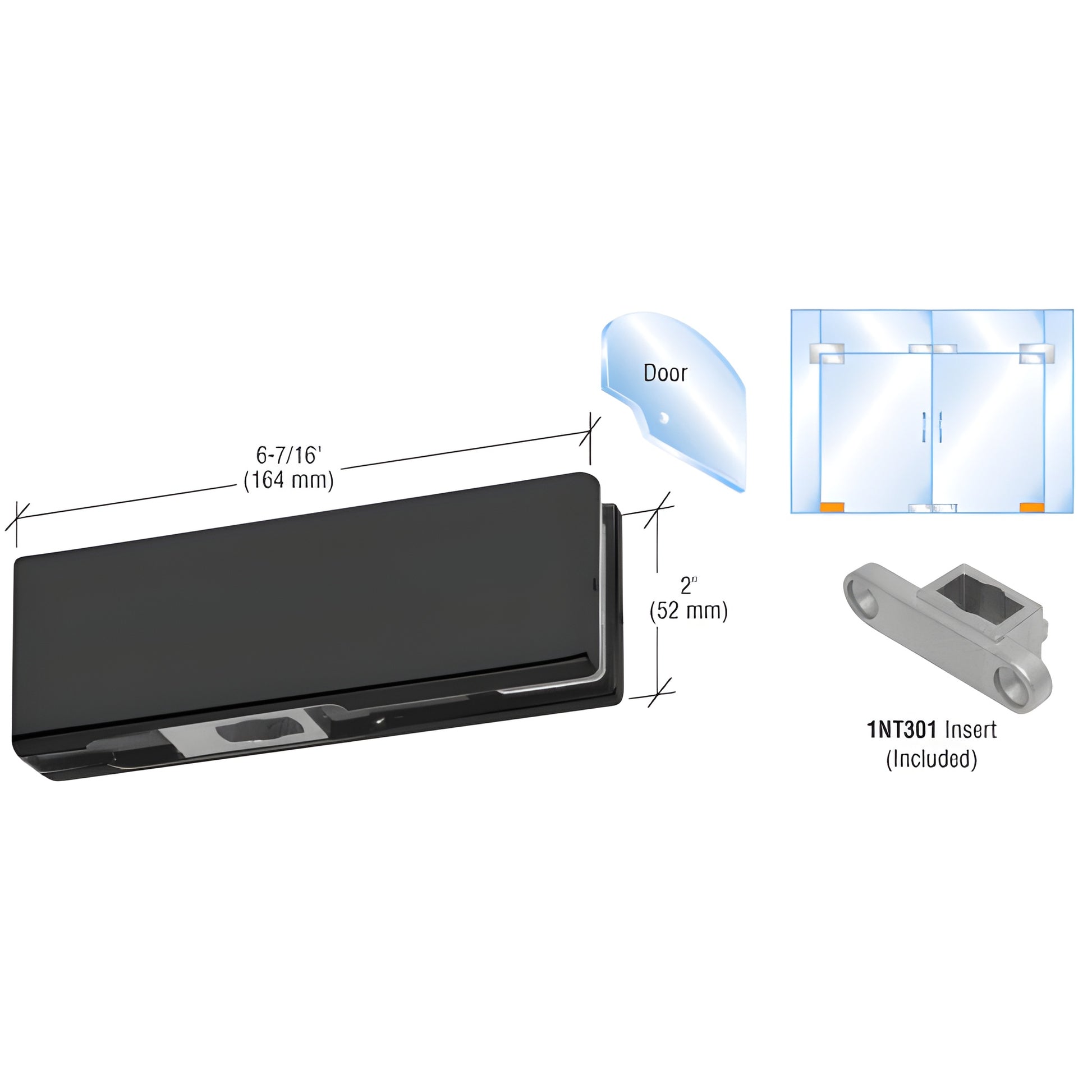

CRL Bottom Door Patch Fitting (SKU: PH11CMBL) includes the Catalog Number 1NT301 insert for use with tapered-spindle floor closers or free-swing pivots. Gaskets allow installation on either 3/8" or 1/2" (10 or 12 mm) glass. Covers available in four standard finishes. Ideal as a bottom door patch fitting for frameless glass doors and glass storefront doors.
This fitting is not for use with laminated glass.
The following guidelines apply when building a 1/2" glass door with this hardware:
Maximum Height: 102" (2.51 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.09 m)
If the door exceeds any of these limits, use full door rails.
GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch
COMES WITH:
Template and instructions
