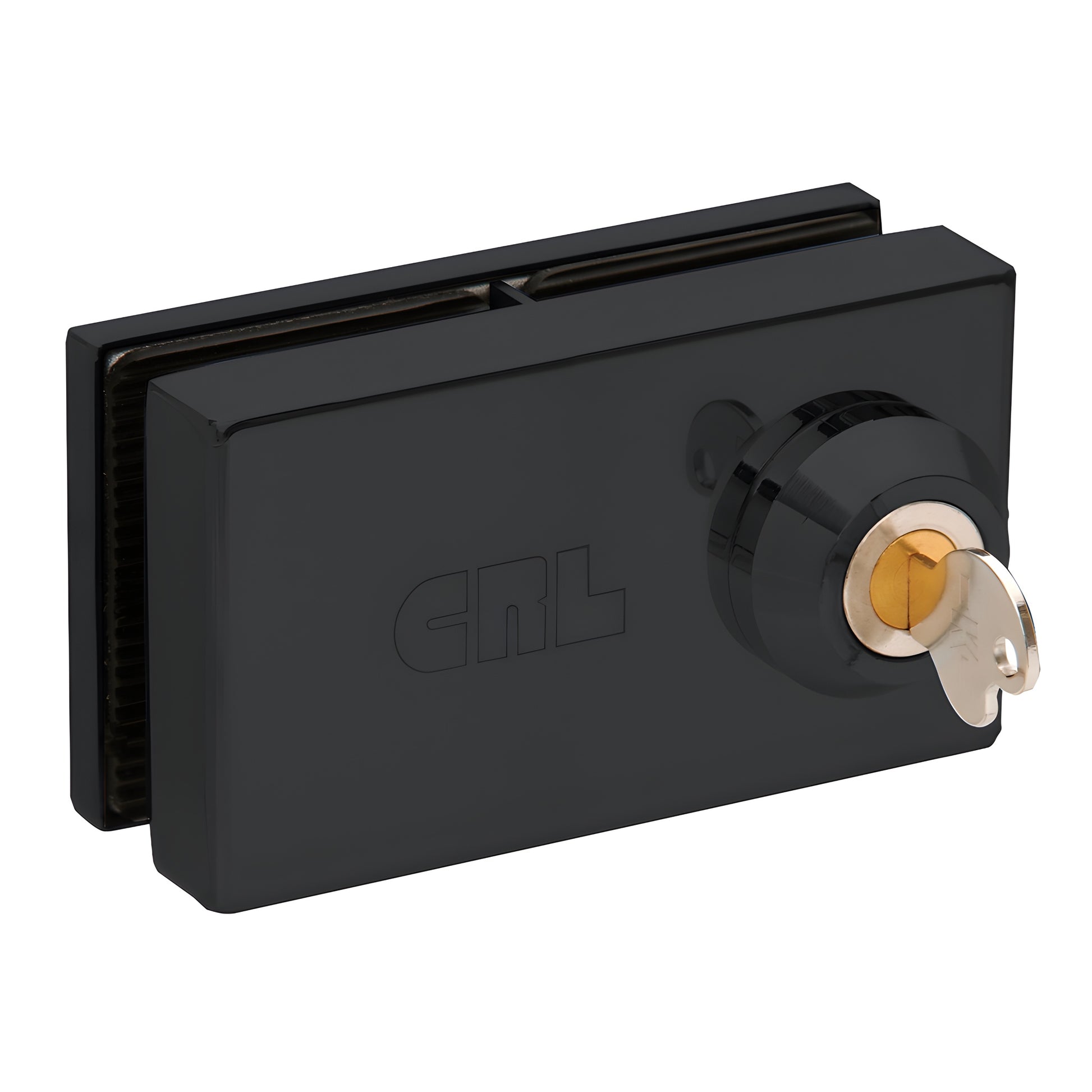

CRL Matte Black Deluxe Patch Lock for 1/2" Frameless Glass Door
CRL Matte Black Deluxe Patch Lock for 1/2" Frameless Glass Door
Regular price
$671.05 CAD
Regular price
Sale price
$671.05 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 01P12MBL
Shipping Weight: 2.27 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.27 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glazing Thickness
1/2 in. (12 mm)

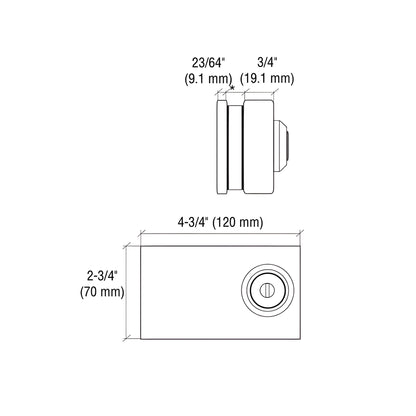

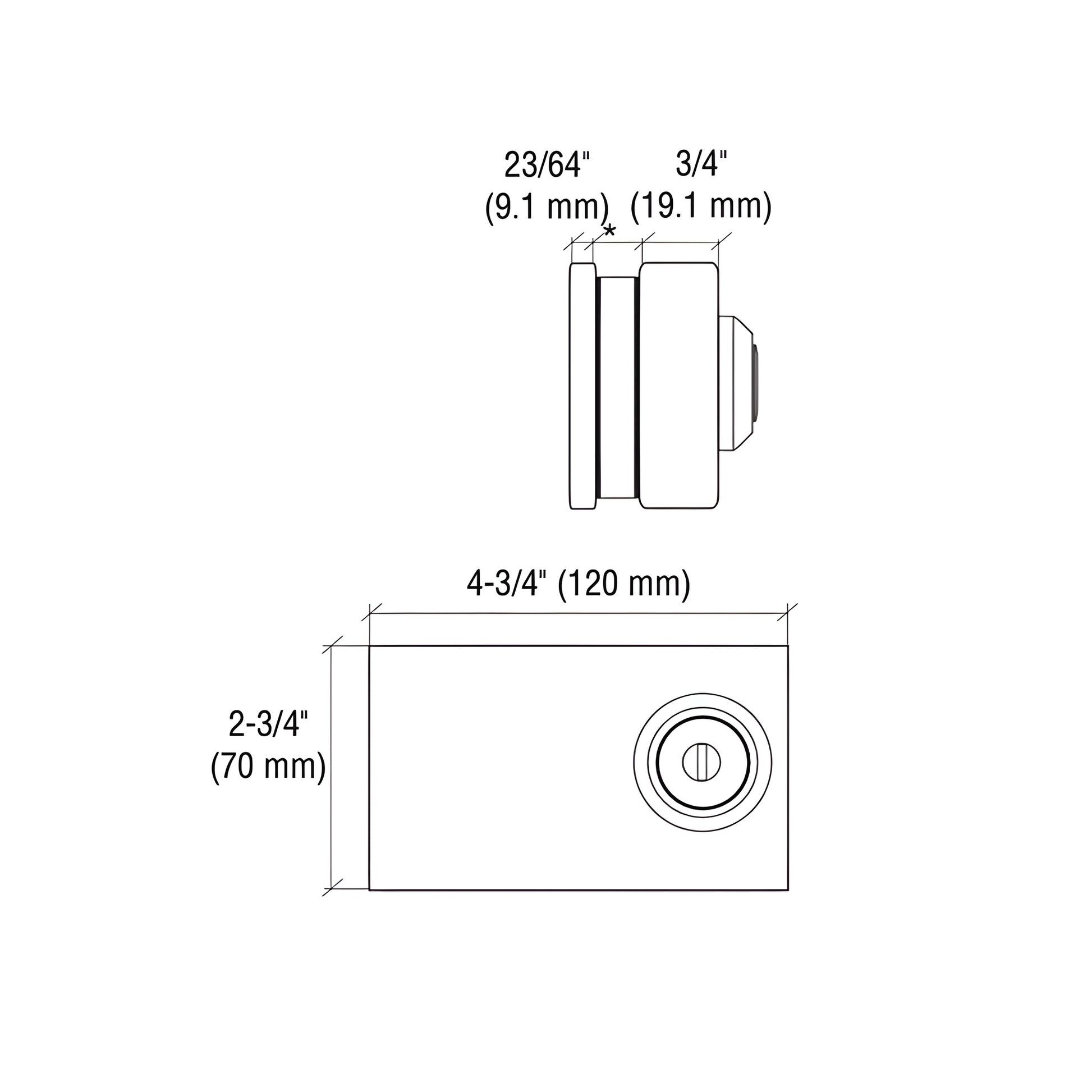

Height
2-3/4 in. (70 mm)
Width
4-3/4 in. (121 mm)
Overview
- Does Not Require Glass Fabrication
- For 1/2 in. (12.8 mm) Glass
- Use Monolithic Tempered Glass
This CRL Deluxe Patch Lock (SKU 01P12MBL) is a slip-on patch lock designed for 1/2" (12 mm) monolithic tempered glass doors. The easy slip-on installation requires no glass fabrication and allows removal during business hours for a clean, frameless appearance. Cylinder access is from one side only and the lock ships with three keys, keyed random—providing secure, low-profile locking for frameless glass door applications.
NOTE: Replacement keys for 01P and 03P Series locks are available; Cat. Nos. 01PKEY1, 01PKEY2, 01PKEY3 and 01PKEY4.
SPECIFICATIONS:
For Use With: 1/2" (12 mm) Glass Doors
No Glass Fabrication Required
Recommended Gap Between Panels: 3/16" (5 mm)
Order SKU 01P12MBL for a no-fabrication, slip-on patch lock solution for frameless tempered glass doors—contact CRL Customer Service to purchase or for more information.
