CRL Laguna Series Matte Black Double Roller Sliding Glass Door Mount

• Intended for glass mounting—3/8" or 1/2" (10 or 12 mm) tempered glass only (no laminated glass)
• New anti-lift double roller design for secure top-mounted sliding doors
• Alloy 316 stainless steel construction for corrosion resistance
• Assembly contains all necessary hardware to install a single sliding glass door
• Spanner wrench for installation sold separately

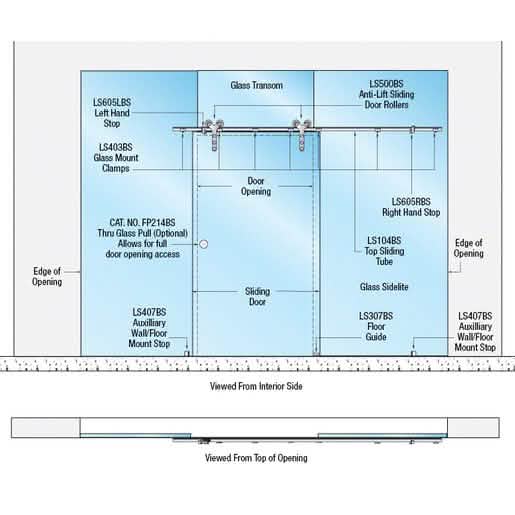

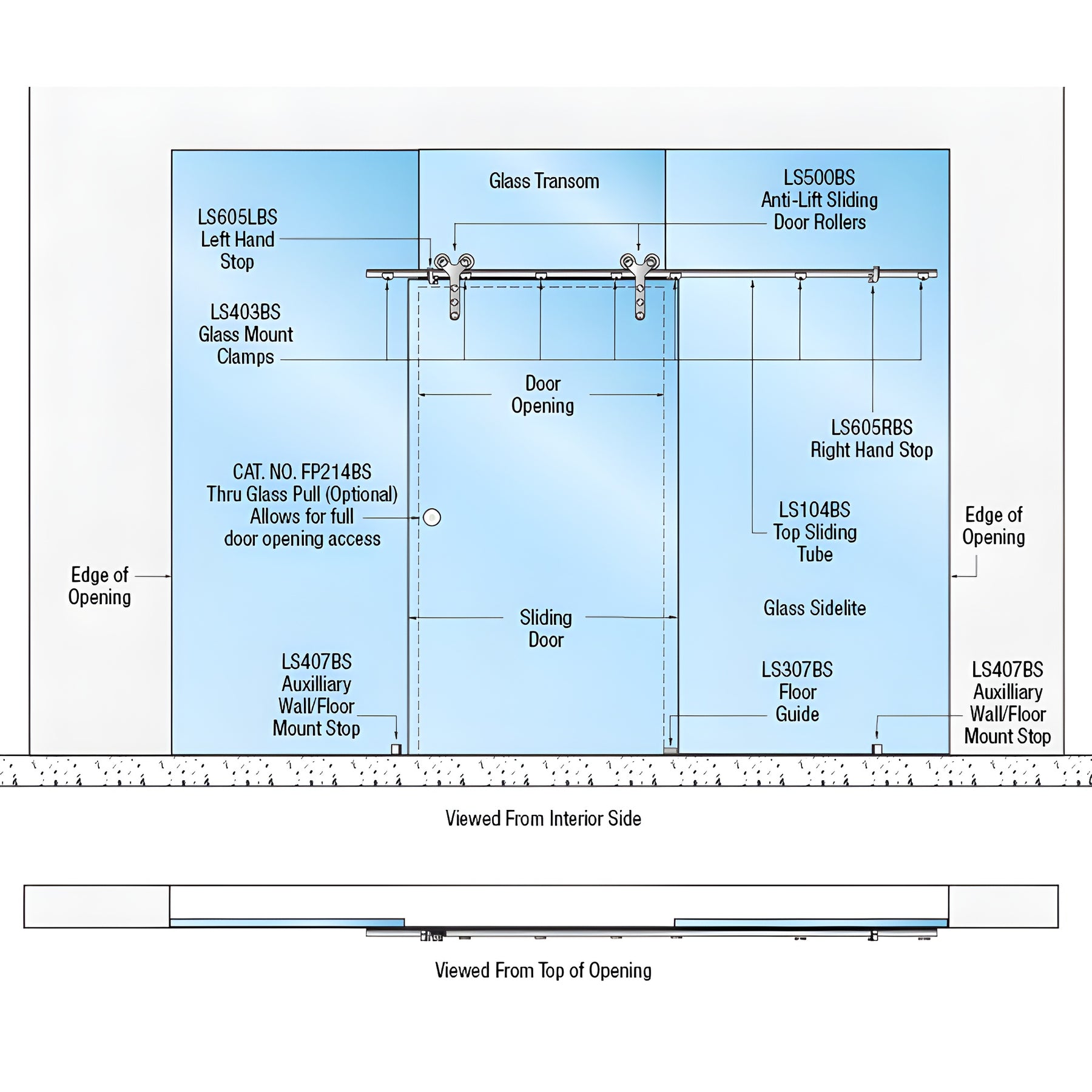

CRL Double Roller Laguna Series Glass Mount Single Slider Kit (SKU: LSGM26MBL) contains the hardware needed (excluding tempered glass) to install a single sliding door in an all-glass opening with a wall at one end, a glass transom above, and a fixed glass panel beside the door. Ideal for glass mount sliding door installations requiring a corrosion‑resistant top roller system.

The anti-lift top rollers include both surface-mount and flush-mount glass fittings. Rollers provide ±1/8" (3.2 mm) vertical adjustment for precise door alignment. Use only 3/8" or 1/2" tempered glass; laminated glass is not permitted. For complete glass fabrication details and drawings, contact our Technical Sales Department.

Door system limitations
Maximum door weight: 220 lbs (100 kg)
Minimum door width: 37-13/16" (960 mm)
Maximum door width: 53-9/16" (1.36 m)
Maximum door height: 98-7/16" (2.50 m)
Maximum track length: 104" (2.64 m)

Note: Bi-parting (double) doors are not possible with this kit.

Each kit contains:

• Two CRL Laguna Series anti-lift top rollers with glass fittings
• One CRL Laguna Series top sliding tube with end caps — 104" (2.64 m)
• One CRL Laguna Series top sliding tube wall-mount end cap (fastener to wall not included)
• Six CRL Laguna Series top sliding tube glass-mount clamps
• Two CRL Laguna Series door stops (left and right)
• One CRL Laguna Series bottom floor guide

Product warning

Structural disclaimer: Customers must consult a structural engineer to confirm suitability for the intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.
