Product Details
- Low Profile Body Design for Use with 1/2" (12 mm) Glass
- Supplied with ANSI A156.2 Grade 1 or Grade 2 Lever Lock
- Non-Handed and Reversible
- Five Architectural Finishes Available
- Four Function Options
- ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive Pressure
- ANSI A117.1 and A.D.A. for Barrier-Free Accessibility
- C-UBC California Amended Uniform Builders Code – 2001
- NFPA-80 National Fire Protection - 1999
- NFPA101 National Fire Protection - Life Safety – 2000 Product Warning: Glass Fabrication is required. Installation Instructions and Fabrication Template Included.

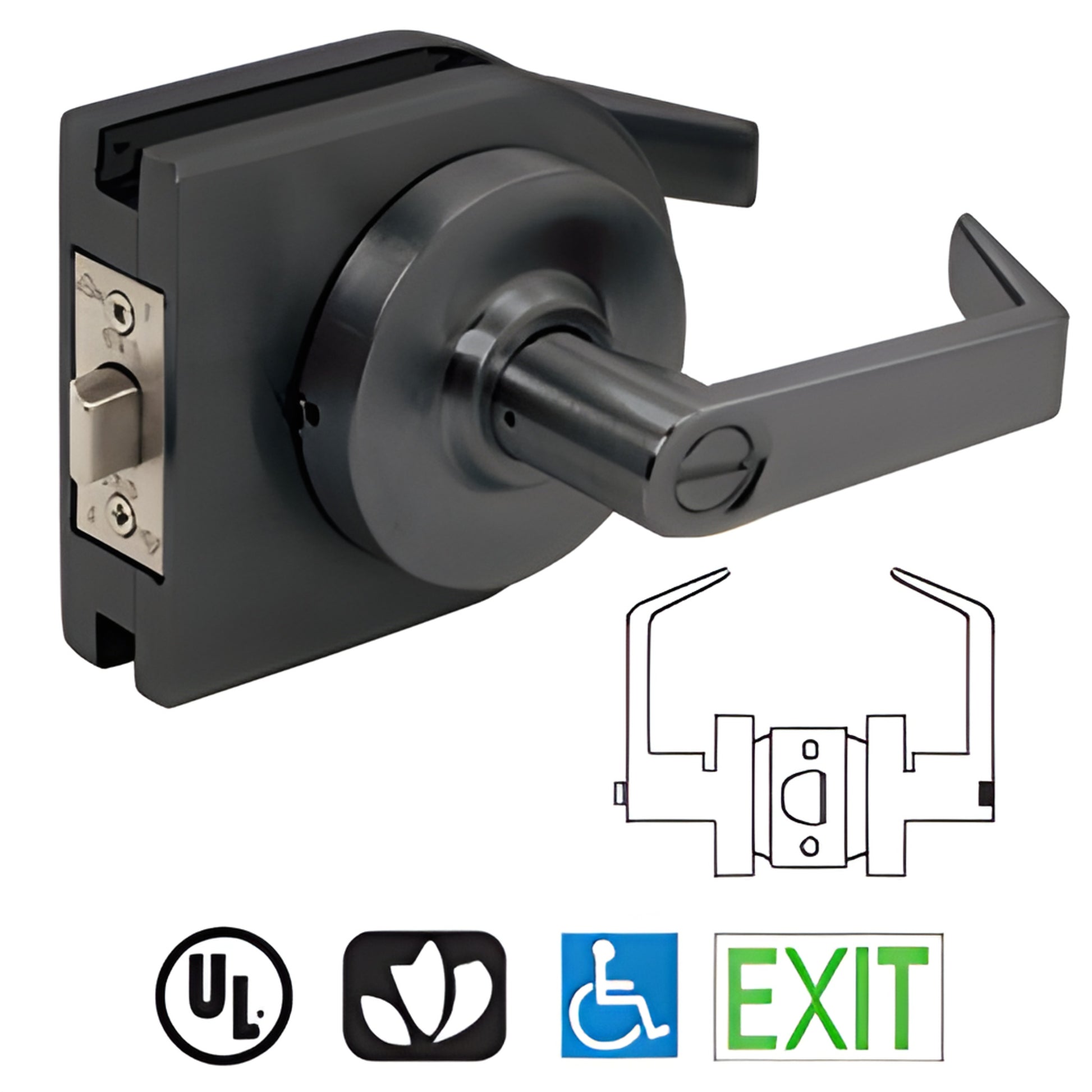

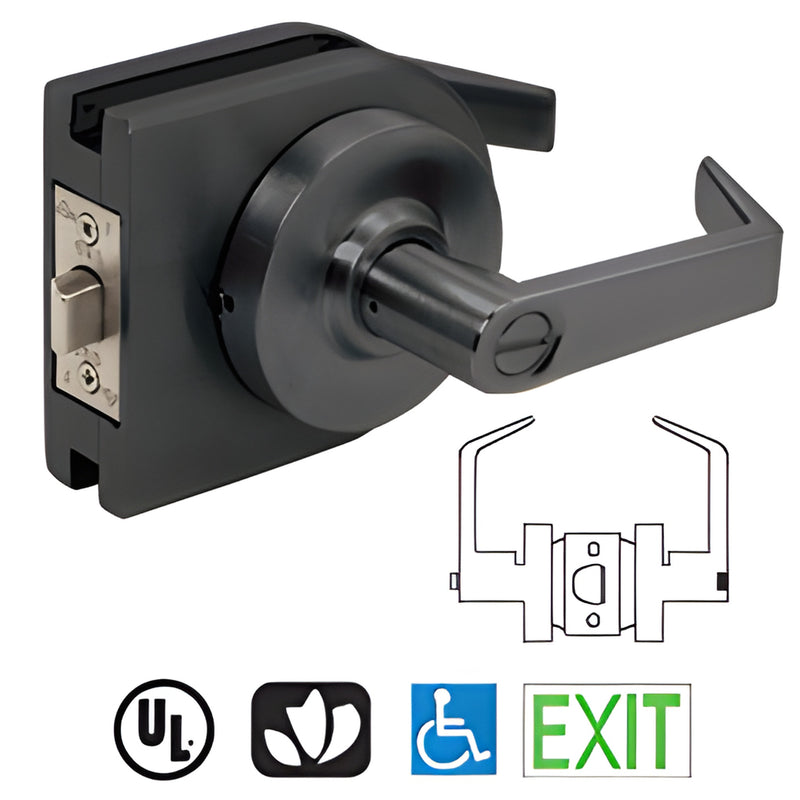

CRL's Lever Lock Housings are easy-to-install and come complete with Housing and Lever Lockset for 3/8" or 1/2" (10 or 12 mm) thick glass. The Entrance and Storeroom models are available with either a Schlage® 'C' 6-Pin keyway or a 7-Pin Small Format Interchangeable Cores (SFIC). An ANSI 1-1/4" x 4-7/8" (32 x 124 mm) Strike is included.
ANSI A156.2 Grade 1. UL10C and UBC 7.2 for Positive PressureANSI A117.1 and A.D.A. for Barrier-Free AccessibilityC-UBC California Amended Uniform Builders Code – 2001 NFPA-80 National Fire Protection - 1999NFPA101 National Fire Protection - Life Safety – 2000
Product Warning:
Glass Fabrication is required. Installation Instructions and Fabrication Template Included.
