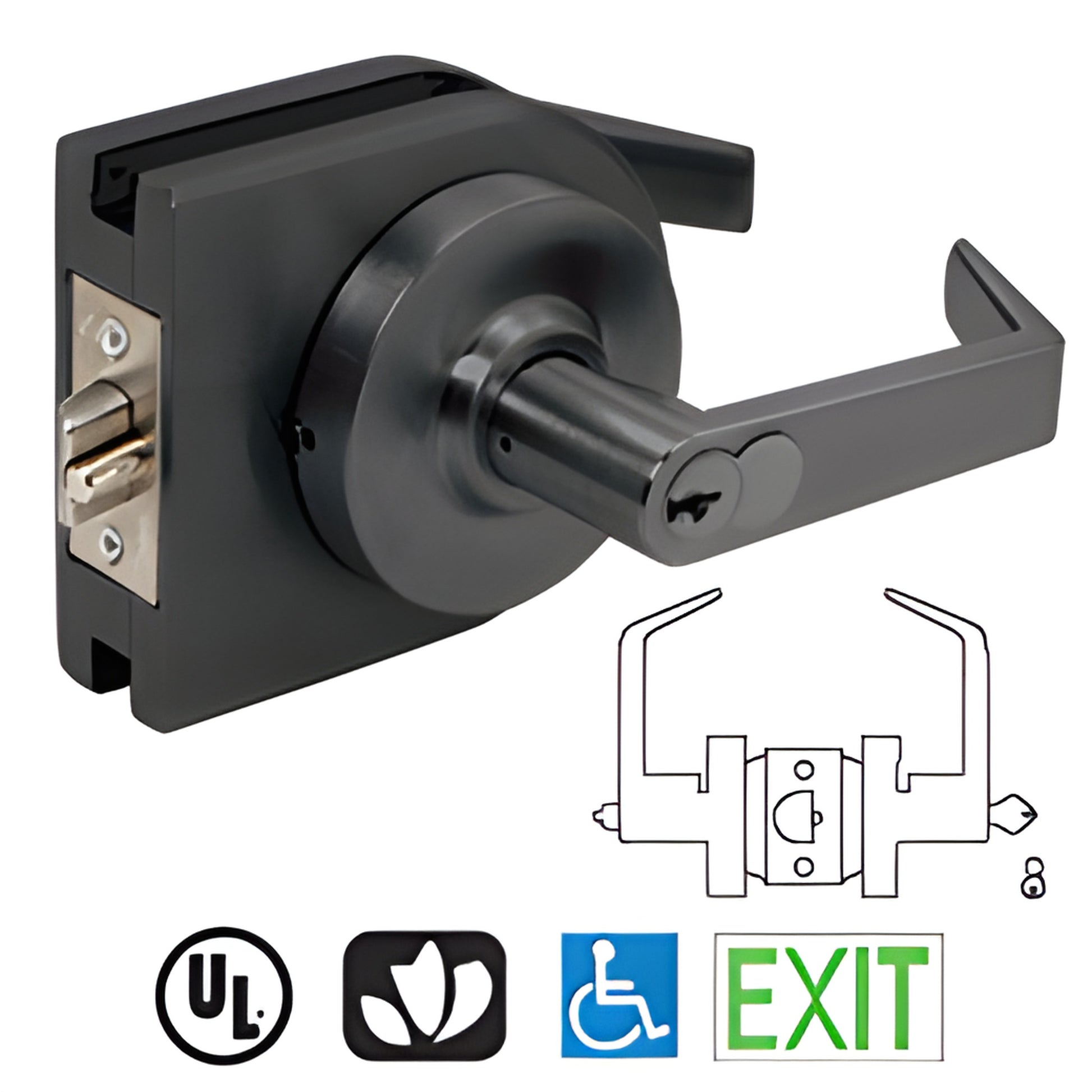

CRL Matte Black Grade 2 7-Pin SFIC Lever Lock Housing - Entrance

• Low-profile body design for use with 3/8" or 1/2" (10 or 12 mm) glass
• Supplied with ANSI A156.2 Grade 1 or Grade 2 lever lockset
• Non-handed and reversible for left or right glass doors
• Five architectural finishes available
• Four function options for entry, storeroom, passage, and more

CRL's Lever Lock Housings (SKU: LH57MBL) are easy-to-install complete housings with lever lockset designed for 3/8" or 1/2" (10 or 12 mm) thick glass doors. Entrance and storeroom models are offered with either a Schlage® 'C' 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Ideal for frameless glass door applications and commercial glass door hardware upgrades.

• ANSI A156.2 Grade 2. UL10C and UBC 7.2 for positive pressure
• ANSI A117.1 and A.D.A. compliant for barrier-free accessibility
• C-UBC California Amended Uniform Building Code – 2001
• NFPA-80 National Fire Protection – 1999
• NFPA 101 Life Safety – 2000


Product Warning:

Glass fabrication is required. Installation instructions and fabrication template included.


For specification assistance or to order LH57MBL lever lock housings for glass doors, contact CRL or add to cart now.
