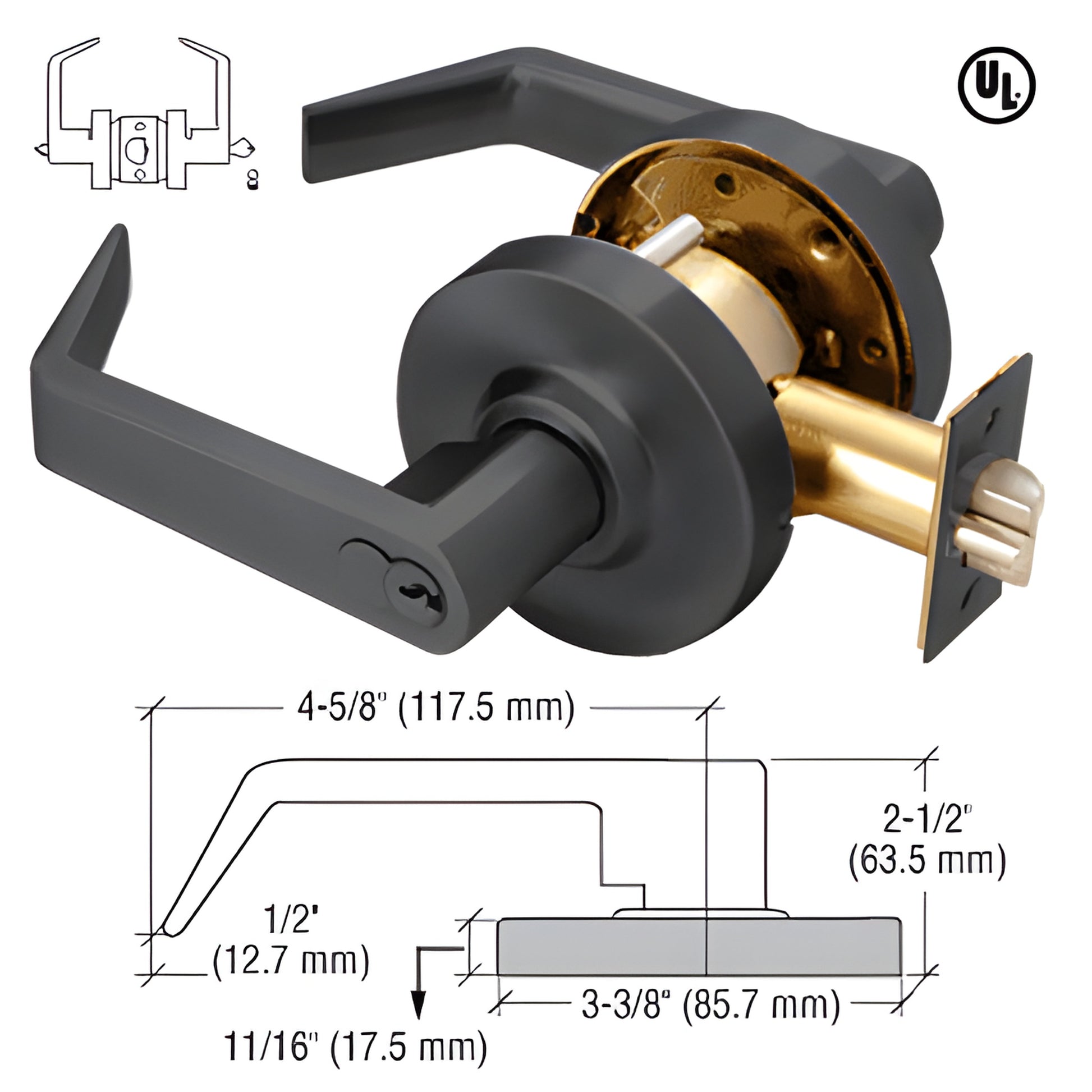

CRL Matte Black Commercial Grade 2 Entrance Lever Lockset 7-Pin SFIC
CRL Matte Black Commercial Grade 2 Entrance Lever Lockset 7-Pin SFIC
Regular price
$183.26 CAD
Regular price
Sale price
$183.26 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D67ENTMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
7 Pin SFIC
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
Overview
- 7-Pin SFIC Keyway or Schlage® C 6-Pin
- ANSI A156.2 Grade 2 commercial lever lockset
- 3-Year Warranty
- UL Listed — 3-hour fire rating
These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible, designed for commercial doors. They fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) with a 2-3/4" (70 mm) backset and include an ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike. Choose either a Schlage® "C" 6-pin keyway or a 7-pin Small Format Interchangeable Core (SFIC) for flexible master keying and rapid core changes.
ENTRANCE FUNCTION DESCRIPTION: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always allows free egress.
SKU: D67ENTMBL
Order the D67ENTMBL commercial lever lockset now for reliable, fire-rated access control and flexible keying options.
