CRL
CRL Matte Black Schlage® 6-Pin Grade 2 Heavy-Duty Entry Lever Lockset
CRL Matte Black Schlage® 6-Pin Grade 2 Heavy-Duty Entry Lever Lockset
Regular price
$139.96 CAD
Regular price
Sale price
$139.96 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D65ENTMBL
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.02 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Backset
2-3/4
Category
Door Accessories
Certification
ANSI A156.2 Grade 2
Door Thickness Range
1-3/8" To 1-3/4"
Door Type
Aluminum, Wood, Hollow Metal
Finish/Color
Matte Black
Fire Rating Hour
3
Function
Entrance
Handing
Non Handed and Reversible
Handle Length
4-5/8
Includes
Strike
Keyway
'C' 6-Pin
Operation Type
F109 Entrance Lever
Projection
2-1/2
Rosette Base Height
11/16
Rosette Base Width
3-3/8
Strike Height
4-7/8
Strike Width
1-1/4
Type
Standard Duty Lever Lockset
UL Listed
Yes
Overview
- Schlage® 'C' 6-Pin Keyway
- ANSI A156.2 Grade 2
- 3 Year Warranty
- UL Listed (3‑hour fire rated)

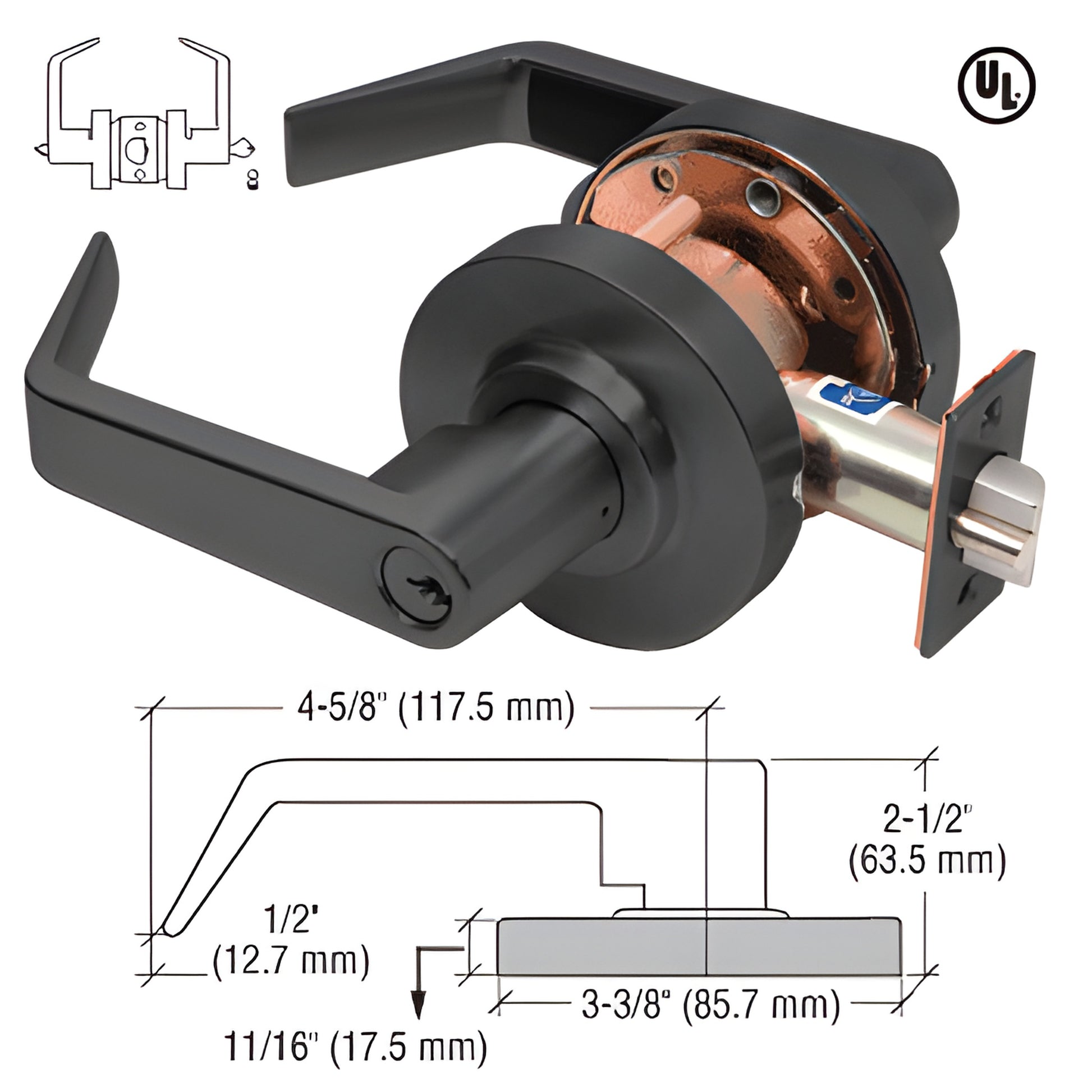

These CRL heavy-duty commercial Grade 1 and 2 lever locksets are non-handed and reversible, designed for commercial doors. UL Listed with a 3-hour fire rating, they fit door thicknesses from 1-3/8" to 1-3/4" (35–45 mm) and use a 2-3/4" (70 mm) backset. Choose Schlage® 'C' 6-pin keyway or 7-pin Small Format Interchangeable Core (SFIC). Includes ANSI 1-1/4" x 4-7/8" (32 x 124 mm) strike for secure installation.
ENTRANCE FUNCTION DESCRIPTION: Pushing the inside button locks the outside trim and requires a key to unlock. Pushing and twisting the button locks the outside lever and always requires a key to unlatch. Inside lever always provides free egress.
Key differentiators:
- Heavy-duty commercial lever lockset — ideal for offices, multi-family, and institutional doors
- UL Listed 3‑hour fire rating for enhanced safety and code compliance
- Non-handed, reversible design for easier installation
- Available with Schlage® C 6‑pin keyway or 7‑pin SFIC for master key systems
SKU: D65ENTMBL
Shop now to get this heavy-duty, UL-listed commercial lever lockset for reliable security and code-compliant fire protection.
Specifications
Installation Instructions
