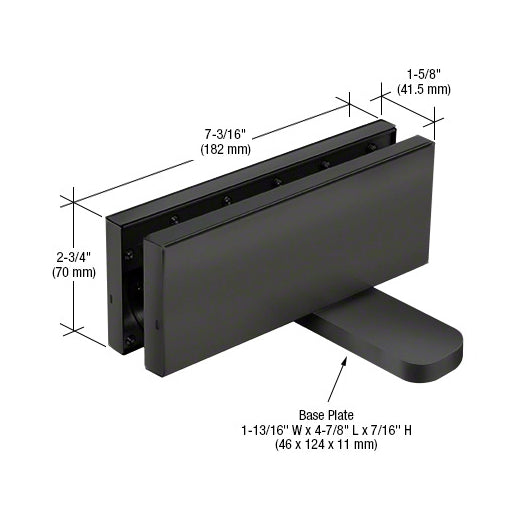

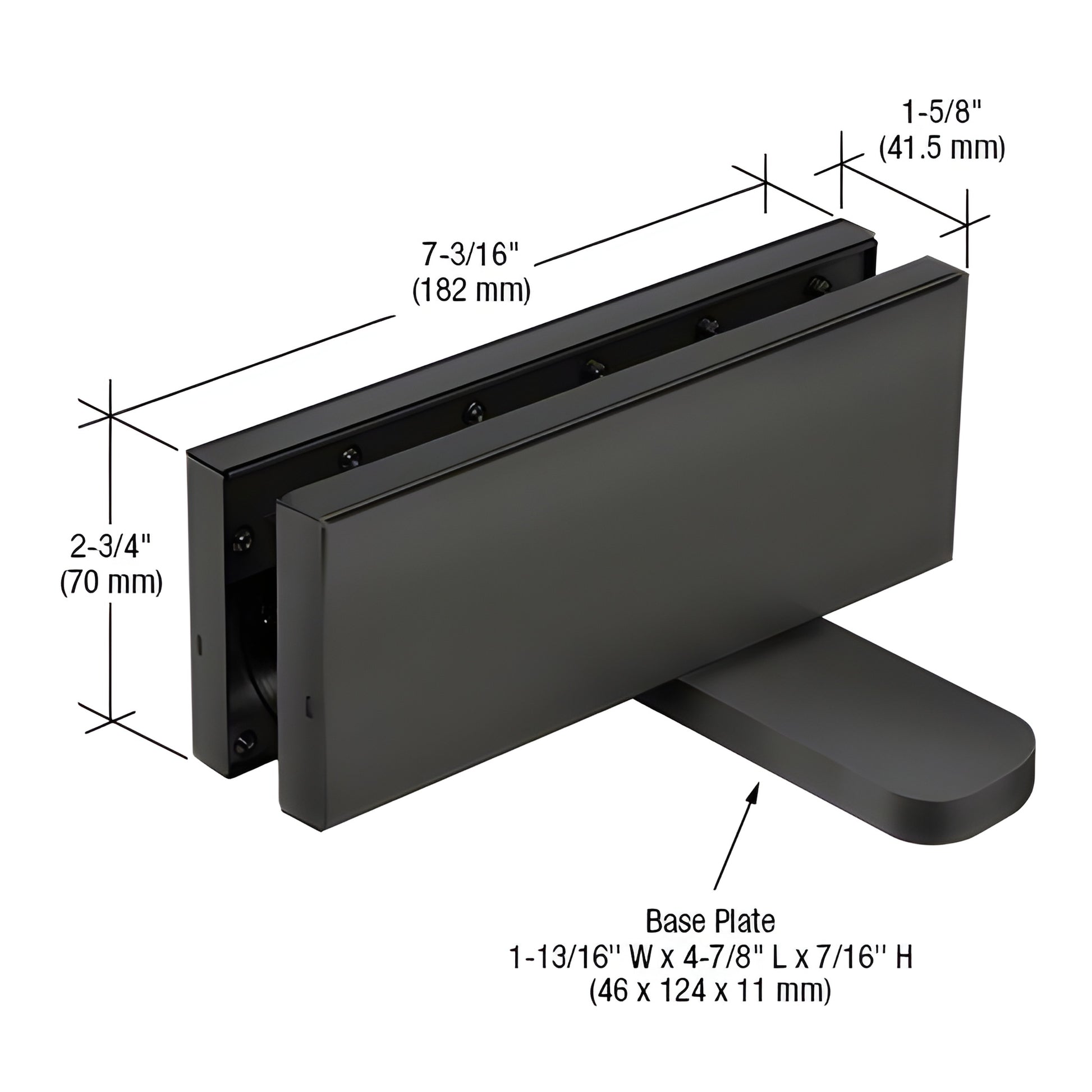

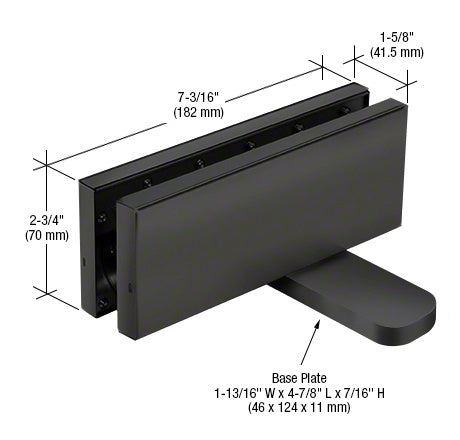

CRL 380HMBL Matte Black Hydraulic Patch Fitting, 2-9/16″ Setback (90° Hold-Open)

5 Degree Pre-Set

No

Adjustable

No

Back Plate

Full

Design Style

Squared

Enclosure Type

Corner, Niche, Bathtub, Tailor Made Solutions

Finish/Color

Matte Black

Glazing Thickness

3/8 in. to 1/2 in. (10 mm to 12 mm)

Height

3-15/16 in. (100 mm)

Material

Brass

Maximum Clamping Screw Torque

60 lbf.in (677.9 cN.m)

Maximum Door Weight - 2 Hinges

110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges

140 lbs. (63.5 kg)

Maximum Door Width

36 in. (914 mm)

Mounting Type

Wall Mount

Opening Style

Swing(side)

Positive Close

No

Self-Centering

Yes

Series

Vienna

Width

2-1/4 in. (57 mm)

CRL Vienna 037 Matte Black Wall Mount Shower Hinge with Full Back Plate

Bring bold elegance and heavy-duty performance to your frameless shower with the CRL Vienna 037 Matte Black Wall Mount Shower Hinge. Engineered for strength and reliability, this solid brass hinge supports 3/8" to 1/2" (10 to 12 mm) thick monolithic tempered safety glass, making it the ideal solution for wider, heavier shower doors.

With a durable full back plate and a sleek matte black finish, the Vienna 037 Hinge offers both structural support and contemporary design appeal. It features CRL's signature self-centering action within 15° of the closed position, ensuring smooth, secure operation every time. Each hinge comes equipped with a reversible 5° pivot pin, factory-set at 90°, but easily rotated to 85° for a tighter inward close.

What sets the Vienna Hinge apart is its dual-template mounting capability. For standard "mouse-ears" cut-outs, leave the two internal steel pins in place. For greater adjustability, simply remove the pins to allow compatibility with CRL's rectangular cut-out or some competitive hinge cut-outs.

Key Features:

• Supports 3/8" to 1/2" (10 to 12 mm) tempered glass
• Matte black finish for modern, elegant bathroom designs
• Self-centering mechanism engages within 15° of closed position
• Reversible 5° pivot pin for 90° or 85° door closure
• Dual steel pin system accommodates multiple cut-out templates
• Solid brass construction for strength and durability
• Wall mount with full back plate for added stability
• With two hinges: supports up to 110 lbs (50 kg), 36" (914 mm) wide doors
• With three hinges: supports up to 140 lbs (63 kg), 36" (914 mm) wide doors
• Includes installation hardware and glass fabrication dimensions
• Max clamping screw torque: 60 lbf.in (677.9 cN.m)
• Three-year limited warranty

Specifications:

• Glass Thickness: 3/8" to 1/2" (10 to 12 mm)
• Swing Range: 90° inward and 90° outward
• Material: Solid Brass
• Finish: Matte Black
• Cut-Out Required: Yes (except V1E092 model)

Important Notes:

• Use only the included template for proper glass cut-out
• Not all CRL hinges are compatible with other brand templates
• For non-residential or special applications, contact CRL Technical Sales for approval
• Images represent actual product or close approximation; colors may vary by display
• Shipping weights are approximate; contact CRL for precise info if needed

Enhance your shower with the strength, flexibility, and high-end design of the CRL Vienna 037 Matte Black Hinge — a premium choice for frameless shower enclosures.
