CRL Laguna Series Matte Black Single Sliding Glass Door Mount Kit

• New Anti-Lift Design for added security
• Assembly includes all necessary hardware for 3/8" or 1/2" (10 or 12 mm) tempered glass
• Stainless steel construction for corrosion resistance
• Spanner wrench for installation sold separately

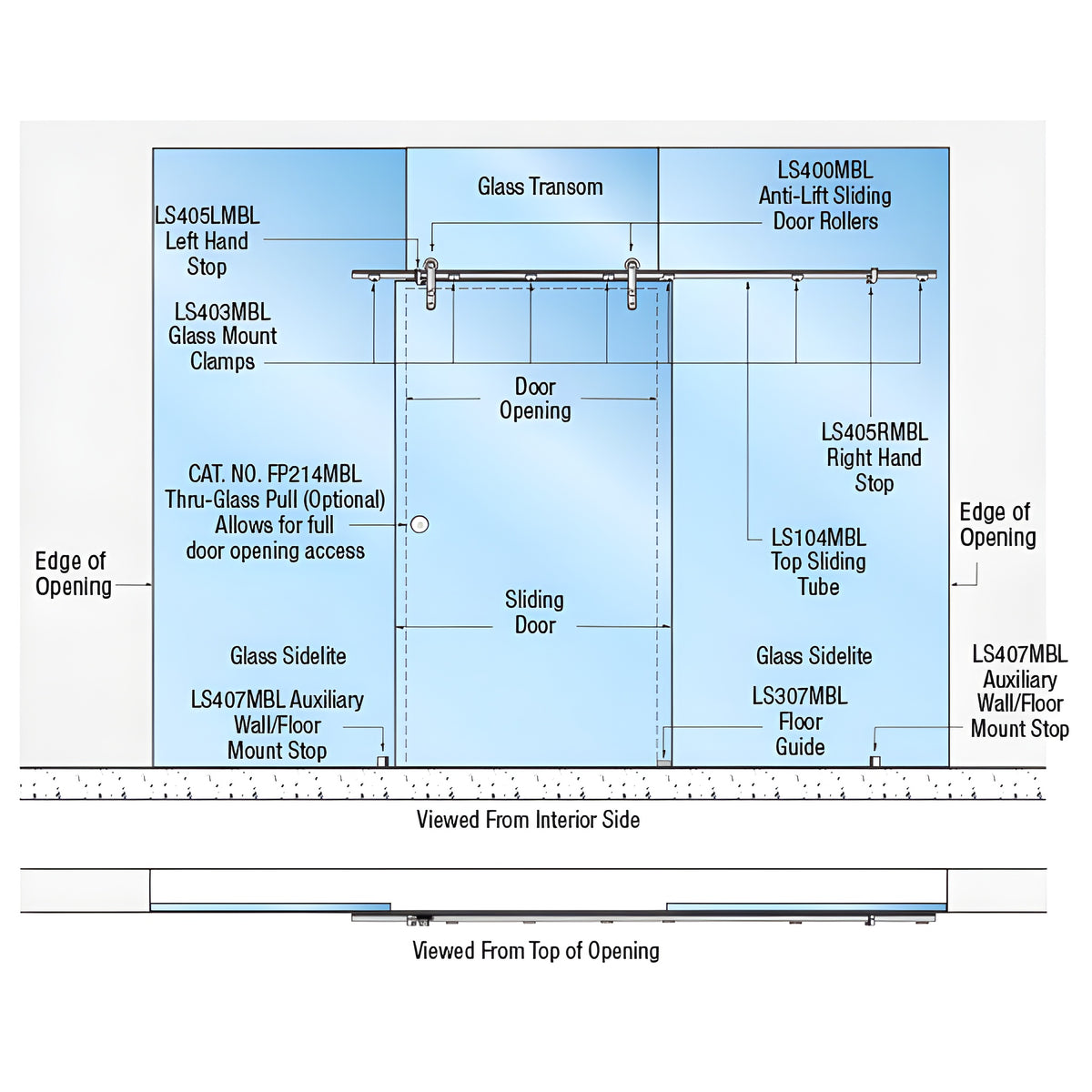

The CRL Laguna Series Glass Mount Single Slider Kit (SKU: LSGM6MBL) provides a complete top-rolling system (tempered glass not included) for single sliding doors in all-glass openings—wall on one side, fixed glass panel on the other, and a glass transom above. This kit is engineered for anti-lift protection and long-term performance in commercial and residential glass door installations.

NOTE: Bi-parting (double) doors are not possible with this application.

The Anti-Lift sliding door top rollers include both Surface Mount and Flush Mount glass fittings. Rollers offer 1/8" (3.2 mm) vertical adjustment (up/down) for precise door alignment. Use only with 3/8" or 1/2" (10 or 12 mm) tempered glass—do not use laminated glass. For complete glass fabrication details and drawings, contact our Technical Sales Department.

DOOR SYSTEM LIMITATIONS:
Maximum Door Weight: 220 lbs (100 kg)
Minimum Door Width: 37-13/16" (960 mm)
Maximum Door Width: 53-9/16" (1.36 m)
Maximum Door Height: 98-7/16" (2.50 m)
Maximum Track Length: 104" (2.64 m)

EACH KIT CONTAINS:

• Two CRL Laguna Series Anti-Lift Top Rollers with glass fittings
• One CRL Laguna Series Top Sliding Tube with end caps — 104" (2.64 m) length
• One CRL Laguna Series Top Sliding Tube wall mount end cap (wall fastener not included)
• Six CRL Laguna Series Top Sliding Tube glass mount clamps
• Two CRL Laguna Series door stops (one left-hand, one right-hand)
• One CRL Laguna Series bottom floor guide

Product Warning:

STRUCTURAL DISCLAIMER — Customers must consult a structural engineer to confirm suitability for intended use and site conditions. Installers must be qualified and comply with local, state, and federal regulations, safety factors, and appropriate fixing materials and procedures.

NOTE: These fittings are not for use with
