CRL Matte Black Patch Kit for Transom & Sidelite Glass Door — No Lock

CRL Matte Black Patch Kit for Transom & Sidelite Glass Door — No Lock

$498.28 CAD
$498.28 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA4LMBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-3/4 in. (69.85 mm)

Overview

  • For 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available in five architectural finishes

CRL PHA4 North American Door Kits (SKU: PHA4LMBL) include the hardware required to install a free‑swinging tempered glass door with fixed transom and sidelite, excluding glass and any additional supports for the fixed transom and sidelite. Pivot setback: 2-3/4" (70 mm). A floor closer with tapered spindle (ordered separately) may be used with this kit.

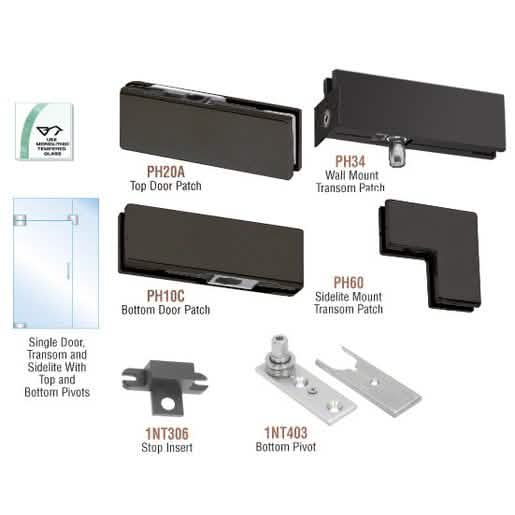

Kit Contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH60 Sidelite Mount Transom Patch
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)

Kits with lock include one AMR205 patch lock. Cylinders, thumbturns, and keepers are ordered separately.


NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to determine costs, please request it before ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.

Order the PHA4LMBL pivot hardware kit for tempered glass doors today to complete your commercial glass door installation.
