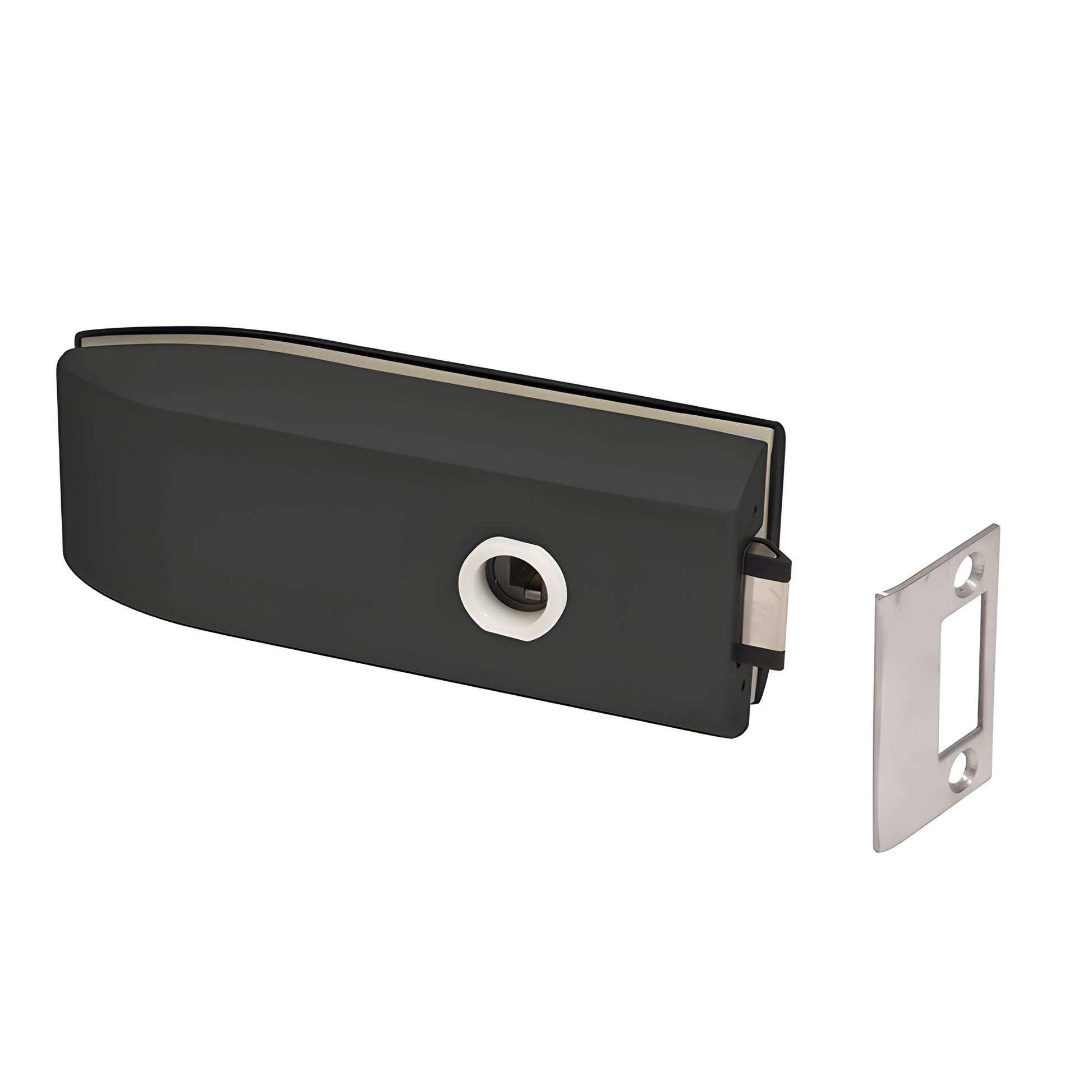

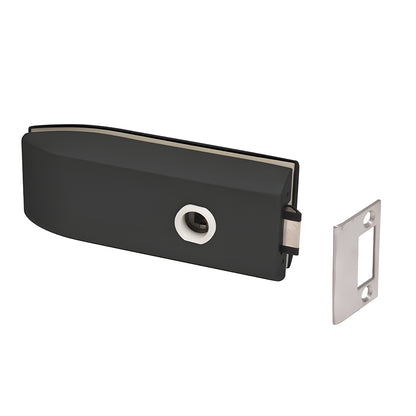

CRL Matte Black Passage Latch for Glass Doors
CRL Matte Black Passage Latch for Glass Doors
Regular price
$128.98 CAD
Regular price
Sale price
$128.98 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PTH312MBL
Shipping Weight: 2.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.37 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Matte Black
Glass Mounting Holes Diameter
1-7/8 in. (48 mm)
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)

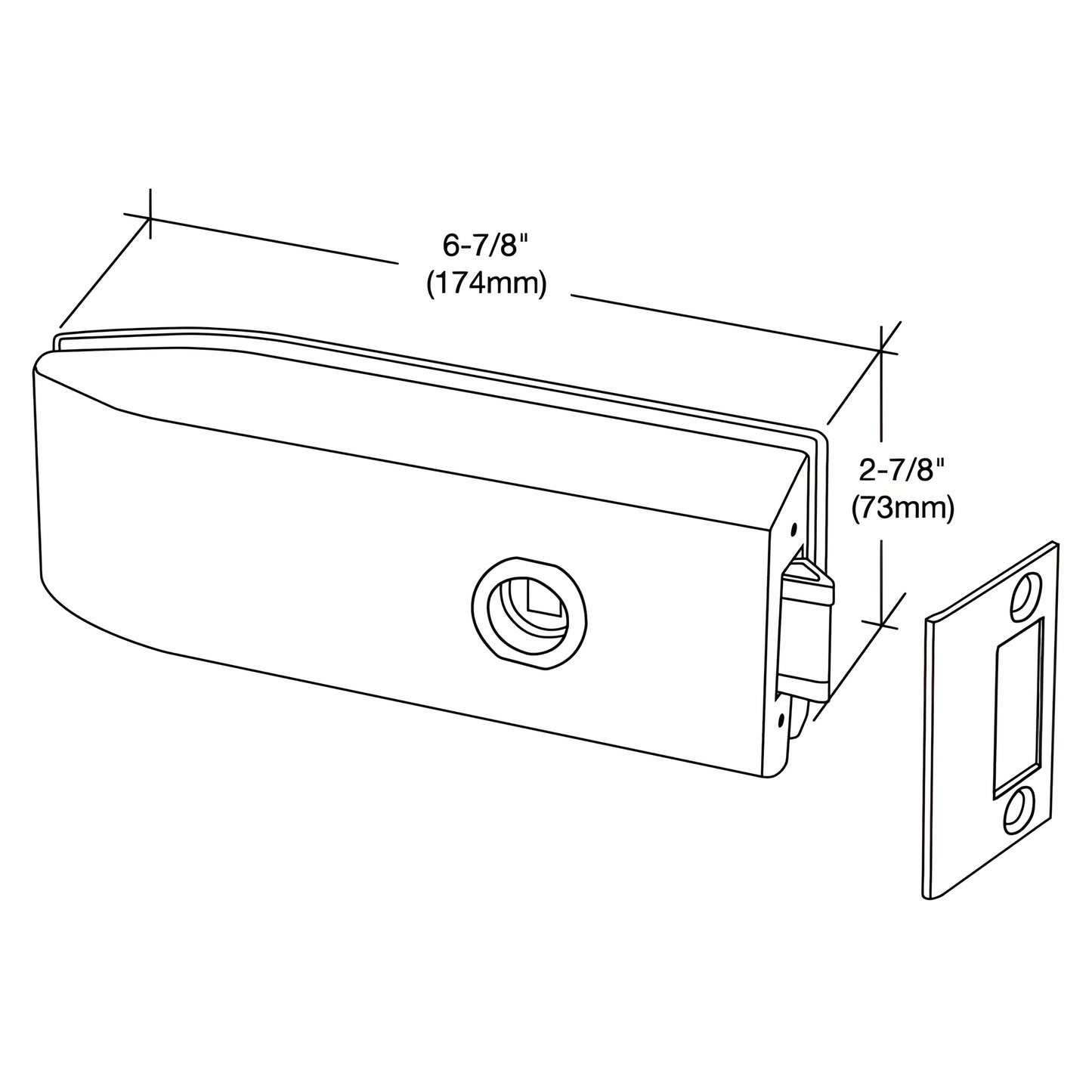

Height
2-7/8 in. (73 mm)
Length
6-7/8 in. (175 mm)
Material
304 Grade Stainless Steel
Overview
- Works on Single or Double Doors
- For 3/8" or 1/2" (10 or 12 mm) Monolithic Tempered Glass
- 304 Grade Stainless Steel
- Use Monolithic Tempered Glass
CRL PTH311 Glass Mounted Latch — assembled for use with the EC4 Keyed Cylinder on outswing doors and on inswing doors when a PTH314 Glass Mounted Latch Keeper is not required. For inswing doors using a PTH314 keeper, use the EC3 Extended Length Keyed Cylinder. SKU: PTH312MBL.
Key differentiators:
- Designed specifically for monolithic tempered glass doors — fits 3/8" or 1/2" (10 or 12 mm) thickness
- Durable 304 grade stainless steel construction for corrosion resistance and long service life
- Compatible with EC3/EC4 cylinder/thumbturn systems — includes cylinder, thumbturn and 3 keys
Installation notes
- Glass fabrication required: two 1-7/8" (48 mm) holes
- When used on double doors, secure the door with the keeper using a bottom lock
- Lever handles ordered separately
Comes with: EC3 and EC4 Series Cylinder/Thumbturn with 3 Keys, template, and instructions.
Product warning: Lever handles ordered separately.
Need this glass-mounted latch for a specific tempered glass door project? Contact our sales team or add to cart to order now.
