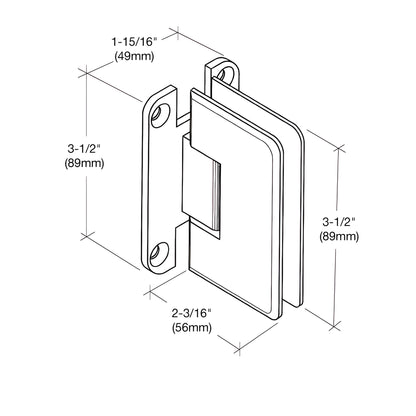

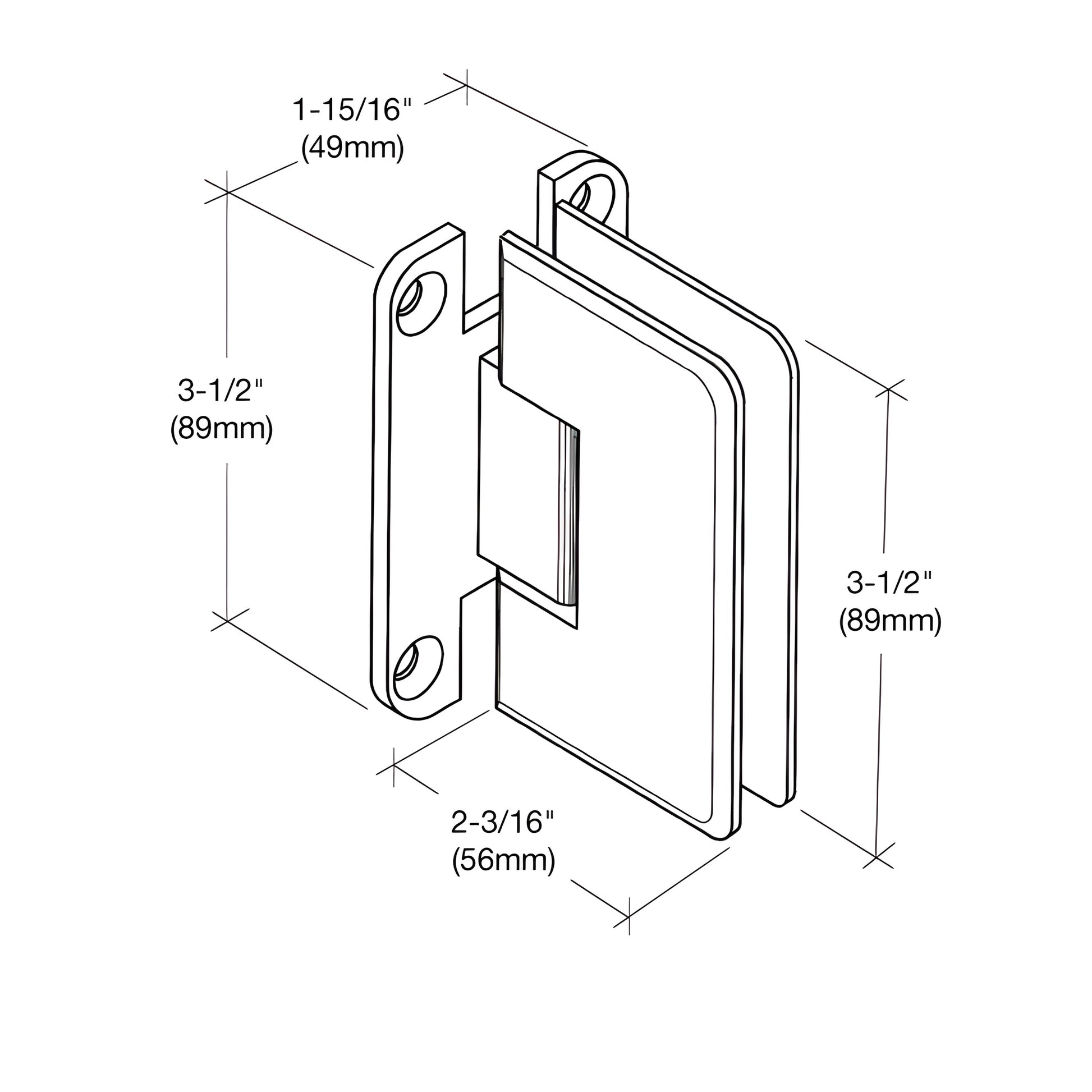

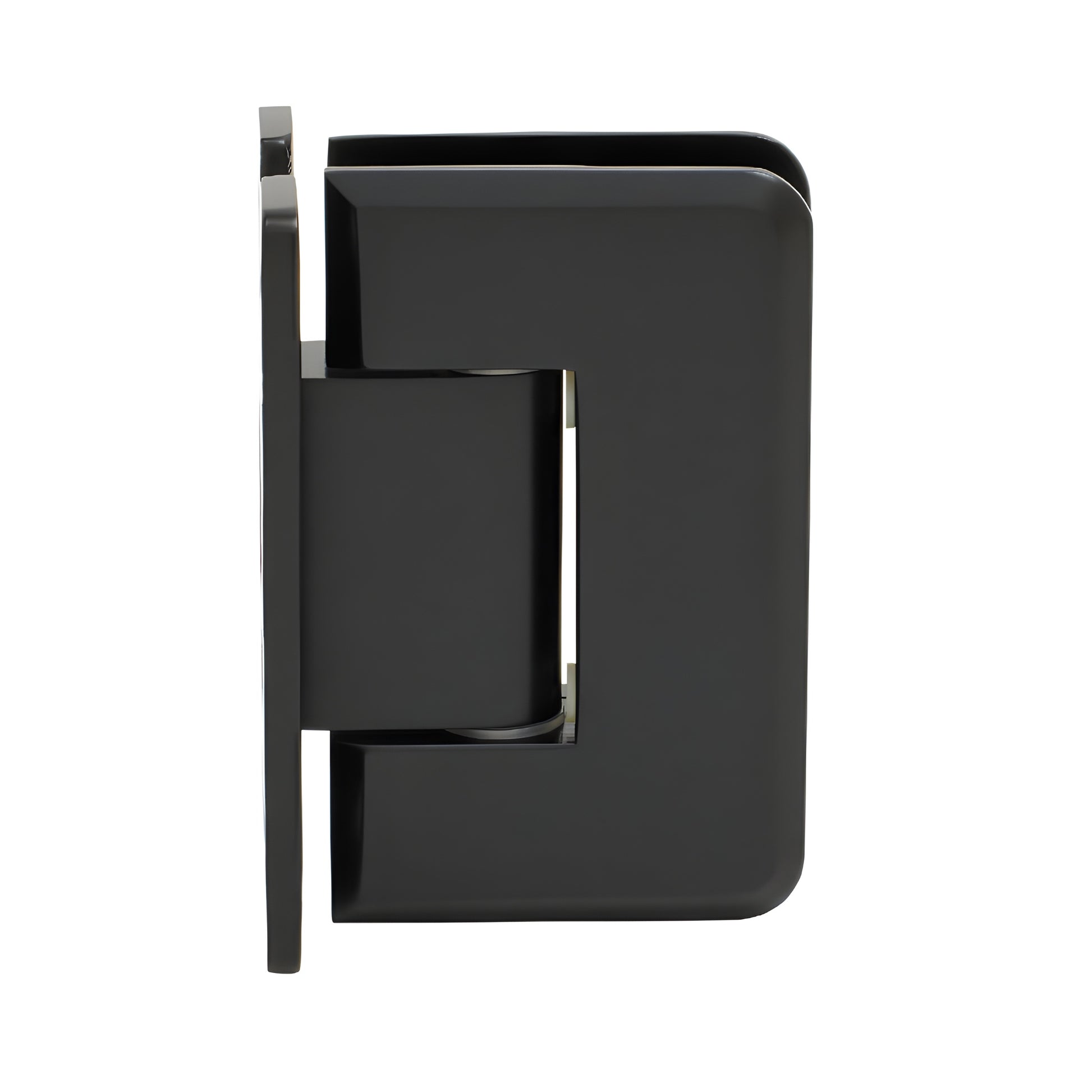

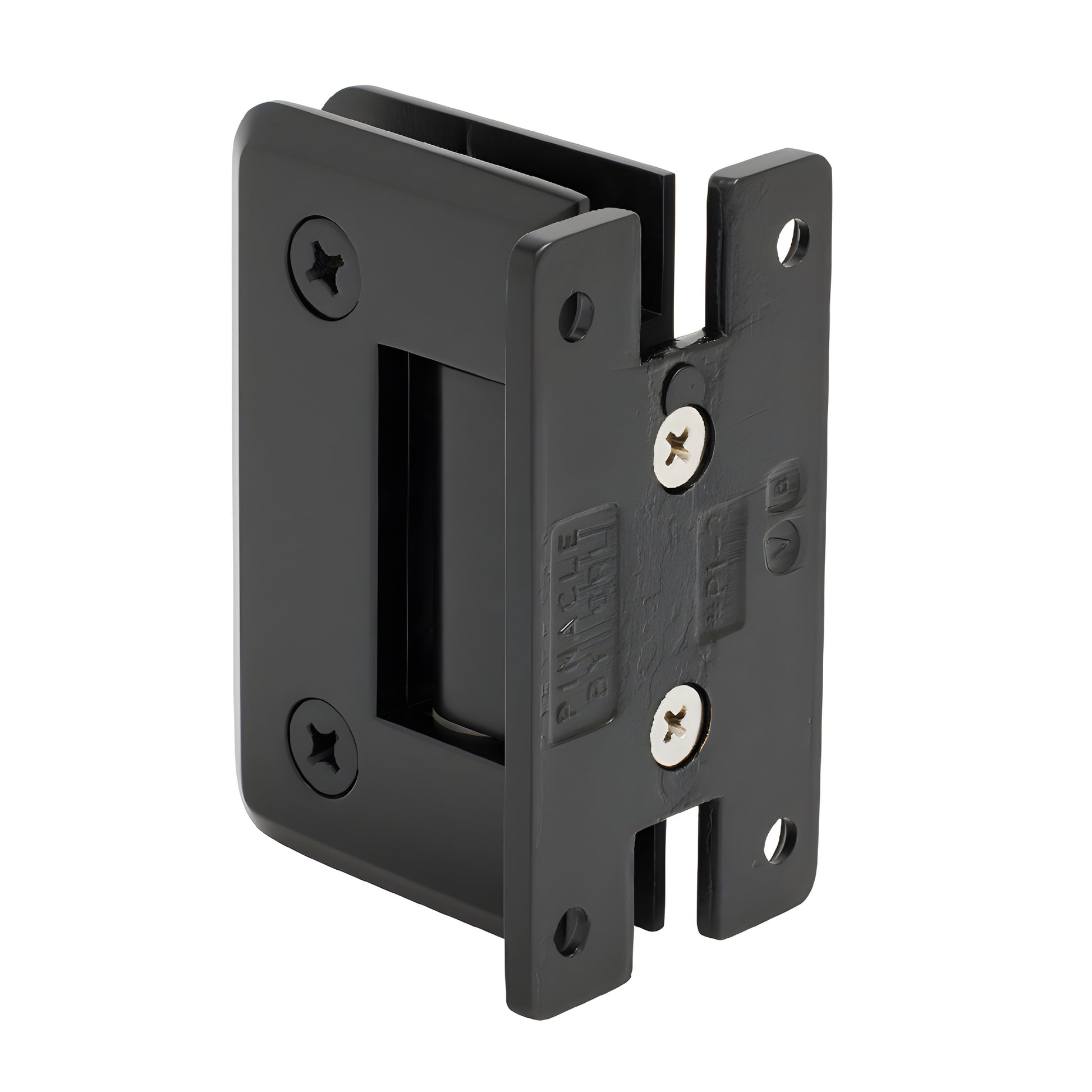

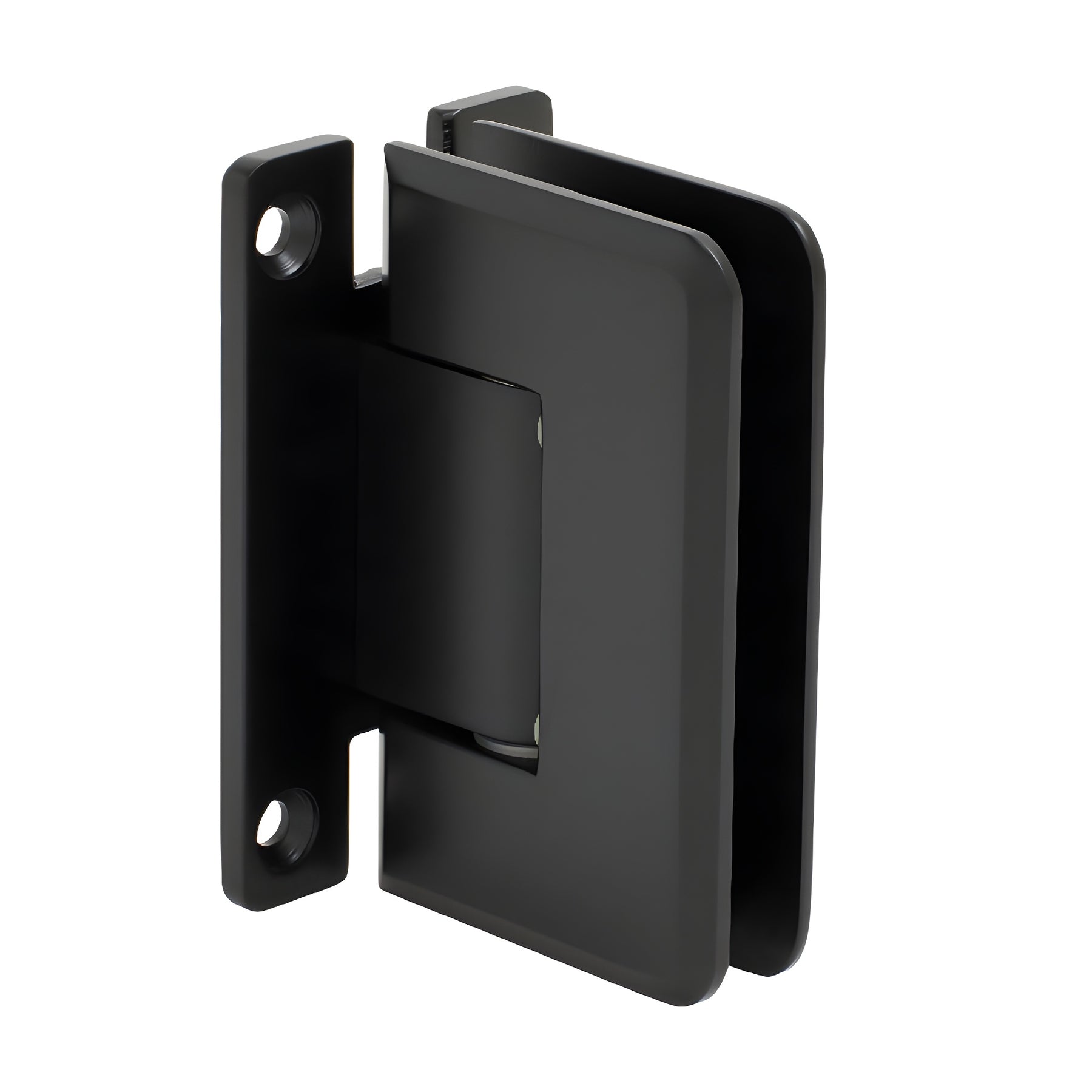

CRL Pinnacle 037 Matte Black Wall-Mount H Back Plate Glass Door Hinge

• Self-centering with reversible 5° pivot pin
• Available in several durable finishes
• Three year warranty
• Wall-mount "H" back plate standard (factory set for standard closing position)
• Designed for monolithic tempered safety glass

CRL Pinnacle Hinge (SKU P1N037MBL) is a radius-corner, beveled-edge alternative to our Geneva Series, offering a sleek aesthetic for premium glass shower doors. Engineered for 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass, Pinnacle Hinges are self-centering within 15° of the closed position and use solid brass construction with stainless steel plunger tips, pins, and springs for long service life and reliable door closure.

Key differentiators: reversible 5° pivot pin for adjustable closing, radius corners and beveled edges for a refined look, stainless-steel internal hardware for corrosion resistance, and availability of custom pivot pins for off-angle installations.

Standard reversible pivot pin: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. The pin can be rotated to switch sides.

Custom pivot pins: Available up to 45° to accommodate walls or installations that do not meet the door at 90°.

Capacity:

• Two hinges (8–12 mm glass): holds up to 80 lb (36 kg); max door width 28" (711 mm)
• Three hinges (8–12 mm glass): holds up to 120 lb (54 kg); max door width 32" (813 mm)

Specifications:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (0°) or 5° Pre-Set for tighter closure
Construction: Solid brass with stainless-steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering within 15° of closed position
Cut-Out Required.

Includes: gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) glass.

Replacement hardware:

• P102** - Wall plate replacement screws
• P615** - Cover plate replacement screws
