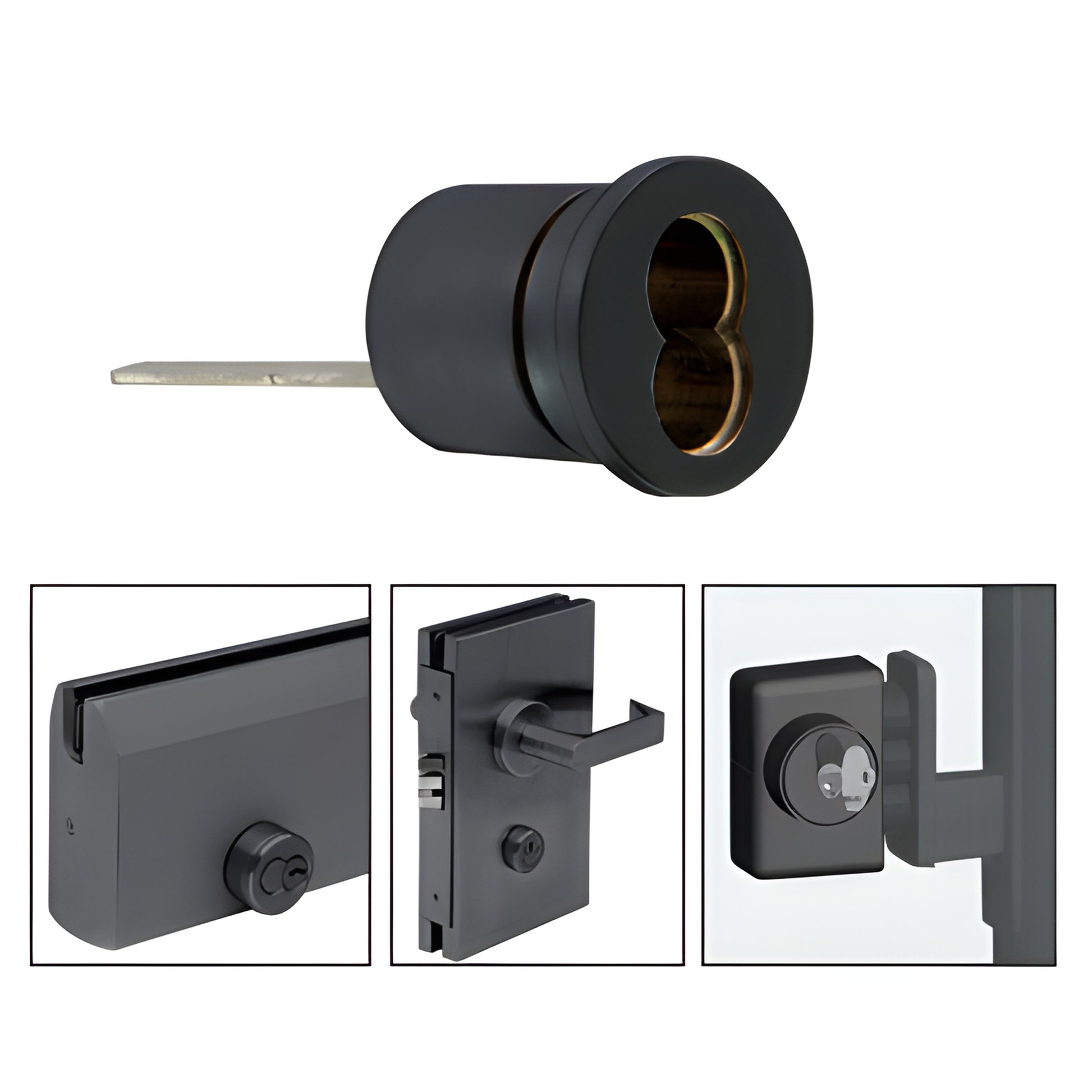

CRL Matte Black Rim Cylinder Housing for SFIC Lock Cores

• Compatible with any 7-pin SFIC small format interchangeable core (SFIC) type core
• Available in several architectural finishes

CRL Mortise Housings for 7-Pin Small Format Interchangeable Cores (SFIC) allow quick conversion of mortise keyed cylinders to a small format interchangeable core system. Use these housings to convert Door Rails with locks, 4" x 10" and 6" x 10" center locks, panic and deadbolt handles, or CRL Rim Cylinder Housings that accept 7-pin SFICs. To convert, remove the existing mortise cylinder, select the correct cam, and install the new housing and SFIC core—installation is fast and reversible.

CRL rim and mortise cylinder housings for 7-pin SFICs are standard equipment on our Locking Ladder Pulls with the interchangeable core option or can be specified wherever 7-pin SFIC cylinder housings are required. Note: SFIC cores and some accessory rings are sold separately.

ORDERING INFORMATION:
• Each mortise housing ships with a 1/2" (12 mm) tall cylinder ring and includes one DRA10CAM (installed), one DRA10CAM (spare DRACAM), and one DRA610CAM for straightforward cam conversion.
• Not compatible with larger removable core systems.
• When used with CRL Low Profile Wedge-Lock® Door Rails, an additional DRA256 Series cylinder ring must be ordered separately.
• SFIC cores must be ordered separately.

SKU: 2CHMBL — For quotes or to order SFIC cores and accessory rings, contact CRL or add to cart now.
