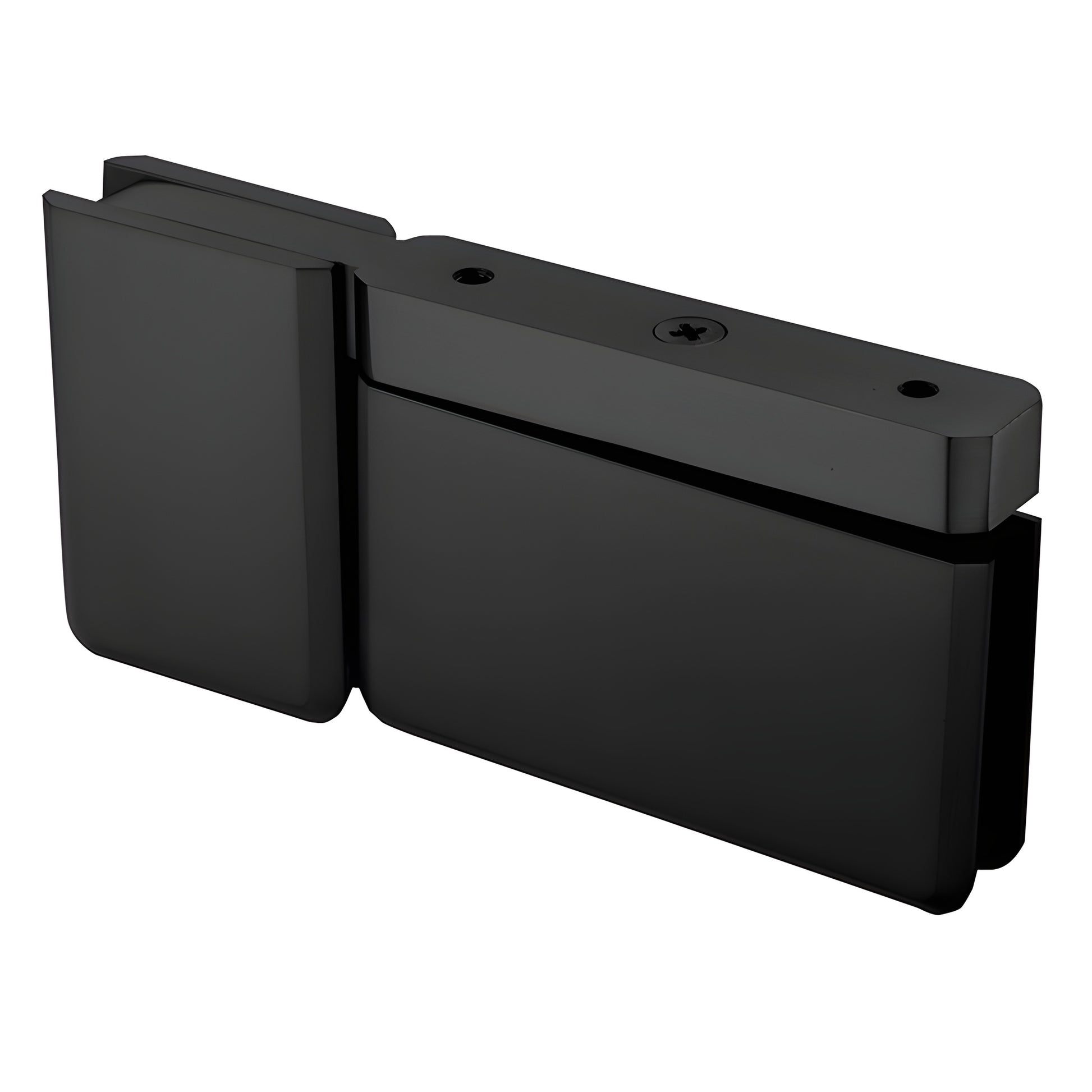

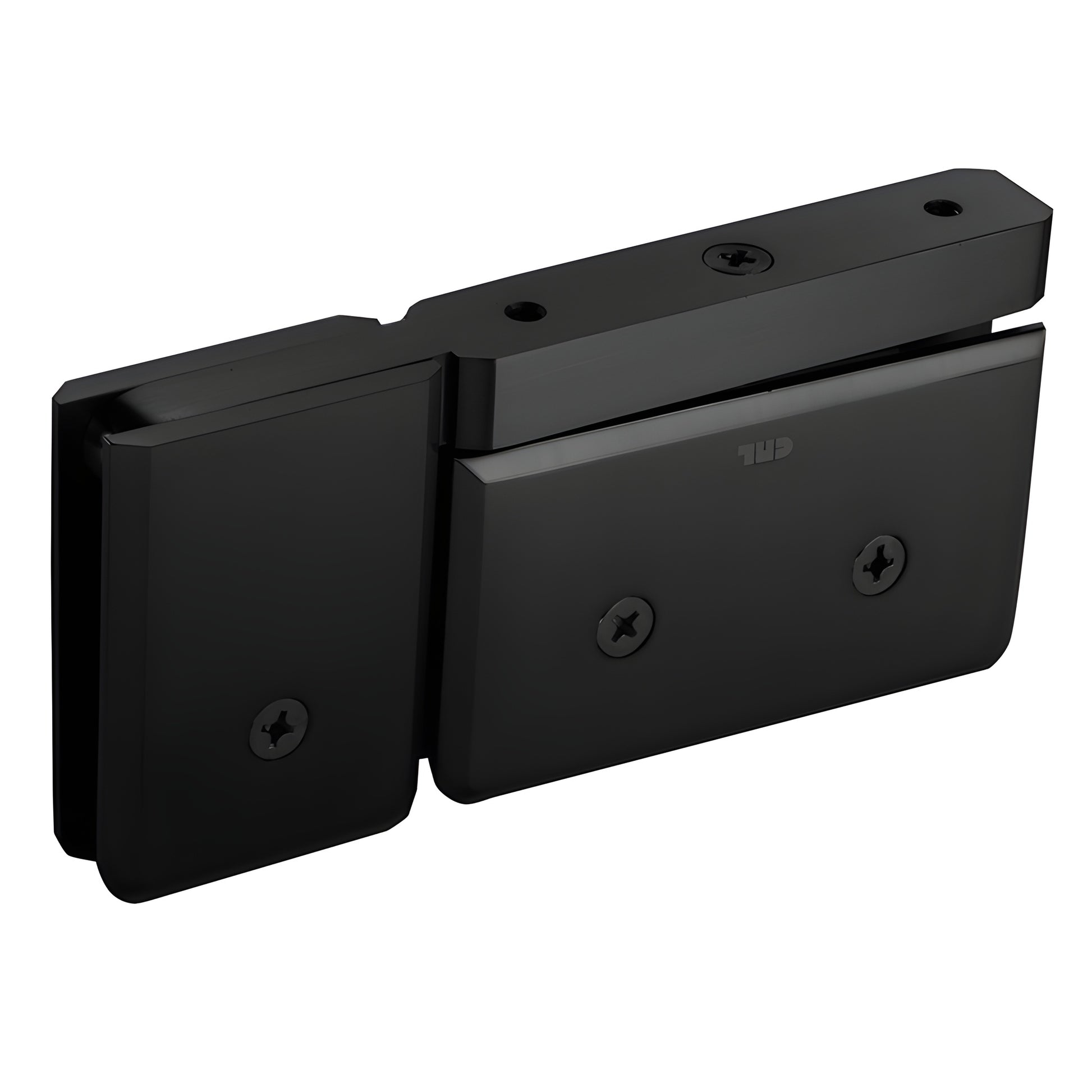

CRL Senior Prima Matte Black Glass Pivot Hinge Top/Bottom w/ U-Clamp

• Top or bottom mount with attached U-clamp — alternative to traditional header systems under certain criteria (see "How-To-Do-It" mounting criteria)
• Available in several beautiful finishes; custom finishes available on request
• 3-year warranty
• Uses monolithic tempered glass
• U.S. Patent 5,297,313

Advantages of CRL Senior and Junior Prima Hinges: these glass shower door hinges carry the majority of the weight on the bottom and can be inset from the wall to provide clearance for towel bars and other projections. The Glass-to-Fixed Transom Mount Pivot Hinge is designed for doors with fixed transoms above them; when placed vertically, either style can be used in movable transom installations. These pivot hinges are self-centering with four springs for maximum retention strength.

The SRPPH01 model adapts to the Deluxe Header System; SRPPH06 is compatible only with the EZ-Adjust Header System and includes an adaptor. The Junior Prima Series adapts to the Junior Header Kit. SKU: SRPPH07MBL.

SENIOR PRIMA:

Using two hinges with 1/2" (12 mm) tempered safety glass, holds up to 145 lbs. (66 kg) with a maximum door width of 36" (914 mm).

JUNIOR PRIMA:

Using two hinges with 1/4" (6 mm) tempered safety glass, holds up to 117 lbs. (53 kg) with a maximum door width of 31" (787 mm).

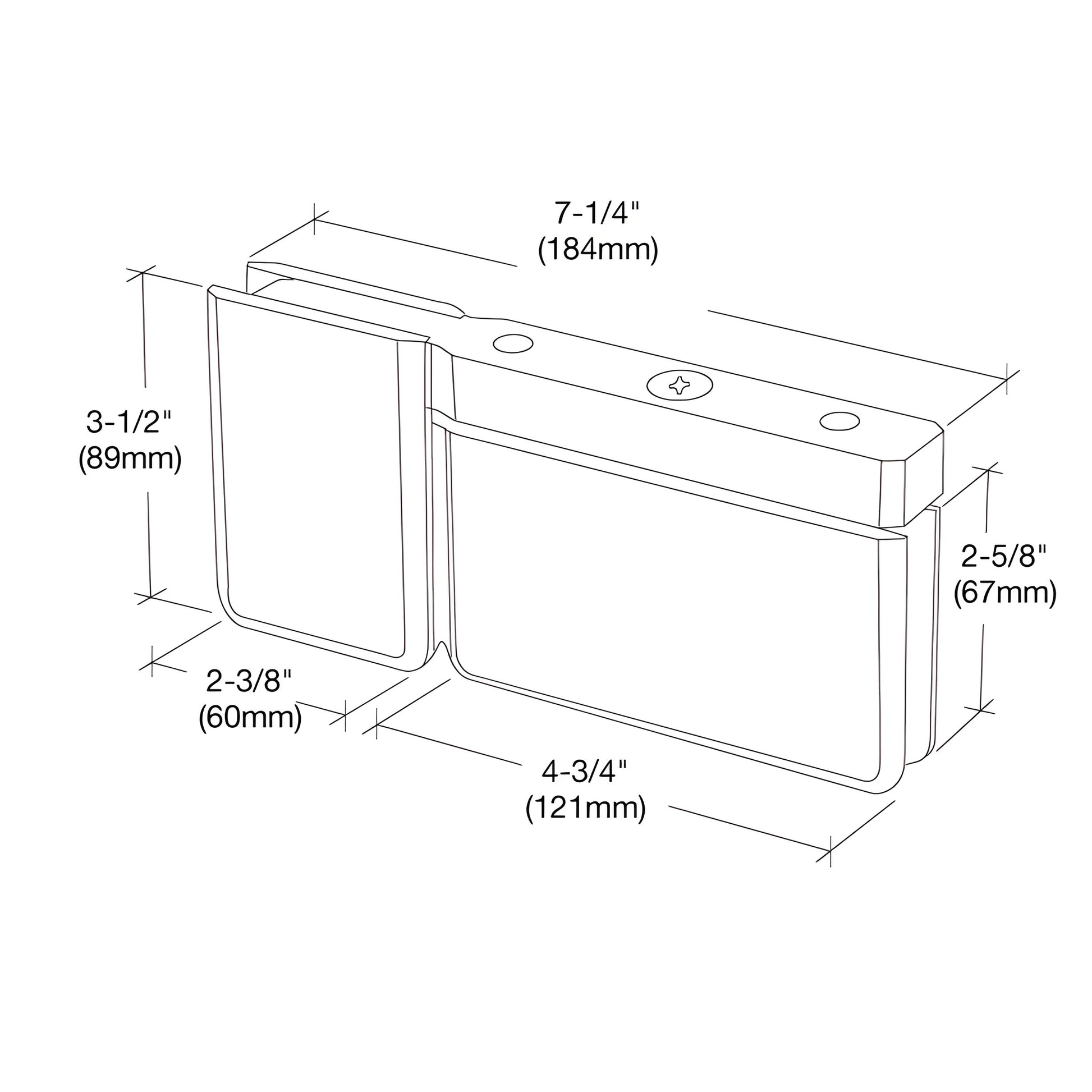

SPECIFICATIONS:
Glass Thickness:
Senior Prima: 1/2" (12 mm) tempered safety glass
Junior Prima: 1/4" (6 mm) tempered safety glass
Special Feature: Top and bottom mount allows more glass exposure and can reduce glass fabrication costs versus side-mount glass-to-glass hinges that require additional cut-outs.
Construction: Solid brass
Hinge Swings: Full rotation (glass shower door hinges)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: Senior and Junior Prima hinges are patented (Patent No. 5,297,313)

Custom finishes available on request — contact the CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For any other application, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge; cut-out dimensions for CRL hinges may not match other brands.
