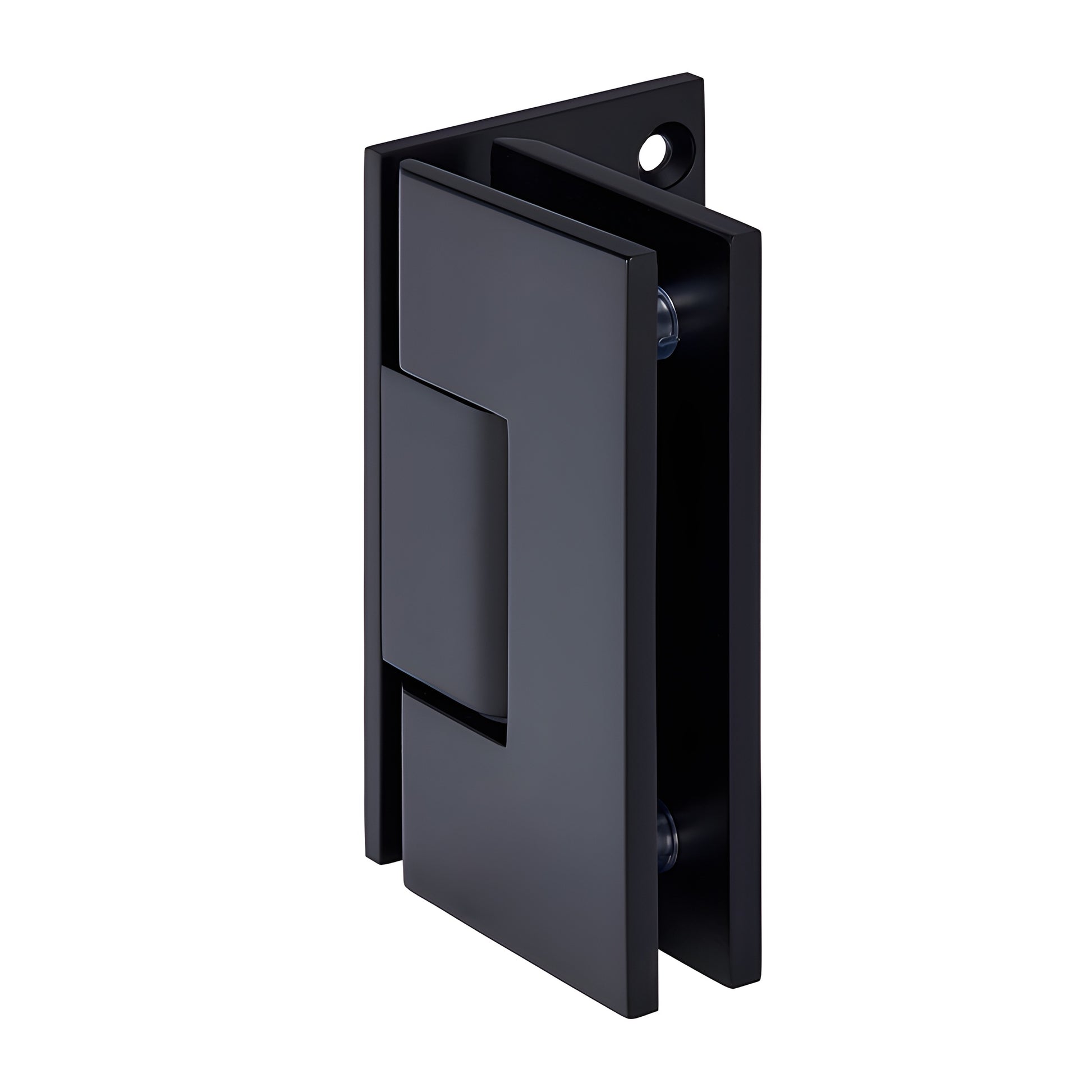

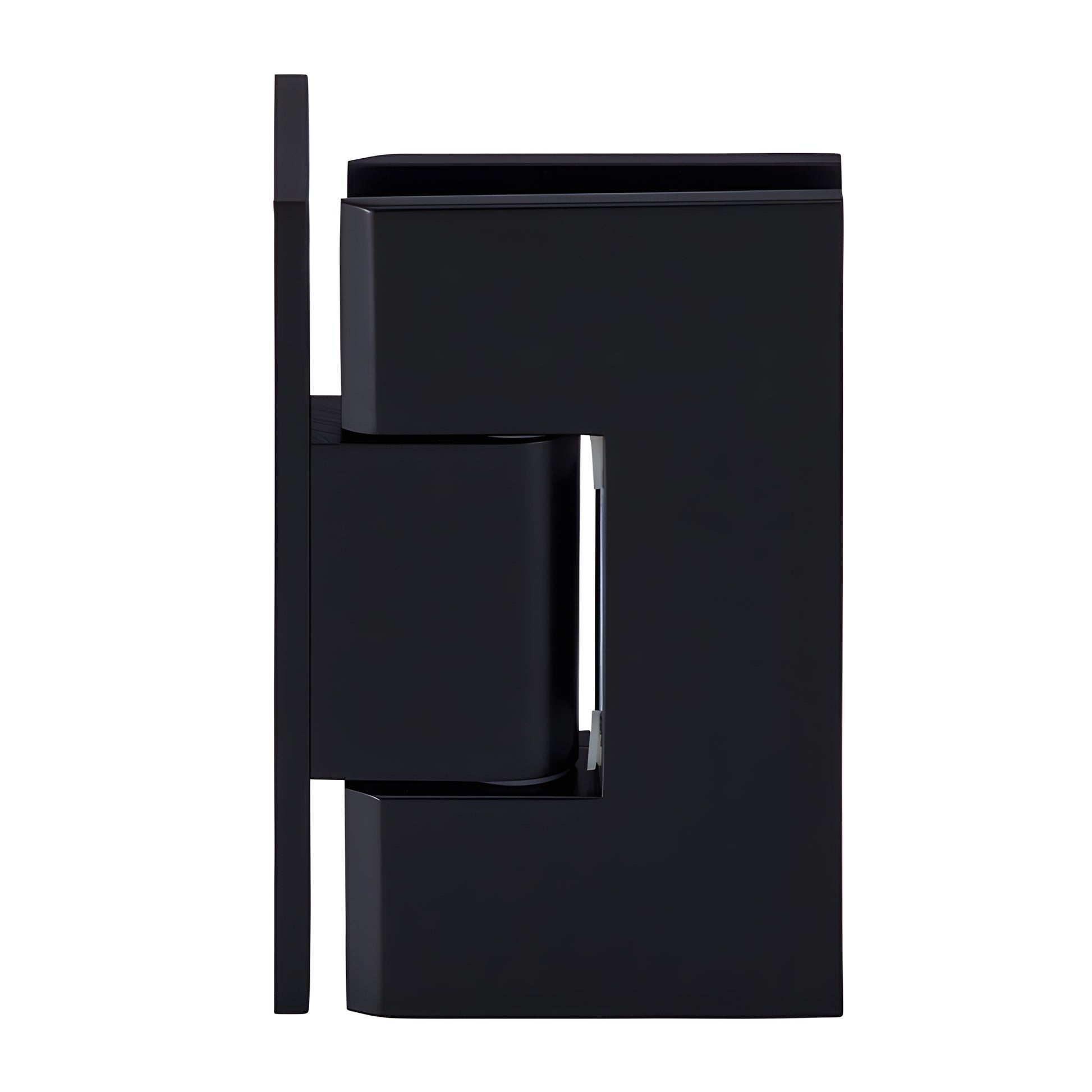

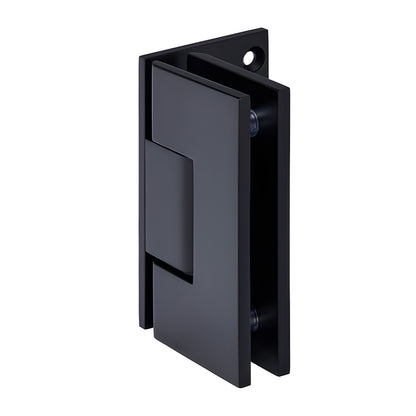

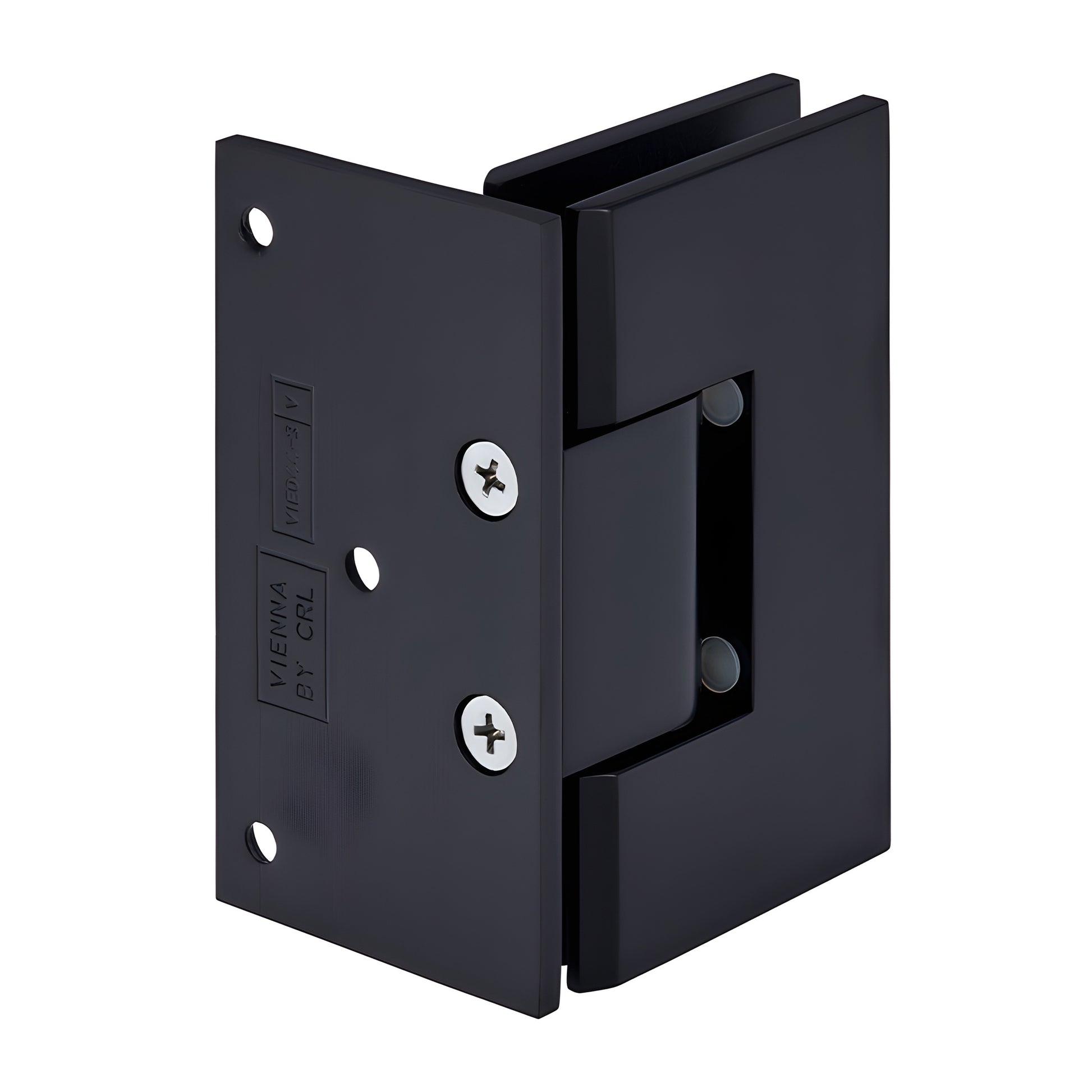

CRL Vienna 044 Matte Black Wall-Mount Offset Back Plate Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• Wall mount offset back plate (standard model)
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E044MBL) are heavy-duty brass shower door hinges designed for wider, heavier glass doors where traditional hinges fail. Interior dual steel pins provide two template options: leave pins in for CRL "mouse-ears" cut-outs, or remove pins for increased adjustability and compatibility with CRL rectangular square-corner cut-outs (and, in some cases, competitive rectangular cut-outs). These features make the Vienna Hinge a top choice for tempered glass shower door hinge applications and custom shower installations.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° and 85° settings (standard models ship set to 90°; pre-set models ship at 85° for a 5° tighter closure into the shower). Rotate the pin (do not flip) to change the angle.

CUSTOM PIVOT PIN: Specify a custom pivot pin up to 45° for off-angle walls or non-90° installations to ensure proper door closure and fit for custom shower doors.

Load & Door Width Capacities (tempered glass shower door hinge):
Using two hinges with 3/8" glass (10 mm): holds up to 100 lbs (45 kg), max door width 34" (864 mm).
Using two hinges with 1/2" glass (12 mm): holds up to 100 lbs (45 kg), max door width 32" (813 mm).
Using three hinges with 3/8" glass (10 mm): holds up to 130 lbs (59 kg), max door width 34" (864 mm).
Using three hinges with 1/2" glass (12 mm): holds up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass — durable brass shower door hinge for corrosion resistance and long life
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092 which requires cut-out for door and two holes for fixed panel). Use only the template included; CRL cut-outs may not match other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque:
