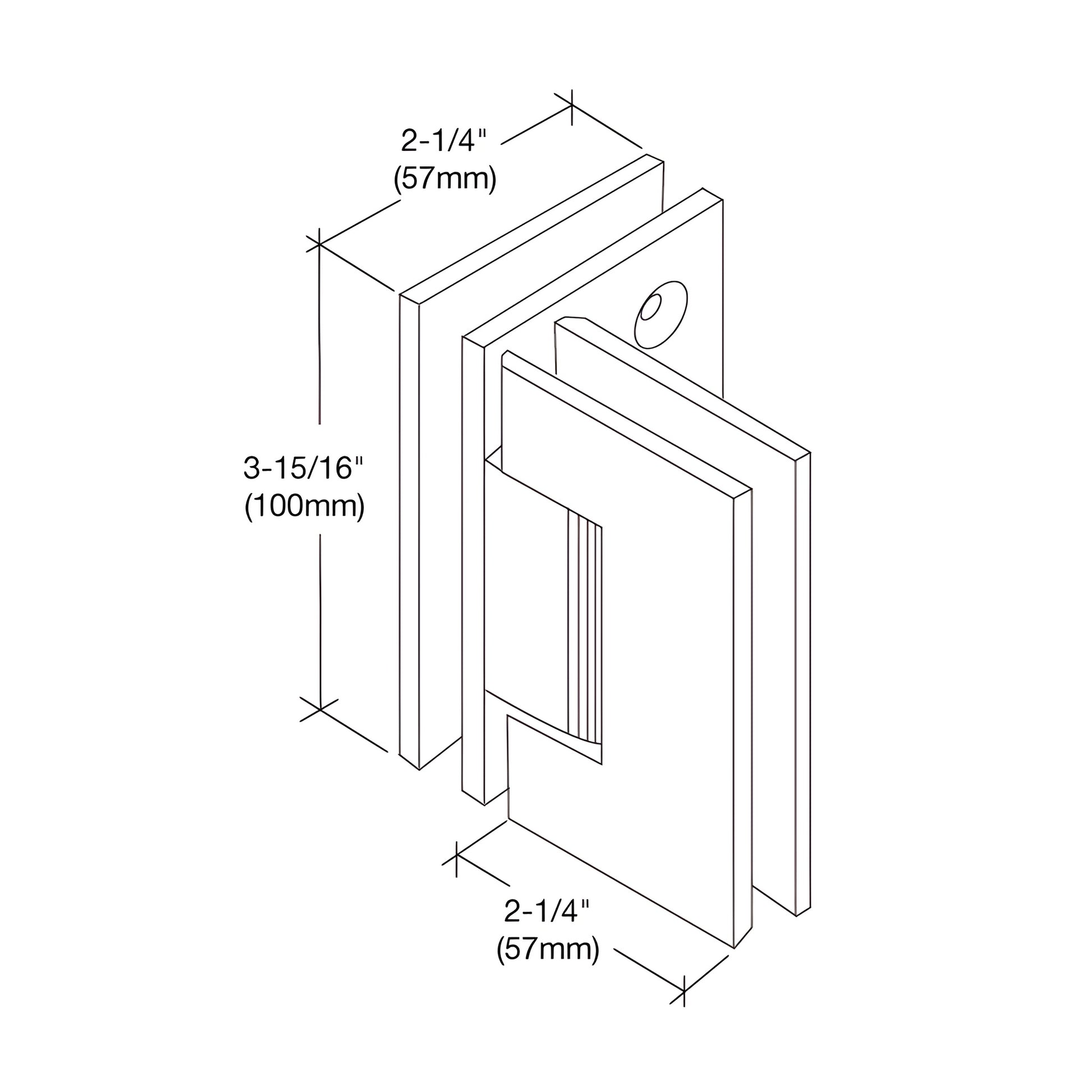

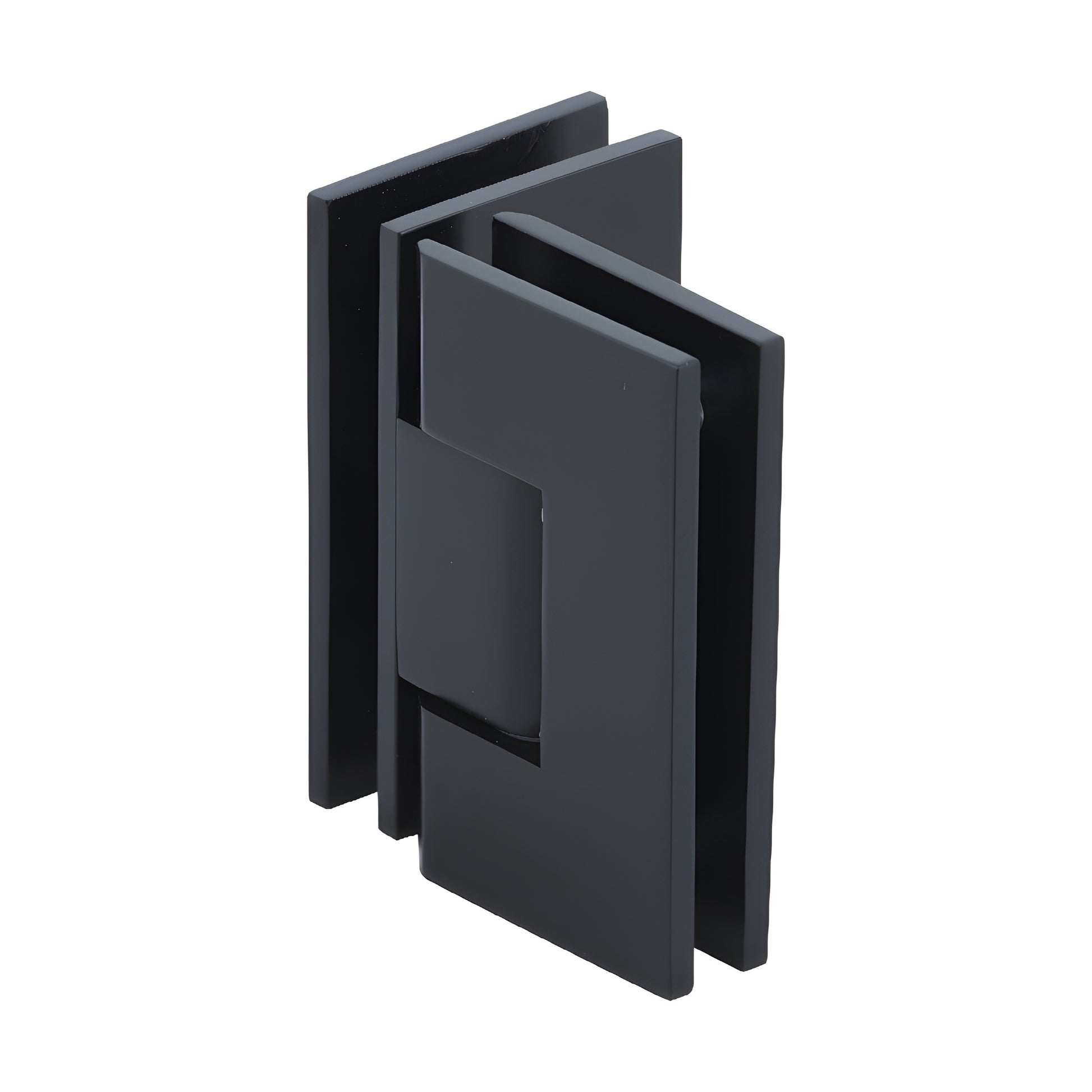

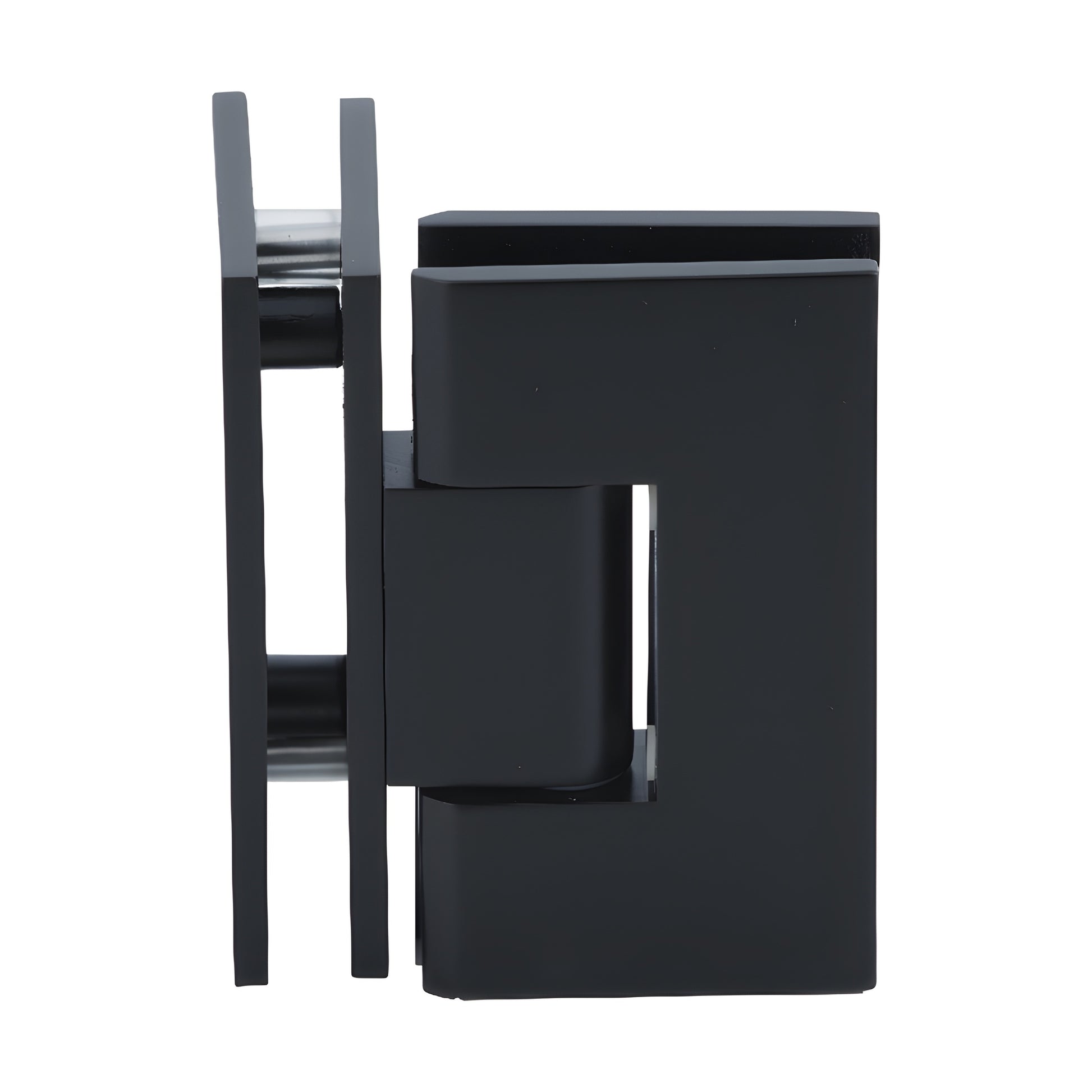

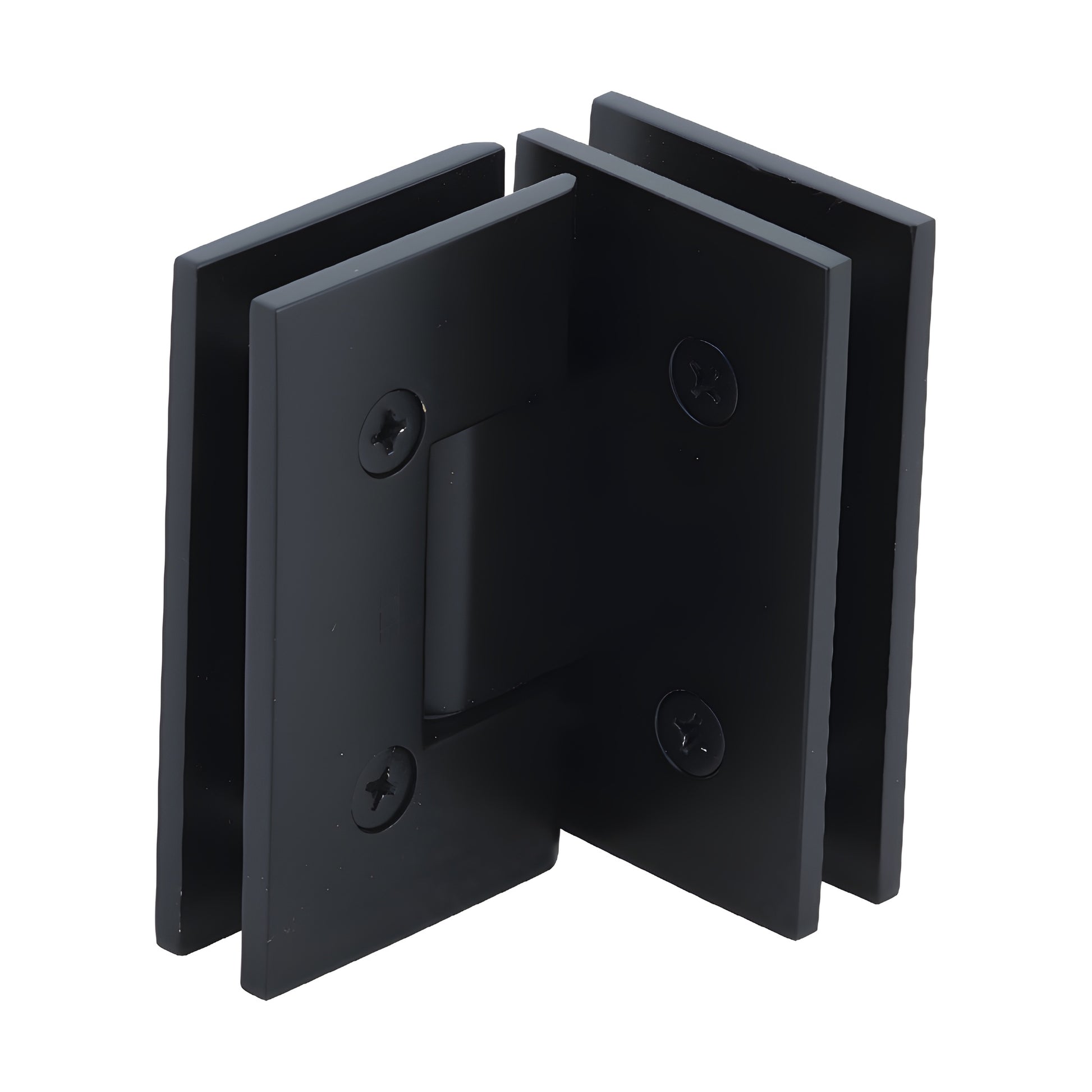

CRL Vienna 092 Matte Black 90° Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 3 Year Warranty
• 90° glass-to-glass shower hinge for frameless doors
• Designed for monolithic tempered glass installations

CRL Vienna Hinges (SKU: V1E092MBL) are heavy-duty, solid brass shower door hinges engineered for wider, heavier frameless doors where standard hinges fail. Two internal steel pins provide mounting template flexibility: leave the pins in for CRL "mouse-ears" cut-outs or remove them for CRL rectangular (square-corner) cut-outs and, in many cases, compatible competitive rectangular cut-outs. These hinges are optimized for residential and hotel shower enclosures and for secure, long-lasting performance.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side activated; Pre-Set models are set to 85° for a tighter 5° closure into the shower interior. Rotate (do not flip) the pin to change the setting.

CUSTOM PIVOT PINS: Custom pivot pins are available for off-angle walls (specify desired angle up to 45°) to ensure proper door closing when 5° is insufficient.

LOAD CAPACITY:
- Using two hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 110 lb (50 kg); maximum door width 36" (914 mm).
- Using three hinges with 3/8"–1/2" (10–12 mm) glass: holds up to 140 lb (63 kg); maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid Brass
Hinge Swings: 90° in and 90° out (glass-to-glass)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092, which requires a cut-out for the door and two holes for the fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and technical assistance
