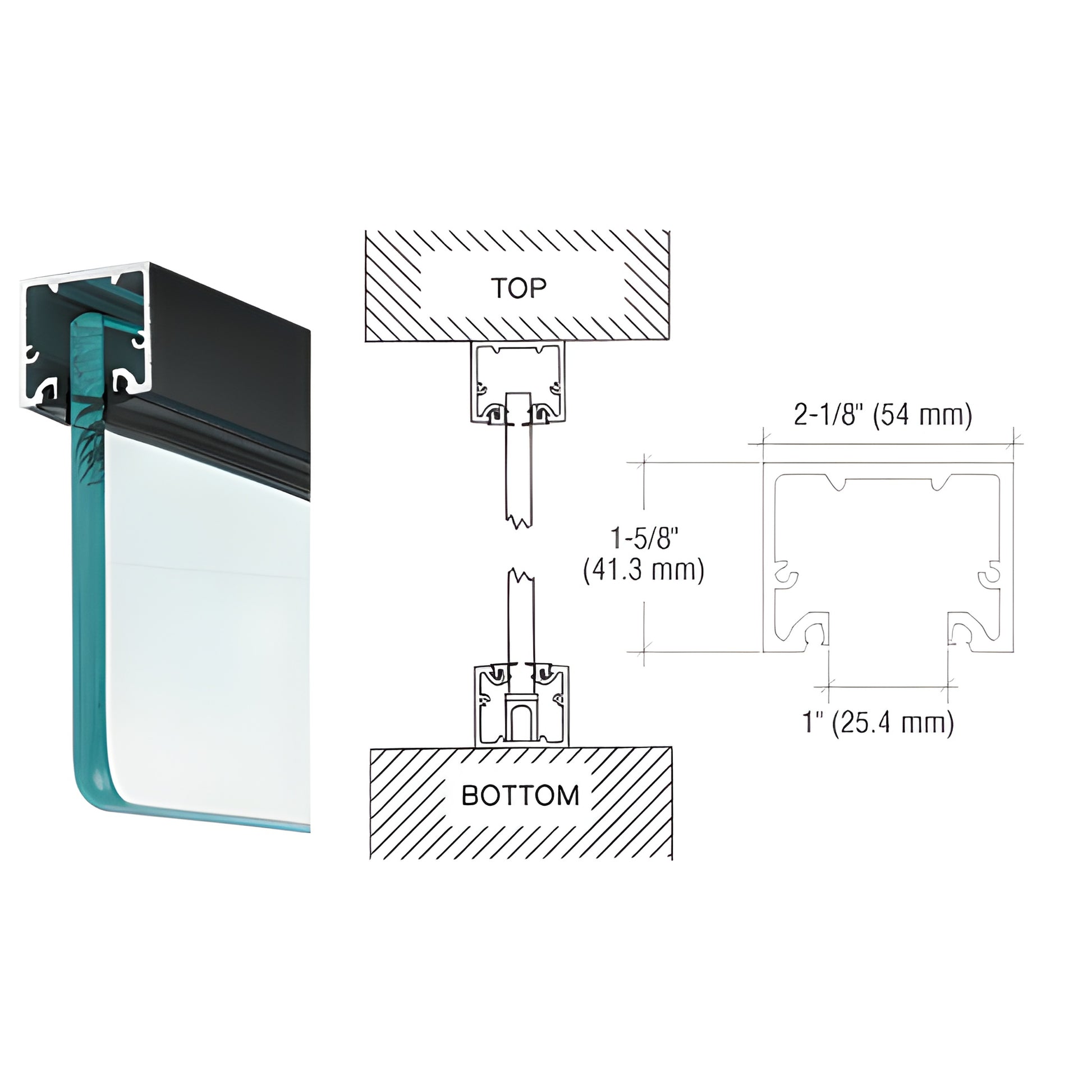

CRL Matte Black Wide U-Channel for 3/4" Glass, Top-Load Gasket 240"

• Matches width of door and sidelite rails and channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) glass
• Accepts roll-in glazing gasket, top pivot block and snap-in filler strip
• Ready-to-ship Quick Pick models from CRL inventory (SKU: NH3MBL240)
• Available in stock lengths, fabricated narrow headers, or headers with side pockets for "lift-and-drop" panel installation

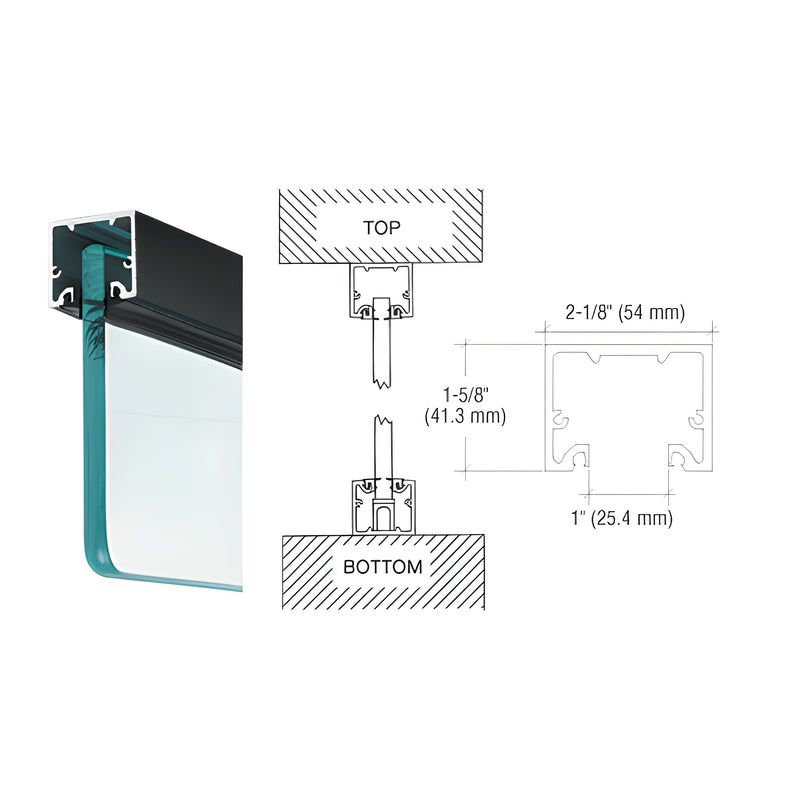

This aluminum extrusion serves three applications for glass door and sidelite systems:

• As a U-channel the same width as sidelite and door rails for consistent sight lines.
• As a narrow header that accepts a top free-swinging pivot to secure the top of the doors.
• As an even sight line system when a fabricated narrow header is secured to the opening and the sidelite rail is attached using the 1/4" (6 mm) header saddle. Drilling, tapping and fabrication are available on request to save installation time.

Designed for storefront and interior glass door installations, this extruded aluminum header/U-channel provides a clean, matching sight line and compatibility with roll-in glazing gaskets and top pivot hardware—ideal for retrofits and new builds requiring precise glass rail alignment.

Quick Pick policy: these products are stocked centrally and shipped on the next weekly re-supply truck to your regional CRL service center. If your regional center is out of stock, orders are typically filled within a few days.

Check current availability by clicking the "CHECK STOCK AVAILABILITY" box above. For exact shipping weights or other pre-order requirements, contact CRL Customer Service before submitting your order.

For SKU NH3MBL240 and ordering assistance, check stock availability or contact CRL Customer Service to expedite fabrication and delivery.
