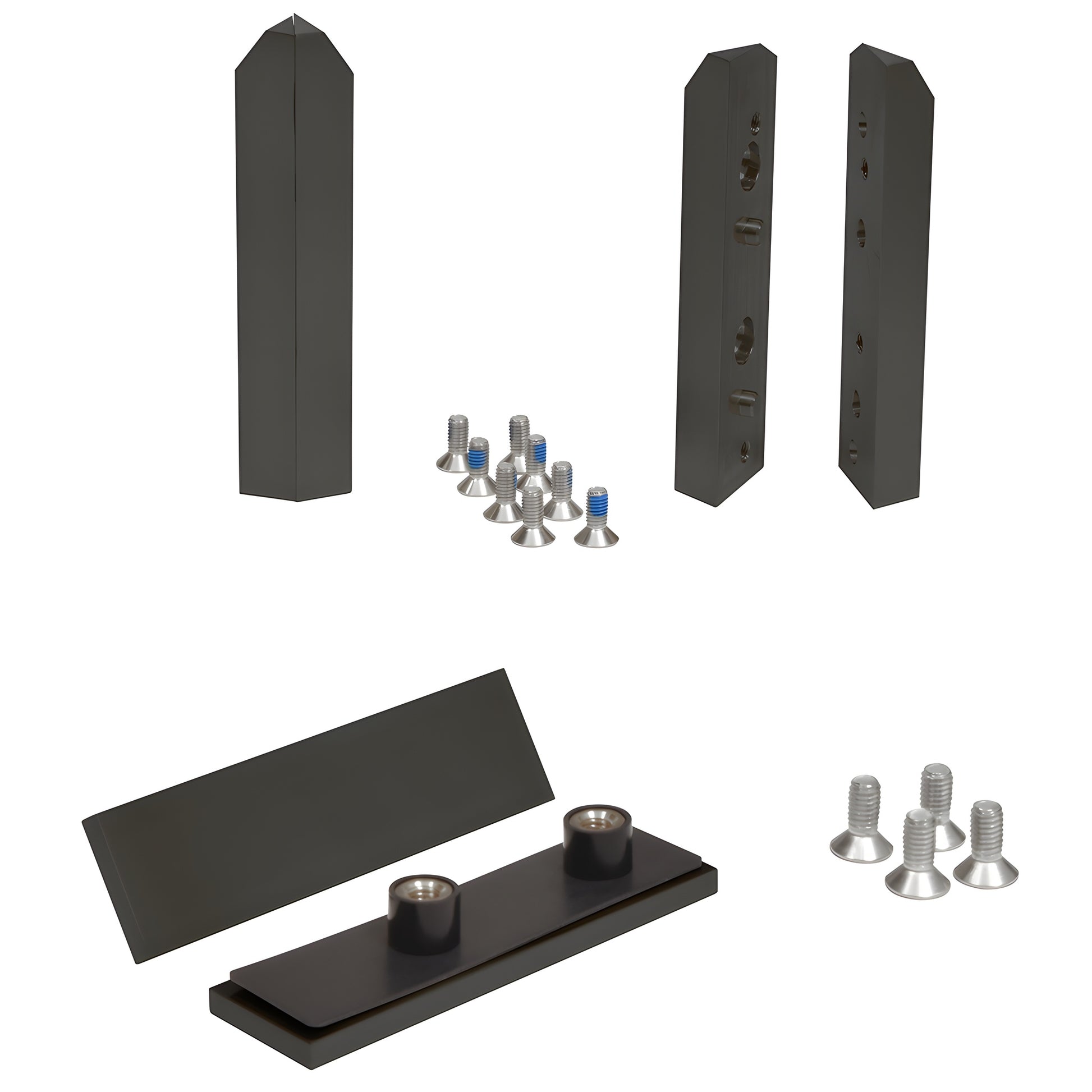

CRL Matte Black Zero Hinge Accessory Kit for 90 Degree & 45 Degree Applications

Finish (5)

Overview

SKU	ZER0ACCKTMBL
Sold as	1 Each
Finish/Color:	Matte Black
Glazing Thickness	3/8 in. To 1/2 in. (10 mm To 12 mm)
Material	Brass
Mounting Type	Glass-to-Glass

Description

Product Details

90 Degree Accessory Kit connects to Wall Fitting for 90 Degree Installations
Available in a variety of Beautiful Finishes

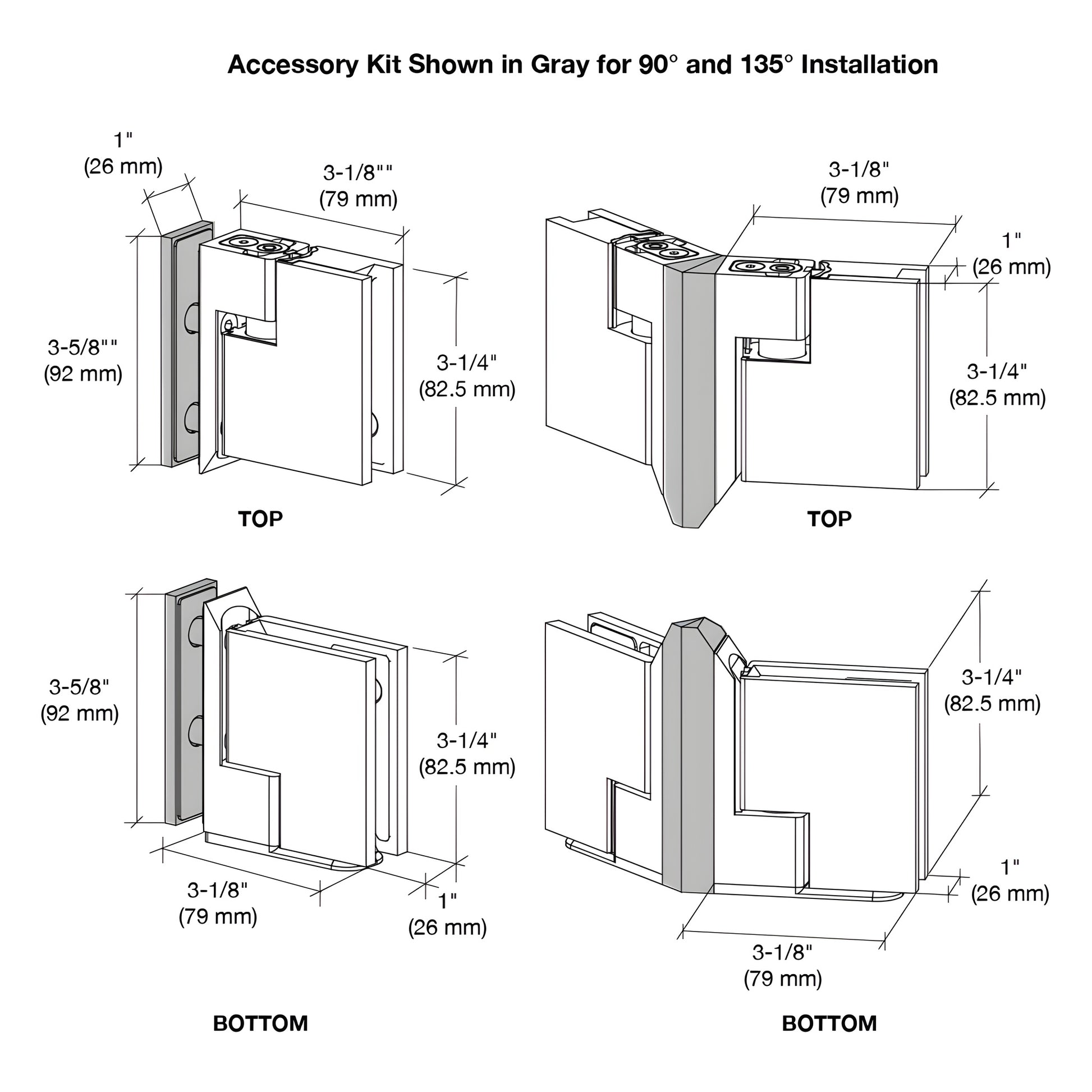

The <b>CRL Zero Hinge Accessory Kit</b> includes a set of clamping plates for installation as a 90° glass-to-glass application & a set of central wedges for installation as a 135° glass-to-glass application.

Note: The 135° application requires a different glass cut-out than the standard. Refer to the Technical Documentation for detailed instructions.

Specifications

Technical Resources

Brochures & Literature

Frameless Shower Door Hardware CatalogOpen PDF ↗

Hardware Finish Cross-Reference GuideOpen PDF ↗

Zero Shower Collection Product InformationOpen PDF ↗

Quote Request Forms

Frameless Shower Door Quote Request FormOpen PDF ↗

Specifications

Shower Door Hinges 3-Part SpecOpen DOC ↗

Templates

Zero Hinge 135 Degree Template 1 mm Fixed Panel Clearance.pdfOpen PDF ↗

Zero Hinge 135 Degree Template 4 mm Fixed Panel Clearance.pdfOpen PDF ↗

Zero Hinge 180 Degree Template 1 mm Fixed Panel Clearance.pdfOpen PDF ↗

Zero Hinge 180 Degree Template 4 mm Fixed Panel Clearance.pdfOpen PDF ↗

Zero Hinge 90 Degree Template 1 mm Fixed Panel Clearance.pdfOpen PDF ↗

Zero Hinge 90 Degree Template 4 mm Fixed panel Clearance.pdfOpen PDF ↗

Zero Hinge Wall Mount Template.pdfOpen PDF ↗

Cleaning & Maintenance

Frameless Shower Door Glass and Hardware Cleaning InstructionsOpen PDF ↗

CRL Matte Black Zero Hinge Accessory Kit for 90 Degree & 45 Degree Applications

Item # ZER0ACCKTMBL

Total $87.98

Quantity
