CRL AWS Matte Bronze 60 in 180° Rectangular Center Post Kit 2 x 2-5/8 in
CRL AWS Matte Bronze 60 in 180° Rectangular Center Post Kit 2 x 2-5/8 in
Regular price
$260.02 CAD
Regular price
Sale price
$260.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S60CKBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Center
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
60 in. (1524 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
Overview

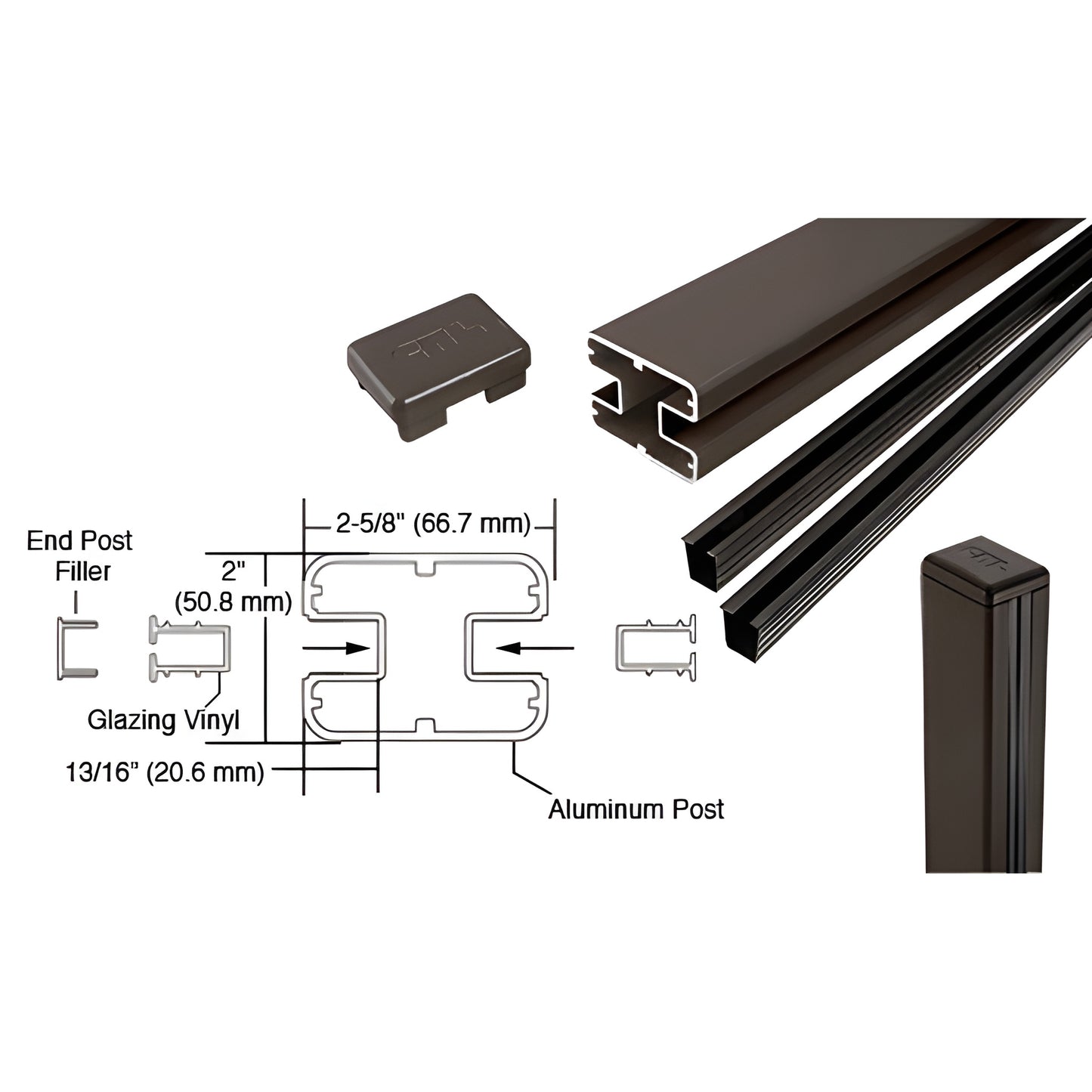

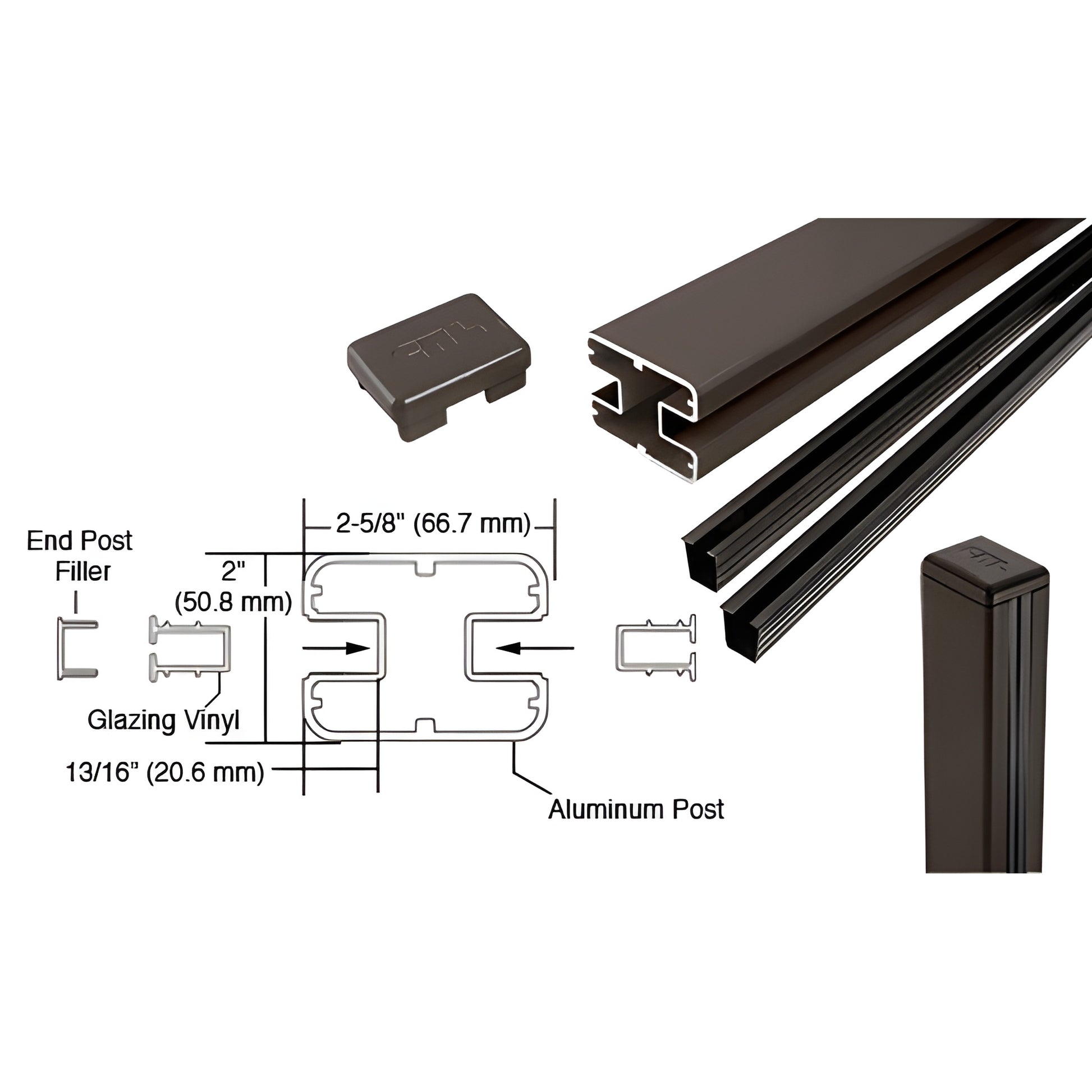

- Standard kit includes post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
CRL S60CKBRZ glass railing post kit is designed for end-post or 180° panel-joining applications. Ideal for glass balustrades and frameless glass railing systems, this post kit supports panels 1/4"–3/8" dry glazed with vinyl or 1/2" wet glazed glass. Available in multiple finishes with custom color options to match architectural or decorative needs.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
SKU: S60CKBRZ — Contact CRL for pricing, lead times, or to request custom colors.
Specifications
CAD Drawings - pdf
