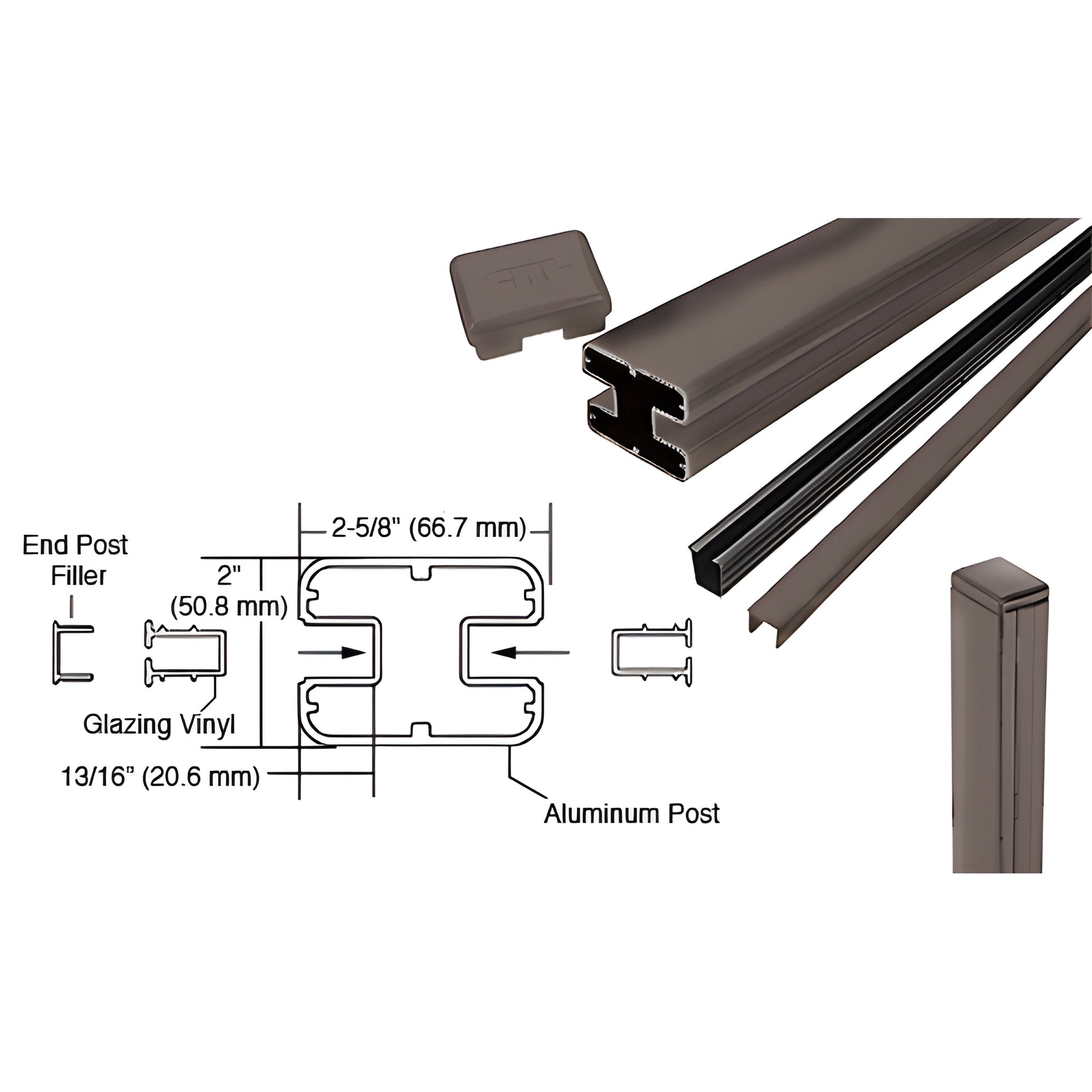

CRL Matte Bronze 72in Rect. Glass End Post Kit 2x2-5/8in 180°
Item# S72EKBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Configuration
End
Degree
180
Depth
2-5/8 in. (67 mm)
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
72 in. (1829 mm)
Material
Aluminum
Profile
Rectangular
Width
2 in. (51 mm)
- Standard kits include post, top cap, and vinyl
- Available in several attractive colors
- Custom colors available upon request
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
CRL glass railing post kit (SKU: S72EKBRZ) is designed for use as an end post in glass barrier and glass railing systems. The kit supports 1/4"–3/8" (6–10 mm) panels dry glazed with vinyl or 1/2" (12 mm) panels wet glazed, and is finished in several attractive factory-painted colors. Custom colors and powder-coat options are available by request for tailored architectural projects.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Do not exceed 24 sq ft (2.2 m²) per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Most shipping weights are approximate and have not been verified. If exact weight is required to calculate shipping costs, contact CRL Customer Service before placing your order. Product images are actual or close representations; colors may vary by monitor and video card.
Order the S72EKBRZ glass railing end post kit today to match your project’s glass thickness and finish—contact customer service for custom color and shipping details.
CAD Drawings - pdf
