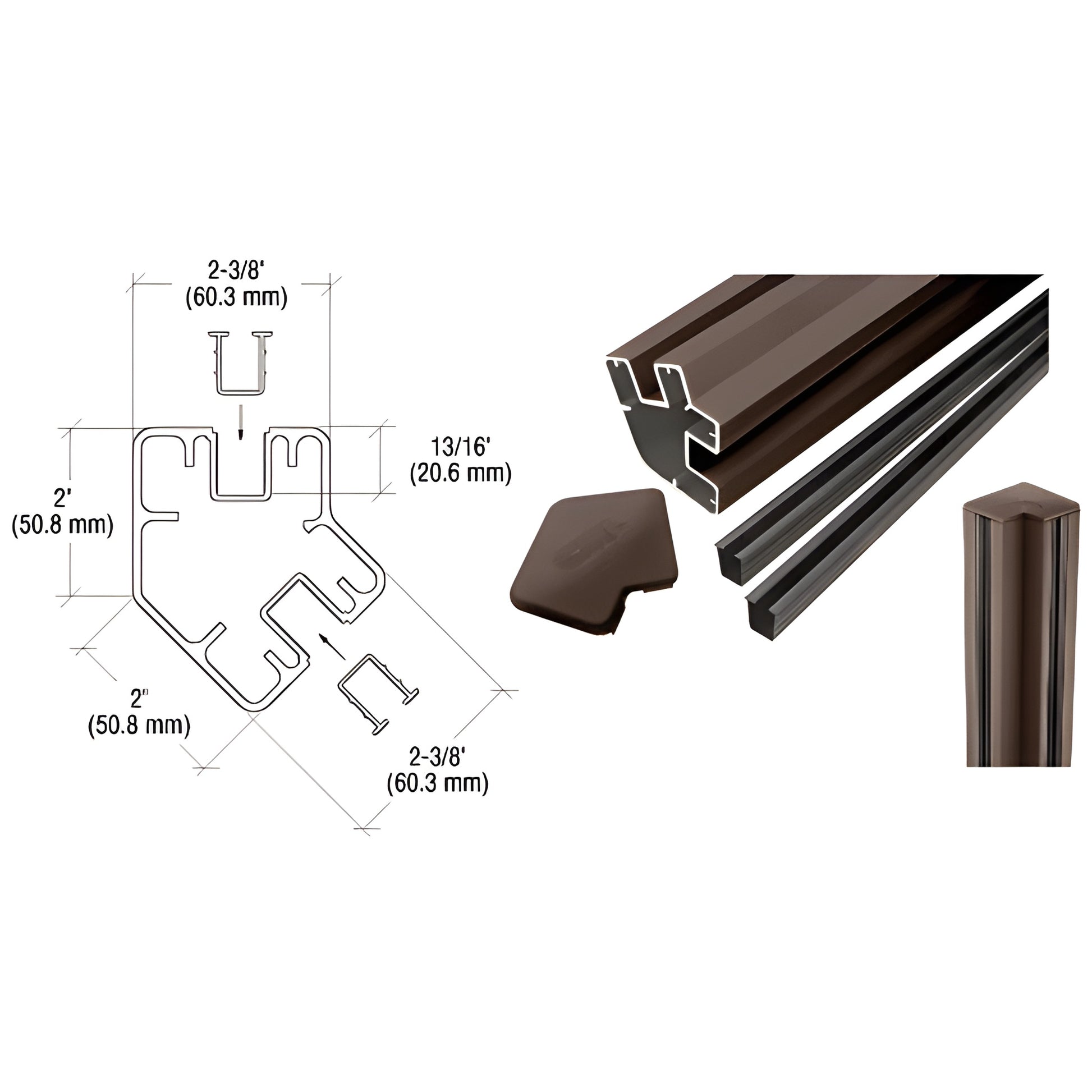

CRL AWS Matte Bronze 48-in 2x2-3/8-in 135° Glass Corner Post Kit
CRL AWS Matte Bronze 48-in 2x2-3/8-in 135° Glass Corner Post Kit
Regular price
$222.21 CAD
Regular price
Sale price
$222.21 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S485KBRZ
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Centerline
2 in. (51 mm)
Configuration
Corner
Degree
135
Finish/Color
Matte Bronze
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Length
48 in. (1219 mm)
Material
Aluminum
Profile
Rectangular
Width
2-3/8 in. (60 mm)
Overview
- Standard kits include post, top cap, and vinyl
- Available in several attractive colors; custom colors available upon request
- For joining two panels at a 135° angle (135-degree glass panel post kit)
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet glazed
These CRL Kits (SKU: S485KBRZ) are designed for fabricating posts that join two glass panels at a 135° angle. Ideal for frameless glass railing and partition applications requiring a 135-degree glass panel post kit, the kits support 1/4"–3/8" (6–10 mm) panels dry glazed with vinyl and 1/2" (12 mm) panels wet glazed. Available in several attractive finishes; custom colors can be requested for matching specific design schemes.
Installation limits: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product warning: All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Need a custom finish or help selecting the right 135-degree glass panel post kit? Contact CRL Customer Service to get assistance or place your order.
Specifications
CAD Drawings - pdf
