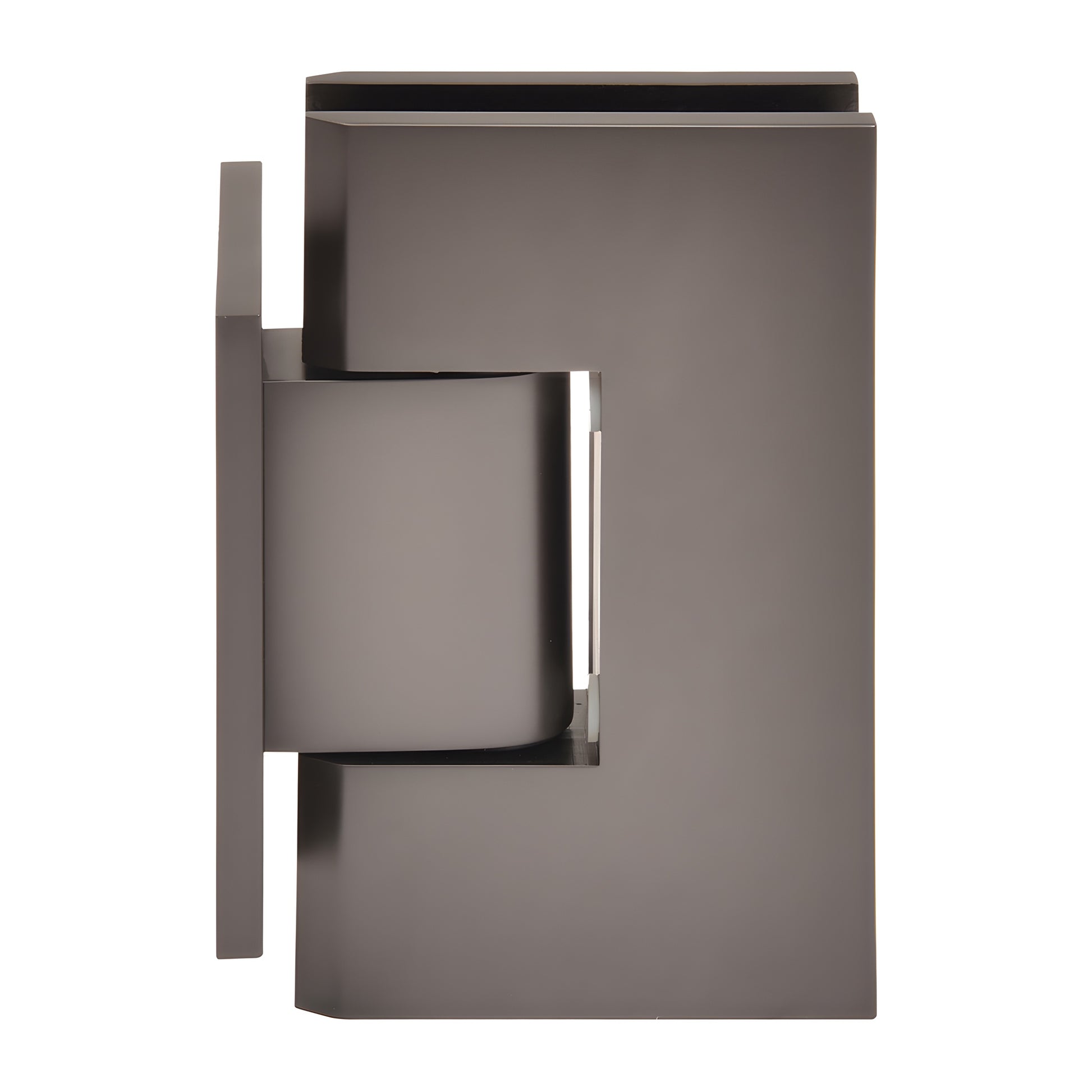

CRL Vienna 074 Matte Gunmetal Short Backplate Glass Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Available in several durable decorative finishes
• 3 year warranty

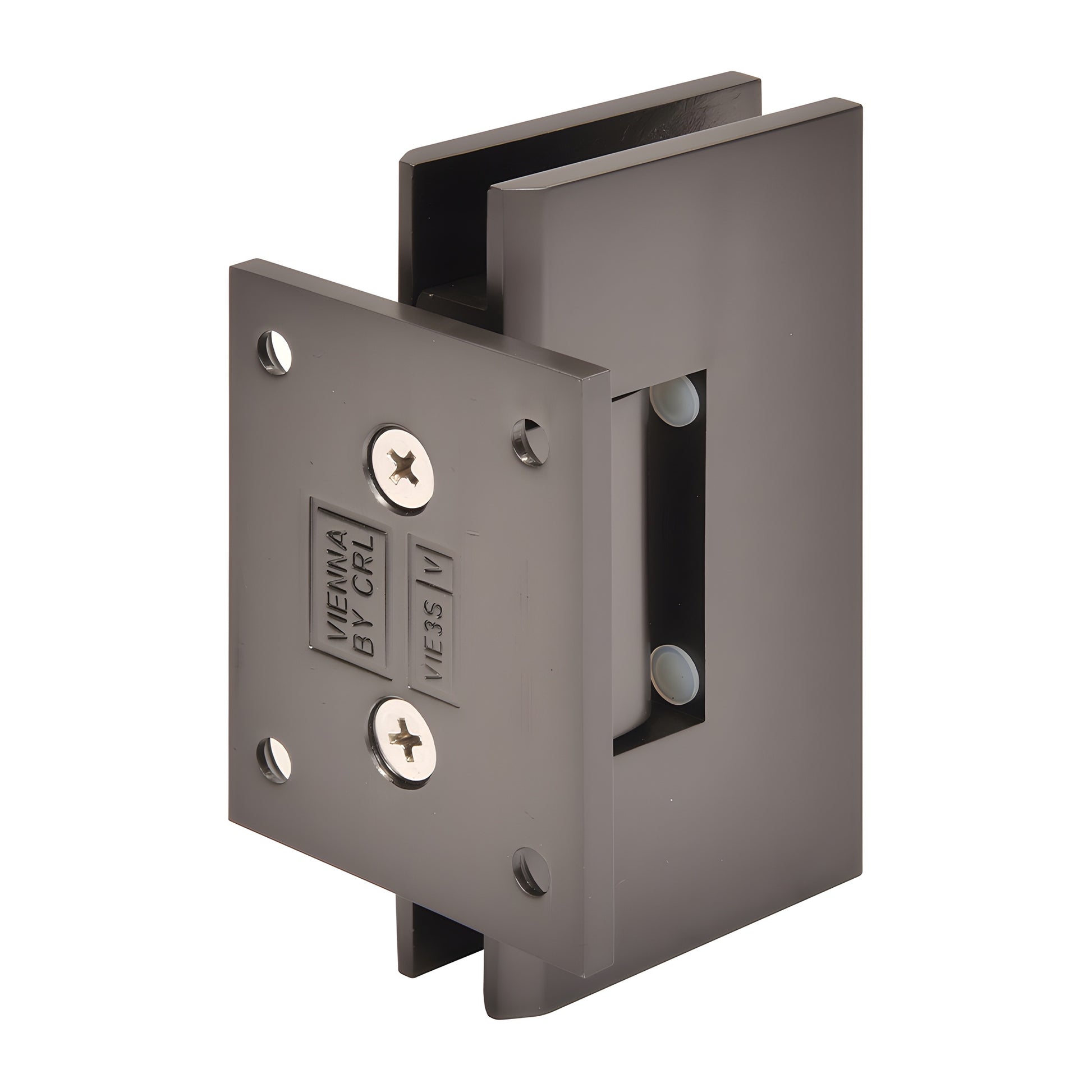

• Wall mount short back plate
• Use monolithic tempered safety glass

CRL Vienna Hinges (SKU V1E074MGM) are heavy-duty solid brass shower door hinges engineered for wider, heavier frameless shower doors where traditional hinges fail. Two internal steel pins provide template flexibility: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove the pins for greater adjustability and to fit CRL or some competitive rectangular, square-corner cut-outs. Ideal as a replacement hinge or for new frameless glass shower installations requiring robust tempered glass shower door hardware.

Standard Reversible Pivot Pin: Each Vienna Hinge includes a reversible pivot pin with one side set at 90° and the opposite side at 85° (standard models ship with 90° active). Rotate the pin (do not flip) to engage the alternate angle. Pre-set models ship with the 85° setting for a 5° tighter closure into the shower interior.

Custom Pivot Pin: Custom pivot pins up to 45° are available for off-angle wall-to-door conditions when the standard 5° adjustment is insufficient.

Load Capacity & Door Width:
Using two hinges with 3/8" (10 mm) glass: hold up to 100 lbs (45 kg), max door width 34" (864 mm).

Using two hinges with 1/2" (12 mm) glass: hold up to 100 lbs (45 kg), max door width 32" (813 mm).

Using three hinges with 3/8" (10 mm) glass: hold up to 130 lbs (59 kg), max door width 34" (864 mm).

Using three hinges with 1/2" (12 mm) glass: hold up to 130 lbs (59 kg), max door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass, corrosion-resistant finishes available
Hinge Swings: 90° in and 90° out
Closing
