CRL Medium-Duty 105Β° Concealed Overhead Door Closer, A End-Load Kit
CRL Medium-Duty 105Β° Concealed Overhead Door Closer, A End-Load Kit
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8170A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Floor Mount Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL7070, CRL9010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8760A
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Center-hung end-load hardware package for doors with 1" (25 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- U.L. listed; five-year limited warranty

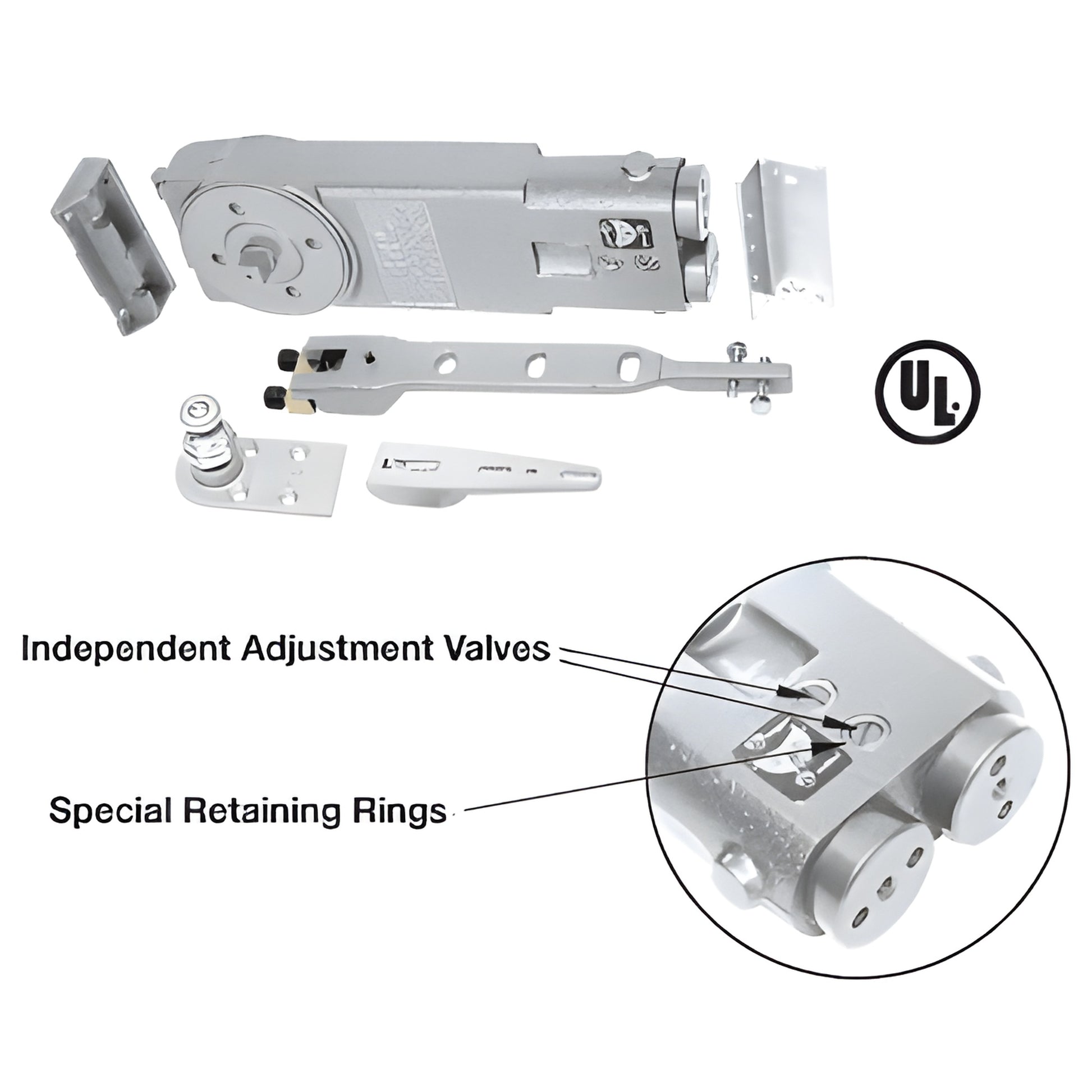

These CRL Overhead Door Closer Kits (SKU: CRL8170A) include a Medium spring-size door closer, mounting clips, a Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is designed for doors with 1" deep top rails. Available in both 90Β° and 105Β° hold-open or no-hold-open models. Additional spring sizes, hardware options, and concealed accessories are available.
Independent Adjustment Valves
Non-critical valves independently control closing speed and latching speed for precise door control.
Special Retaining Rings
Retaining rings prevent adjustment screws from being fully backed out of the door closer body.
NOTE: Install an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Product Warning:
This closer is not for use on doors weighing more than 200 lbs.
Shop CRL8170A overhead door closer kits now to secure 1" top-rail doors with adjustable floor-or-threshold pivoting and UL-listed reliability.
