CRL Medium-Duty 105° No Hold-Open Overhead Concealed Door Closer Body
CRL Medium-Duty 105° No Hold-Open Overhead Concealed Door Closer Body
Regular price
$136.32 CAD
Regular price
Sale price
$136.32 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL7172
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Feet Per Roll
100100
Handing
Double Acting
Includes
CRL8010FS
Maximum Door Weight
200
No Hold Open
105°
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1/2
Spring Size
8.5
UL Listed
Yes
Overview
- Interchangeable with all Jackson® style overhead concealed door closers
- 20 models available (SKU: CRL7172)
- Conveniently packaged with mounting clips, templates, and instructions
- 5-year limited warranty
- UL listed

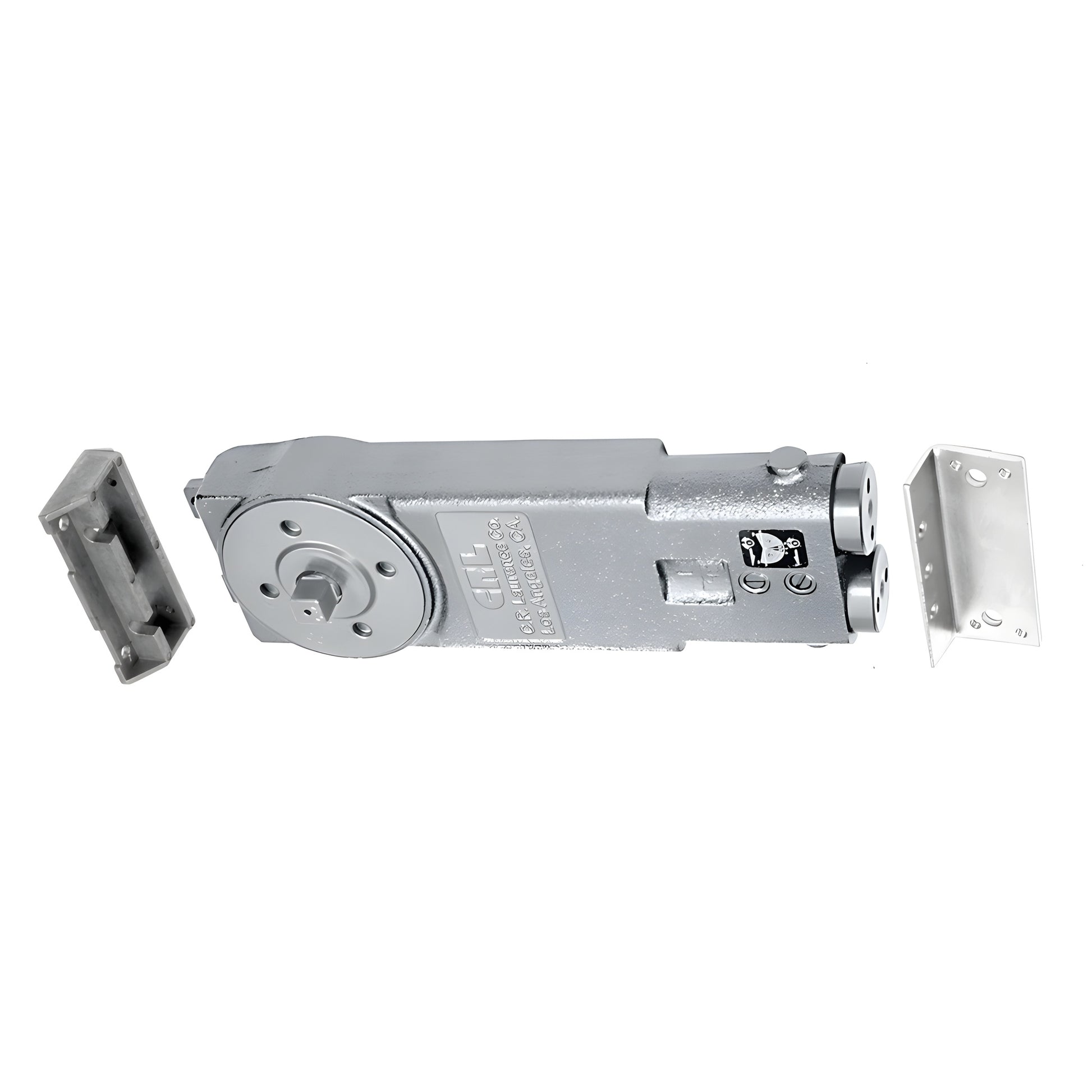

Buying our Door Closer Bodies with Mounting Clips lets you replace a worn closer affordably or build a custom overhead concealed door closer package by adding only the accessory parts you need (pivots, arms, etc.). Each closer body ships with mounting clips, templates, and installation instructions for faster installation.

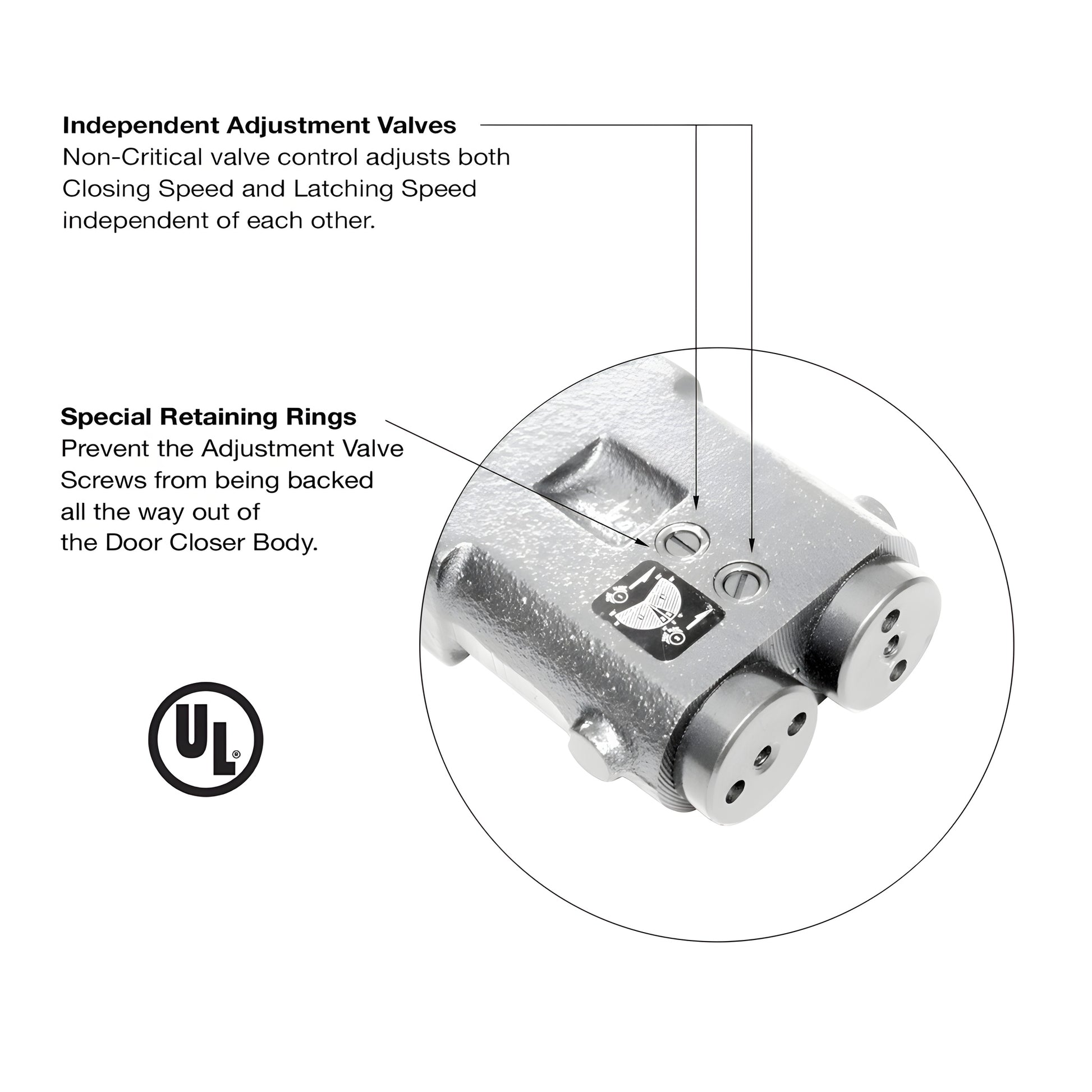

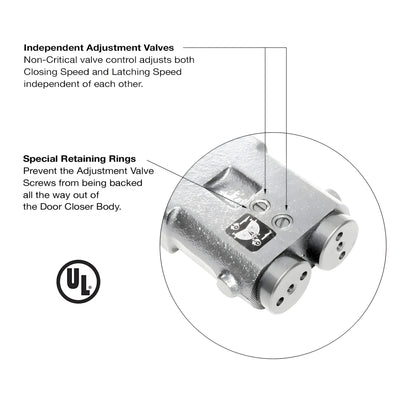

Independent adjustment valves
Non-critical valve control provides independent adjustment of both closing speed and latching speed for precise door control.
Special retaining rings
Retaining rings prevent adjustment valve screws from being backed completely out of the door closer body, reducing maintenance issues.
Note: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of maximum allowable door swing.
Weight and size limitations:
Door weight: 200 lbs. (91 kg)
Exterior door width: 42" (1.07 m)
Interior door width: 48" (1.22 m)
All doors height: 96" (2.44 m)
Replace or customize your Jackson-style overhead concealed door closer with CRL7172 — order now for fast shipping and reliable performance.
