CRL 105Β° No Hold Open Medium-Duty Concealed Door Closer GE Side-Load
CRL 105Β° No Hold Open Medium-Duty Concealed Door Closer GE Side-Load
Regular price
$198.80 CAD
Regular price
Sale price
$198.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8172GE
Shipping Weight: 11.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.5 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL7172, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8772S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- GE center-hung, side-load hardware package for doors with 1/2" (12 mm) deep top rails
- Suitable for doors 30" to 42" (762 mm to 1.07 m) wide
- U.L. Listed with a five year limited warranty

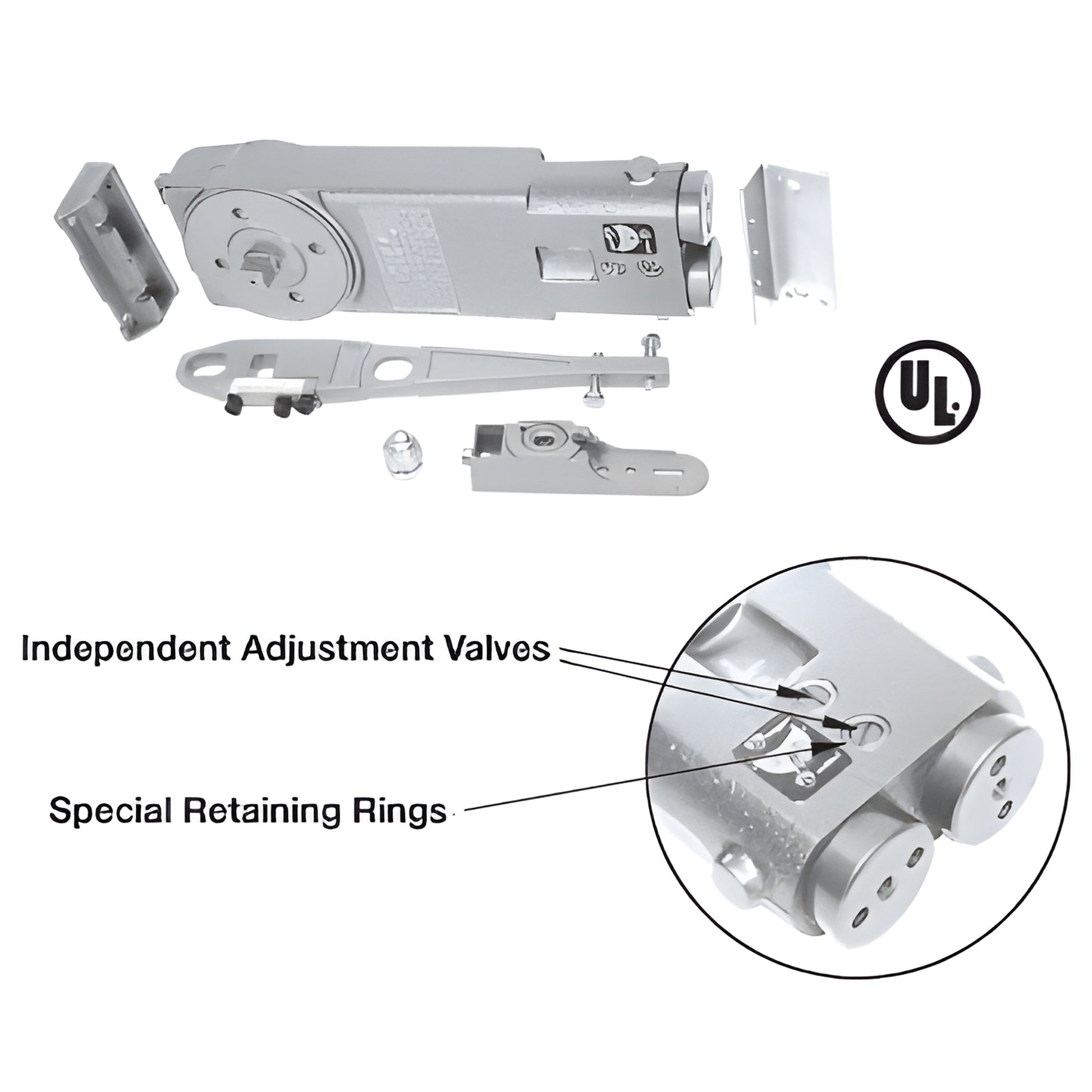

The CRL GE Overhead Closer Package (SKU: CRL8172GE) is a medium-duty overhead door closer system designed for commercial and residential aluminum doors with 1/2" deep top rails. The package includes CRL8010FS mounting clips, CRL8010S "S" side-load arm, CRL8010GE "GE" adjustable threshold-mount bottom pivot set, and complete installation instructions. The closer features dual independent valvesβone valve controls the main closing speed, the other controls latchingβfor reliable, adjustable performance. Choose 90Β° or 105Β° hold-open models, or no hold-open. Fits standard 1-3/4" x 4" (44.5 x 102 mm) or larger header extrusions and is ideal as a GE center-hung side-load overhead door closer for 30"β42" doors.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
Key differentiators: UL listing and five-year limited warranty, dual independent valves for precise closing and latching control, and compatibility with standard header extrusions. Order the CRL8172GE GE Overhead Closer Package today to ensure smooth, reliable door operation.
