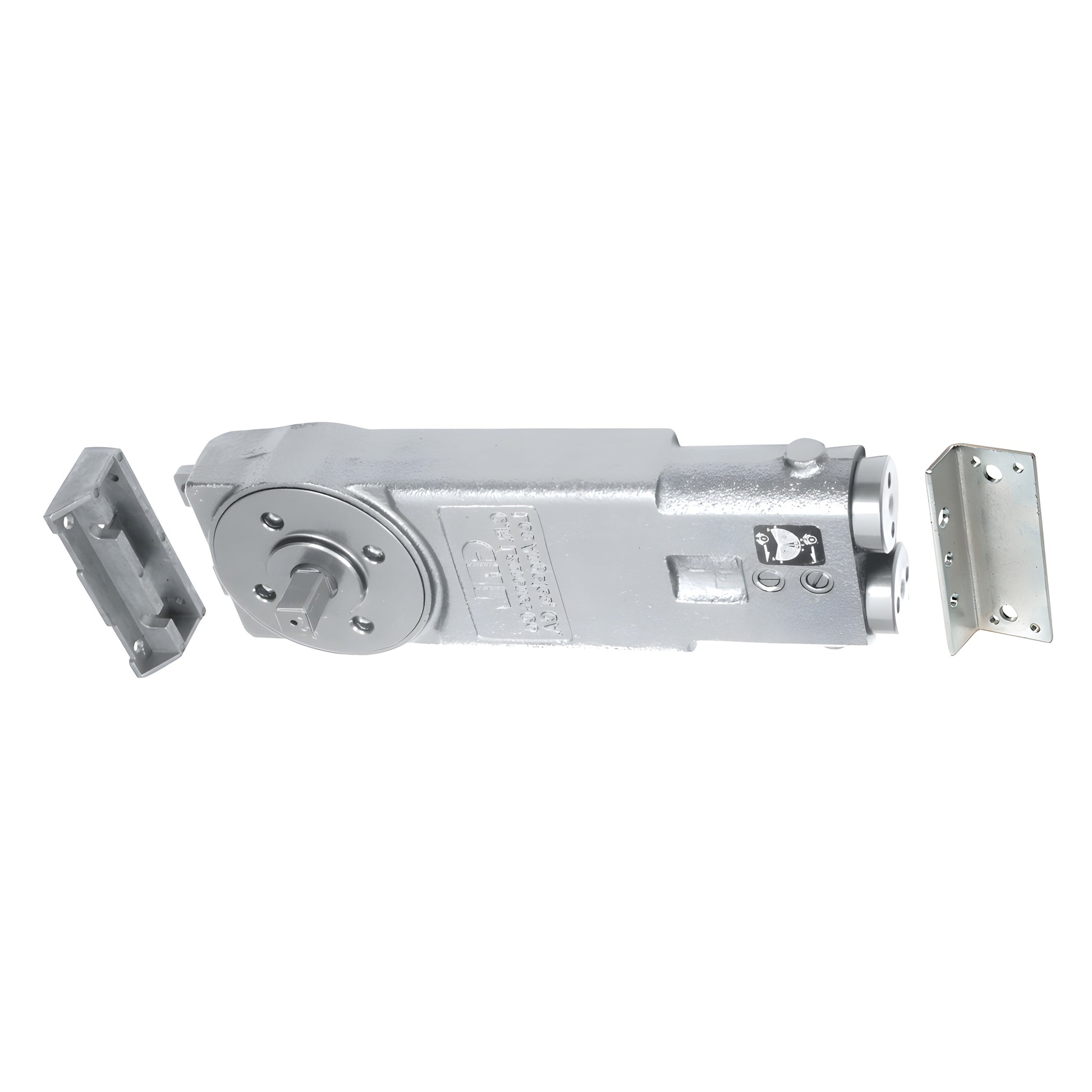

CRL Med-Duty 105° No-Hold Overhead Concealed Door Closer 3/4in Clips

• Interchangeable with Jackson®-style overhead concealed door closers and similar brands
• Extended 3/4" (19 mm) long spindle — ideal for patch fittings and door rail hardware
• Adjustable models available with 90° and 105° hold-open or no hold-open options
• UL Listed for safety and code compliance
• Includes mounting clips, templates and instructions for easy installation

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU: CRL9172) features a 3/4" (19 mm) extended spindle preferred for use with patch hardware and door rails. The closer uses dual independent adjustment valves—one for closing speed and one for latching speed—to provide precise closing performance. Models are available with 90° or 105° hold-open or without hold-open. Mounting clips, templates and instructions are included for fast, accurate installation.

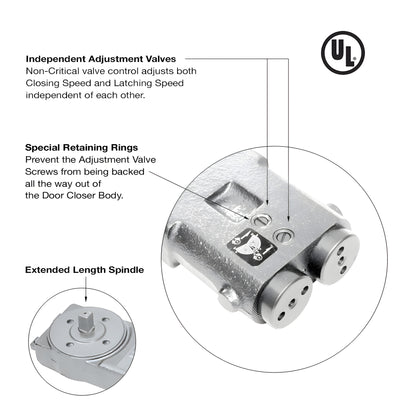

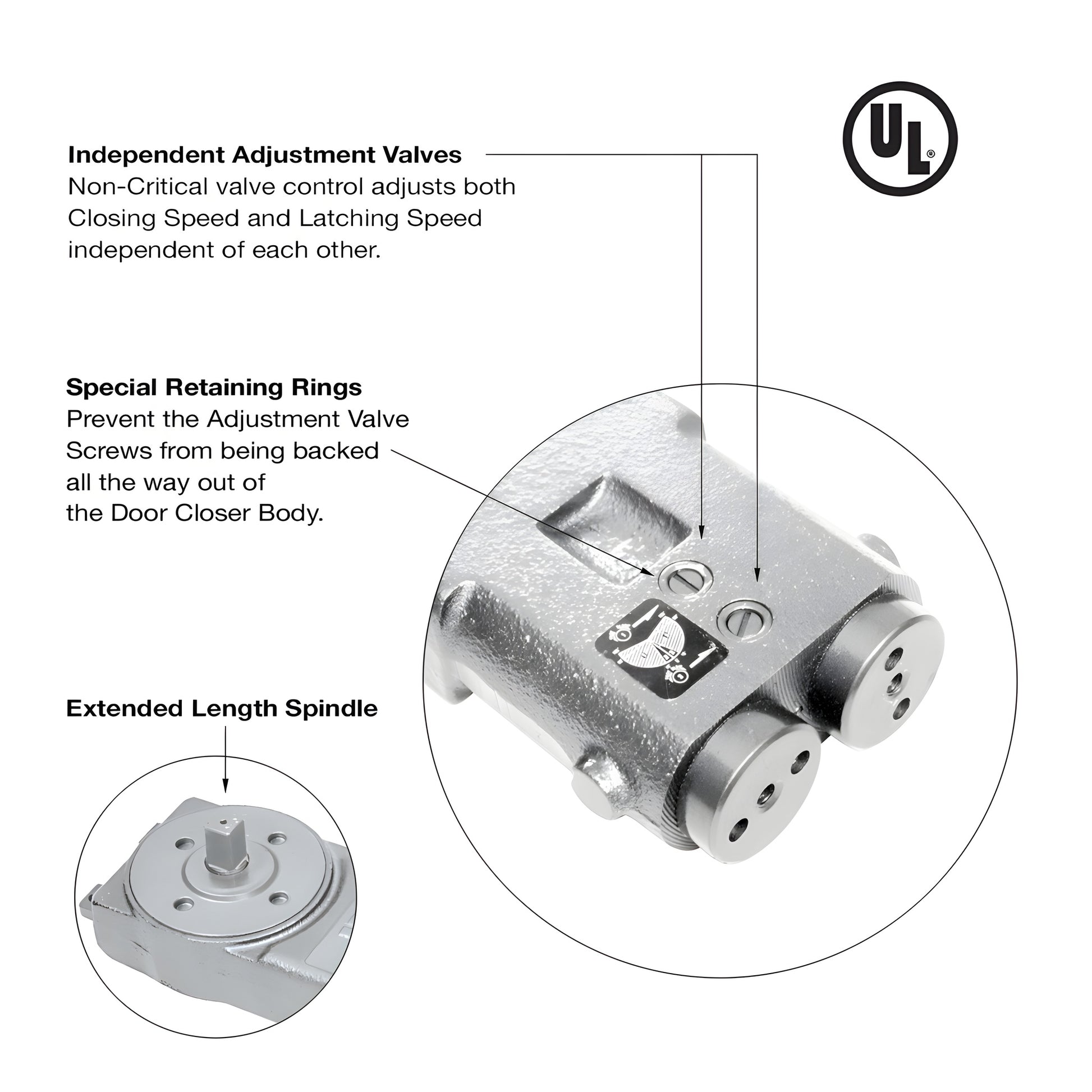

Extended Length Spindle
3/4" (19 mm) spindle for patch fittings, door rail hardware, or where extra reach is required.

Independent Adjustment Valves
Separate, non-critical valve control for Closing Speed and Latching Speed for reliable, adjustable performance.

Special Retaining Rings
Prevent valve screws from backing out of the closer body for long-term reliability.

Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
Maximum Door Height: 96" (2.44 m)

Order CRL9172 today to get a UL-listed, adjustable overhead concealed door closer optimized for patch fittings and door rails.
