CRL 105Β° Overhead Concealed Door Closer β Medium, No Hold, A End-Load
CRL 105Β° Overhead Concealed Door Closer β Medium, No Hold, A End-Load
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8172A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Floor Mount Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL7072, CRL9010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8772A
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Center-hung end-load hardware package for doors with 1" deep top rails (CRL8172A)
- For doors with 1" (25 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- U.L. listed door closer kit with a five year limited warranty

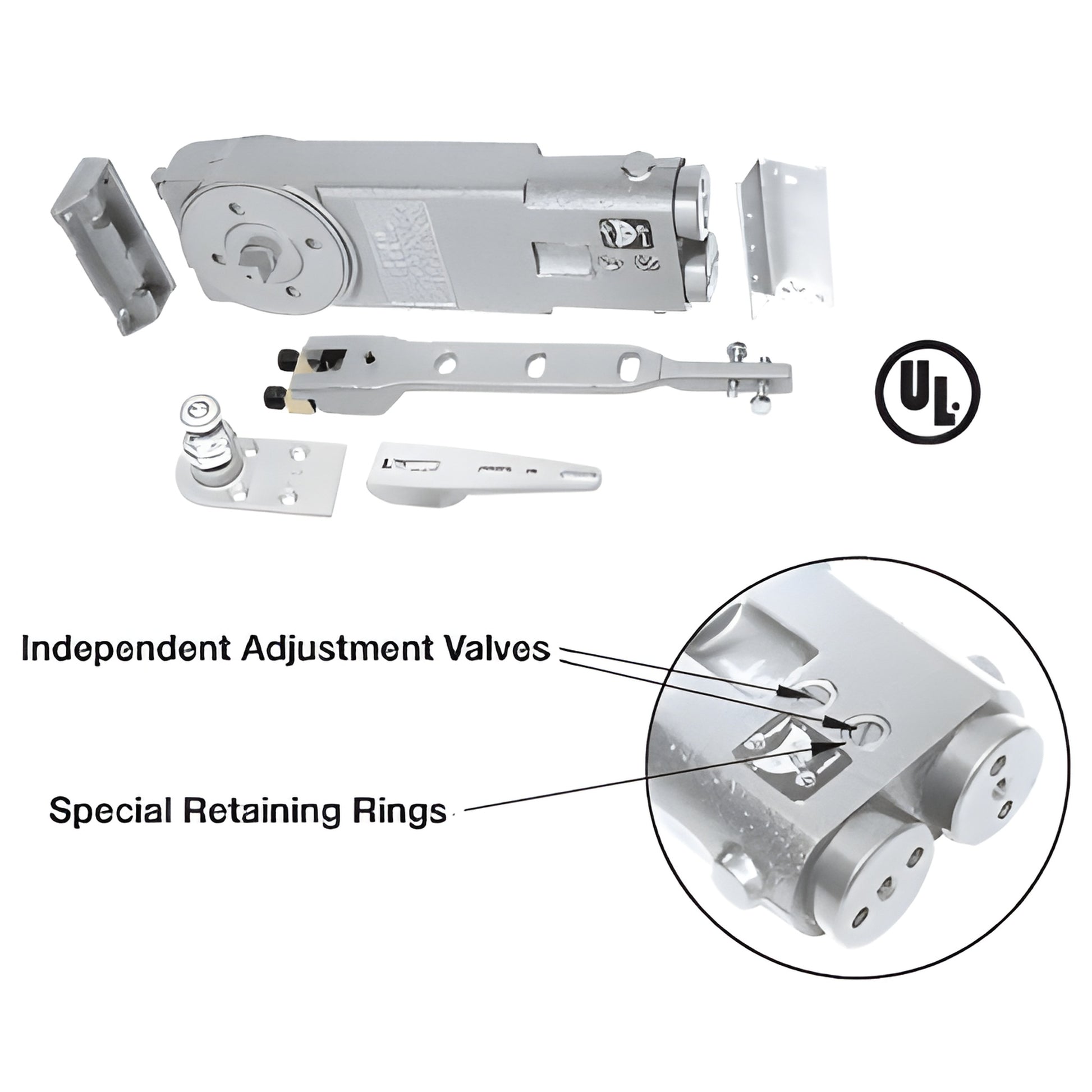

These CRL Overhead Door Closer Kits include a medium spring-size door closer body, mounting clips, a Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set. The closer features independent, dual-action valves to separately control closing speed and latching speed. Available in both 90Β° and 105Β° hold-open and no-hold-open models. Door closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and overhead concealed door closer accessories are available.
Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for reliable, consistent performance.
Special Retaining Rings
Built-in retaining rings prevent the adjustment valve screws from backing completely out of the door closer body.
NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
Key differentiators: Center-hung end-load design for 1" top rails, adjustable dual-purpose bottom pivot (floor or threshold), independent adjustment valves, U.L. listed, five year limited warranty. Order CRL8172A today to secure a durable, adjustable door closer kit for narrow top-rail doors.
