CRL Medium-Duty Concealed Overhead Closer 90° Hold-Open 3/4" Spindle
CRL Medium-Duty Concealed Overhead Closer 90° Hold-Open 3/4" Spindle
Regular price
$134.90 CAD
Regular price
Sale price
$134.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9160
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
90°
Includes
CRL8010FS
Maximum Door Weight
200
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
Spring Size
8.5
UL Listed
Yes
Overview
- Interchangeable with All Jackson® style overhead concealed door closers and similar brands
- Extended 3/4" (19 mm) long spindle—ideal for patch fittings and door rail hardware
- Available in adjustable models with 90º and 105º hold-open or no hold-open options
- UL Listed
- Conveniently packaged with mounting clips, templates, and instructions

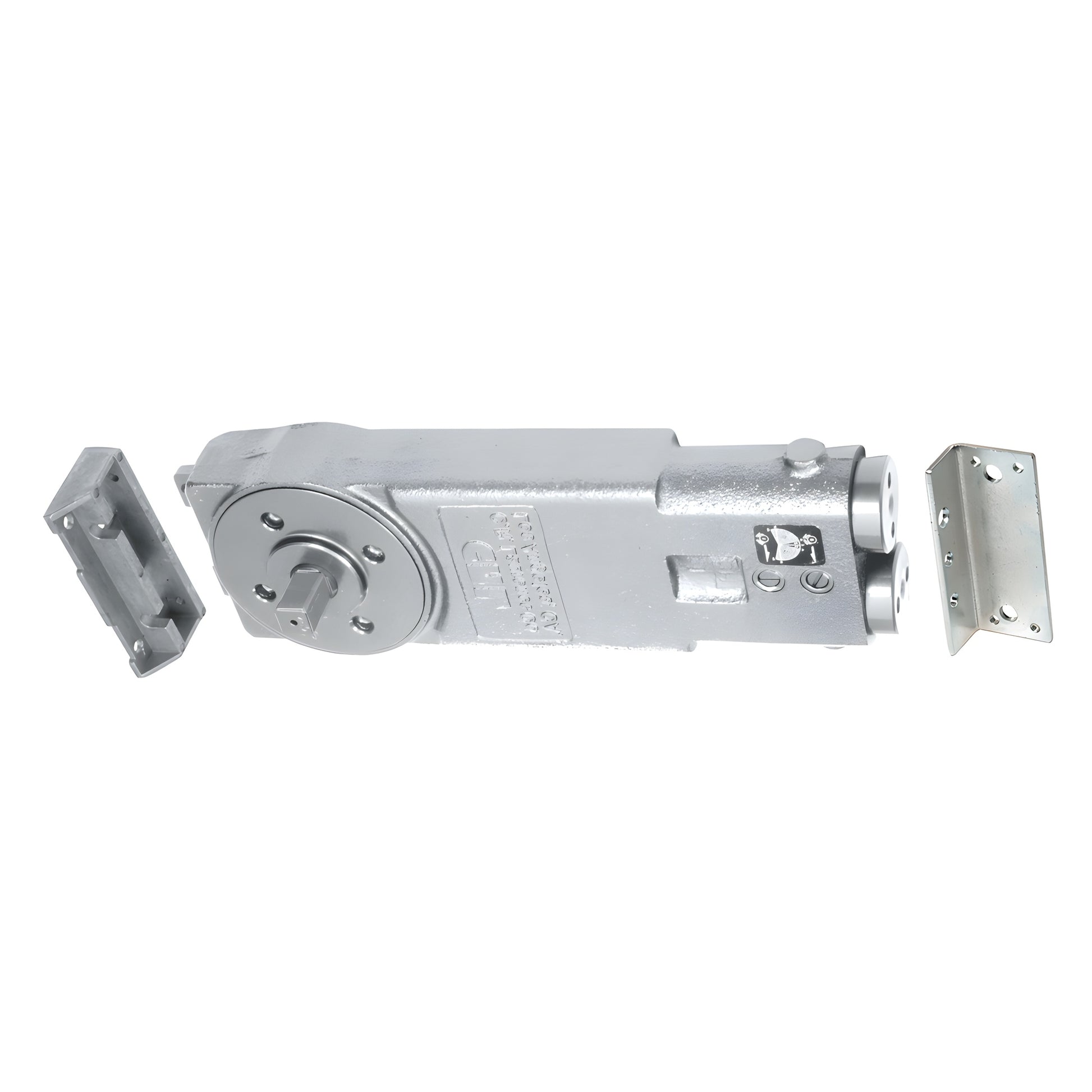

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU: CRL9160) features a 3/4" (19 mm) extended spindle preferred for patch hardware and door rails. The closer uses dual-action, independent adjustment valves—one for closing speed and one for latching speed—so you can fine-tune operation without critical adjustments. Special retaining rings prevent valve screws from backing out. Interchangeable with International, Jackson® and similar overhead concealed closers. Mounting clips and installation instructions are included.
Extended Length Spindle
3/4" (19 mm) spindle for patch fittings, door rail hardware, or when extra reach is required.

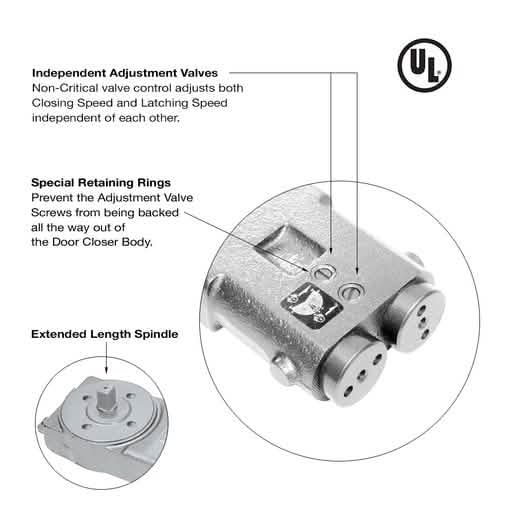

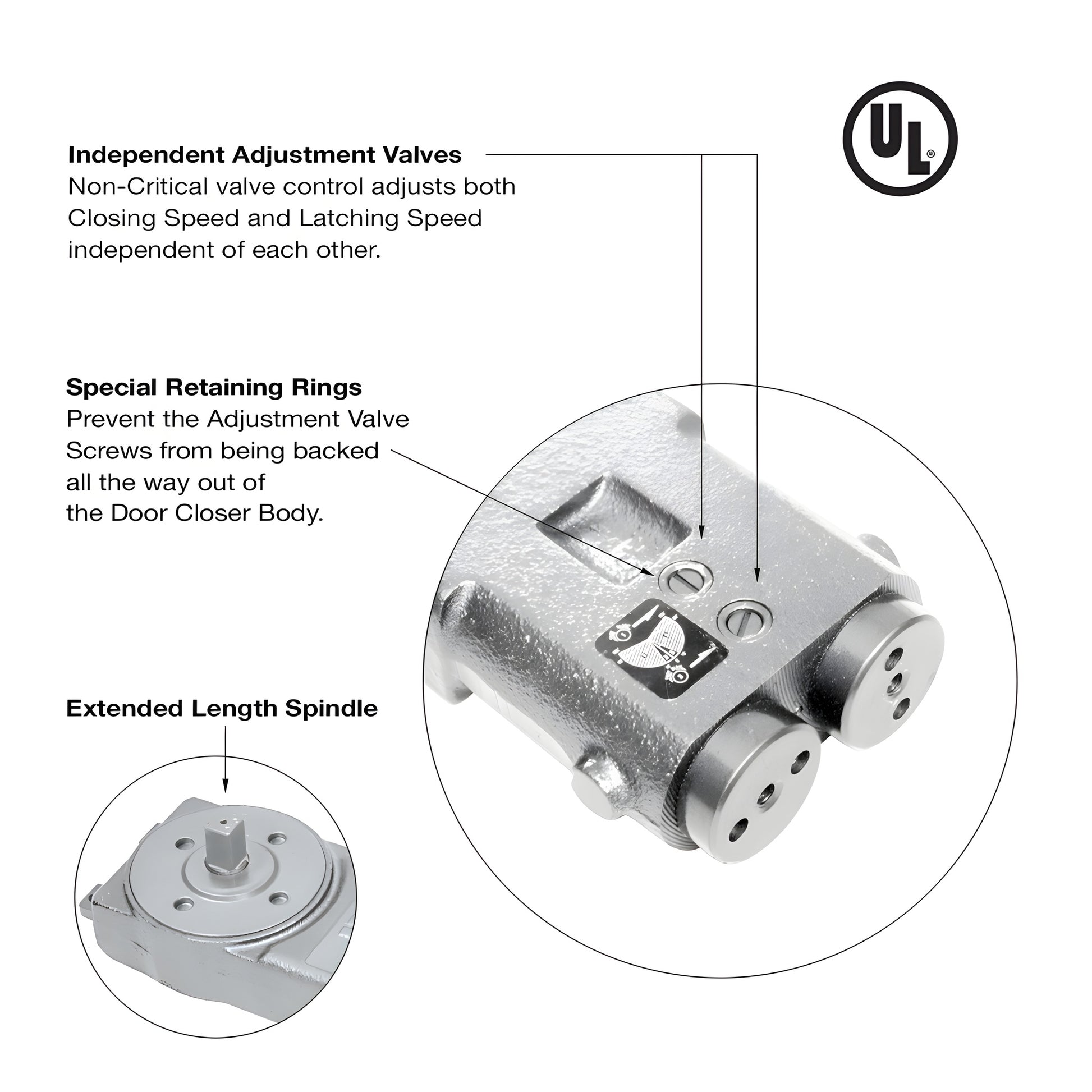

Independent Adjustment Valves
Separate, non-critical valves adjust closing speed and latching speed independently for reliable door control.
Special Retaining Rings
Prevent adjustment valve screws from being backed out of the closer body.
Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Order CRL9160 now to get an UL-listed, extended-spindle overhead concealed door closer designed for patch fittings and door rails.
