CRL 90Β° No-Hold-Open Overhead Concealed Door Closer, Medium Duty S Side-Load
CRL 90Β° No-Hold-Open Overhead Concealed Door Closer, Medium Duty S Side-Load
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8162S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL7162, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8762S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

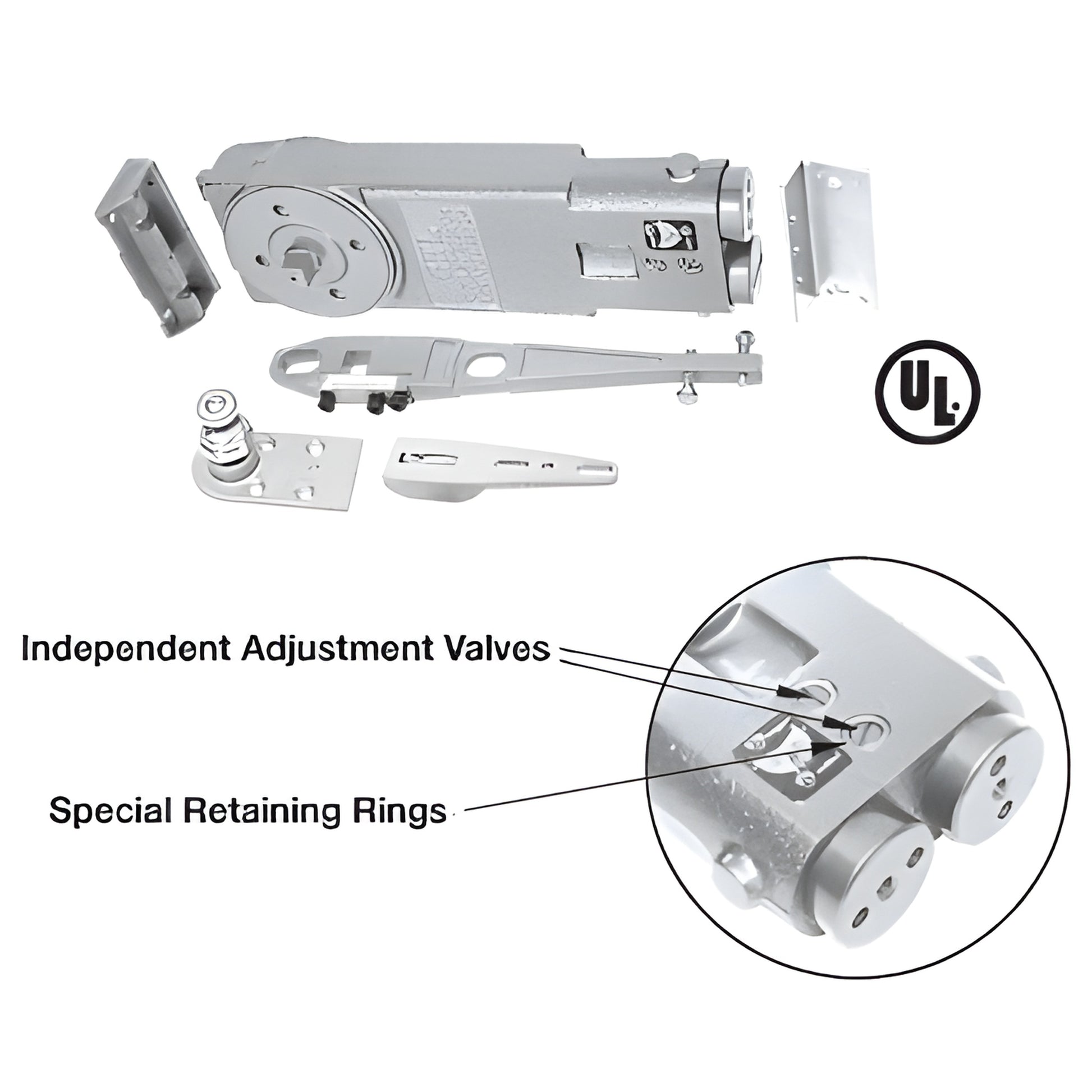

These CRL Overhead Door Closer Kits (SKU: CRL8162S) include a medium spring-size door closer, mounting clips, a Type S side-load arm, and an adjustable DP dual-purpose bottom pivot set (or GE bottom pivot set). The closer body fits into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Available with 90Β° and 105Β° hold-open or no-hold-open options. Ideal for storefronts and aluminum-framed doors requiring an overhead concealed door closer for 1/2" top rails.
Independent Adjustment Valves
Non-critical valves allow separate, precise control of closing speed and latching speed for consistent door operation.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the closer body, improving durability and reducing maintenance.
Important Note
Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning
This closer is not to be used on doors weighing more than 200 lbs.
Order the CRL8162S overhead door closer kit for reliable, adjustable door control β add to cart or contact CRL Customer Service for assistance.
