CRL Medium-Duty Low-Profile Floor-Mounted Door Closer 90° Hold Open

• 264 lb capacity; fits doors up to 42"

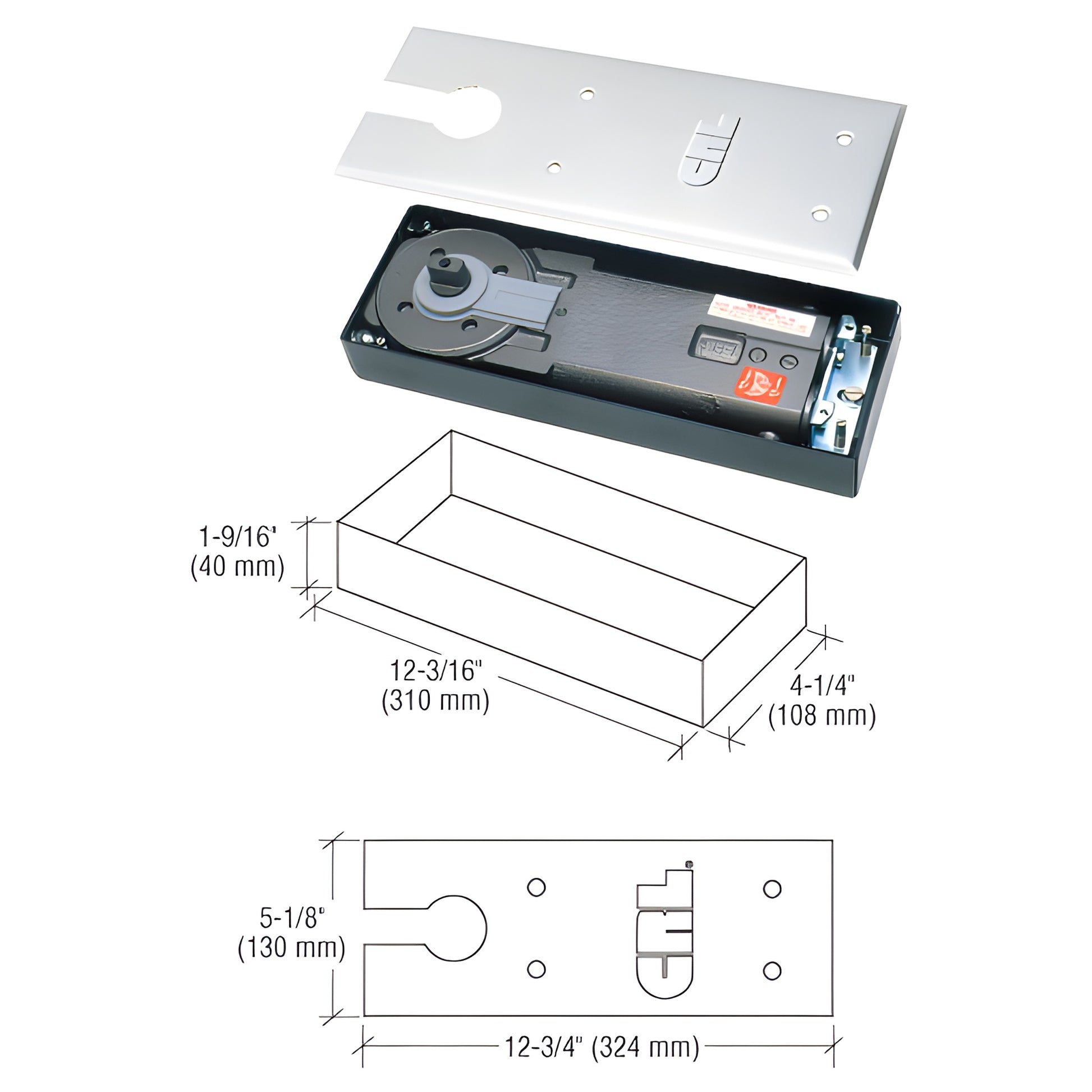

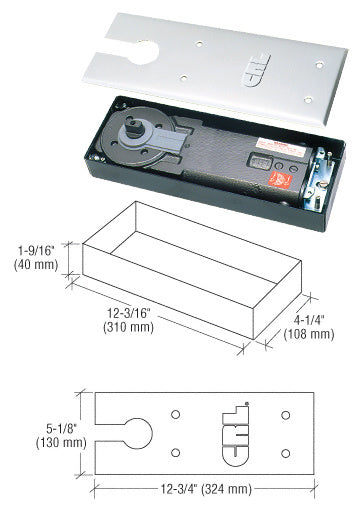

• Low-profile 1-9/16" (40 mm) floor cut-out
• Interchangeable spindle heights (1/8" spindle included)
• UL Listed, 5 Year Limited Warranty

These CRL Shallow Depth Floor Mounted Door Closers (SKU: CRL8360) are engineered for installations where limited floor excavation is required—ideal for upper-floor openings and retrofit projects. The shallow 1-9/16" (40 mm) cut-out preserves subfloor material to better support the door weight while providing reliable floor-mounted operation. Separate adjustment valves allow precise control of closing and latching speeds. Models available with 90° or 105° hold-open and no hold-open options.

The closer ships with a 1/8" (3 mm) collar-height spindle, yielding a 5/16" (8 mm) clearance from the finished floor to the door bottom; optional spindle heights are available to match different finished floor conditions. Additional accessories include cover plates, pivots, center-hung and offset arms for flexible installation.

NOTE: Use an auxiliary floor or overhead door stop to protect the closer and entryway from damage caused by over-extension of maximum door swing.

SPECIFICATIONS:
Maximum Door Weight: 264 lbs (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)


Purchase the CRL8360 shallow depth floor mounted door closer for compact, high-support floor installations—contact us to order or get technical assistance.
