CRL Medium-Duty Overhead Concealed Door Closer Body 90° Hold-Open
CRL Medium-Duty Overhead Concealed Door Closer Body 90° Hold-Open
Regular price
$134.90 CAD
Regular price
Sale price
$134.90 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL7160
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
90°
Includes
CRL8010FS
Maximum Door Weight
200
Recommended Door Type
Aluminum, Hollow Metal
Spindle
1/2
UL Listed
Yes
Overview
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- 20 Models Available
- Conveniently Packaged with Templates and Instructions
- 5 Year Limited Warranty
- UL Listed

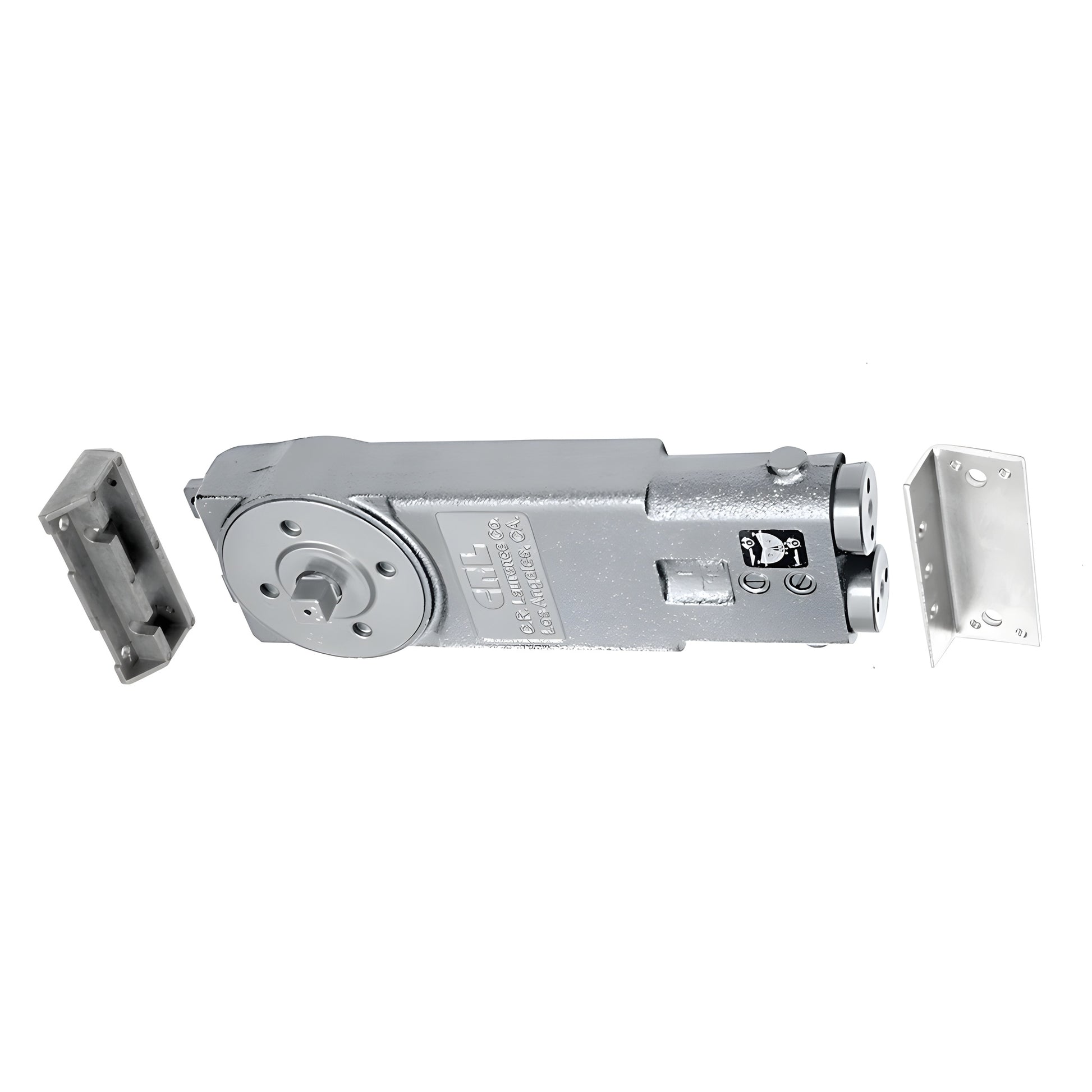

Our Door Closer Bodies with Mounting Clips (SKU: CRL7160) are ideal for cost-effective replacement or for building a custom Jackson® style overhead concealed door closer. Buy only the closer body to replace a worn unit and save, or add accessories—pivots, arms, and more—to assemble the exact concealed door closer package you need. Each closer body ships with mounting clips, templates, and clear instructions.

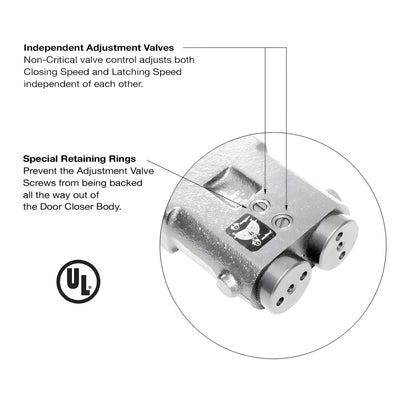

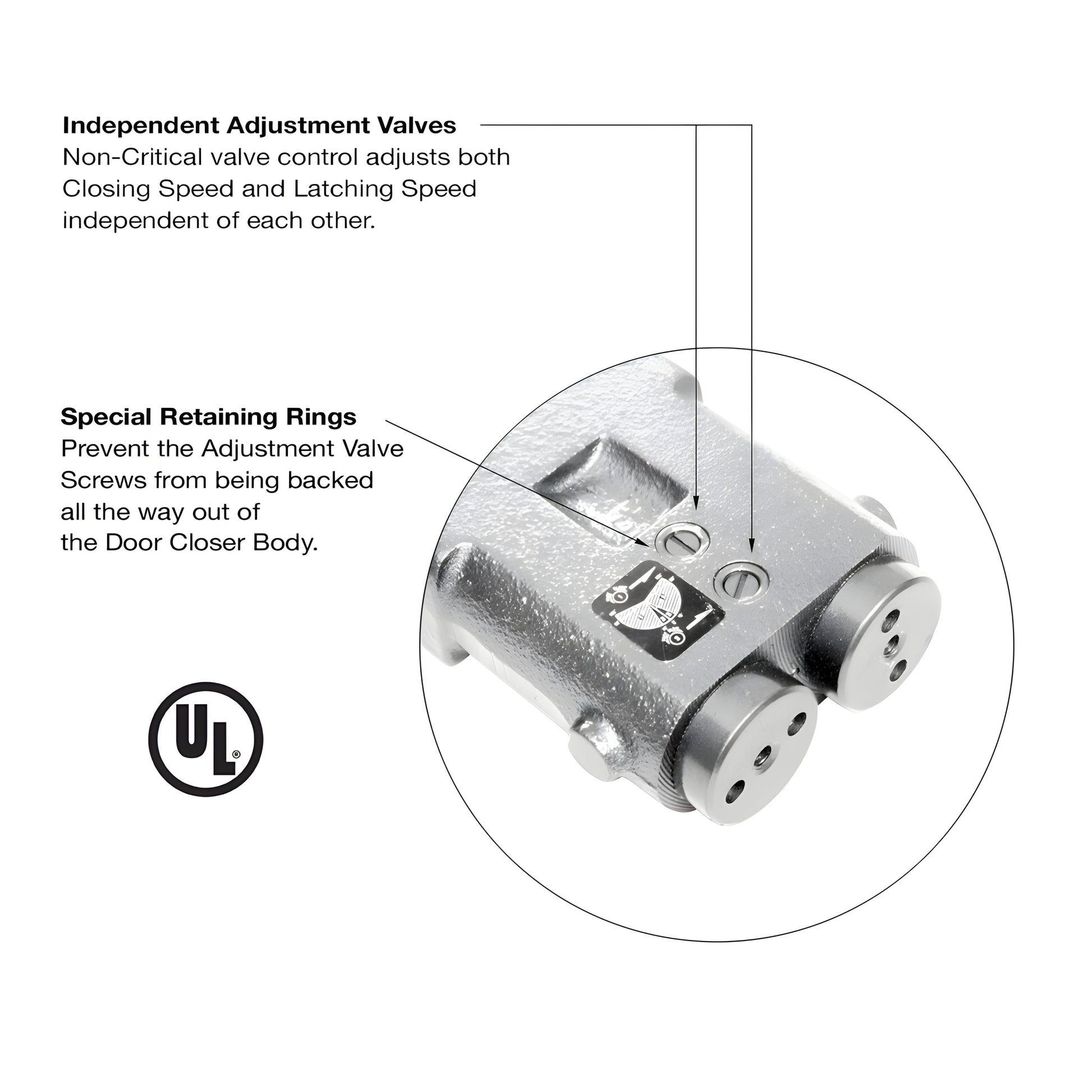

Independent Adjustment Valves
Non-critical valve control lets you adjust Closing Speed and Latching Speed independently for precise door operation.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the door closer body, improving reliability on heavy-use doors.
NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.
Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Order CRL7160 today to replace or customize your Jackson® style overhead concealed door closer—contact us for volume pricing or technical questions.
