CRL 90Β° Concealed Overhead Door Closer, Medium Duty, A End-Load
CRL 90Β° Concealed Overhead Door Closer, Medium Duty, A End-Load
Regular price
$193.12 CAD
Regular price
Sale price
$193.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8160A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL7160, CRL9010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8760A
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Center-hung endβload hardware package for doors with 1" deep top rails (1" / 25 mm)
- For doors with 1" (25 mm) top rail depth
- Adjustable dualβpurpose bottom pivot set for floor or threshold mounting
- U.L. listed with a five year limited warranty

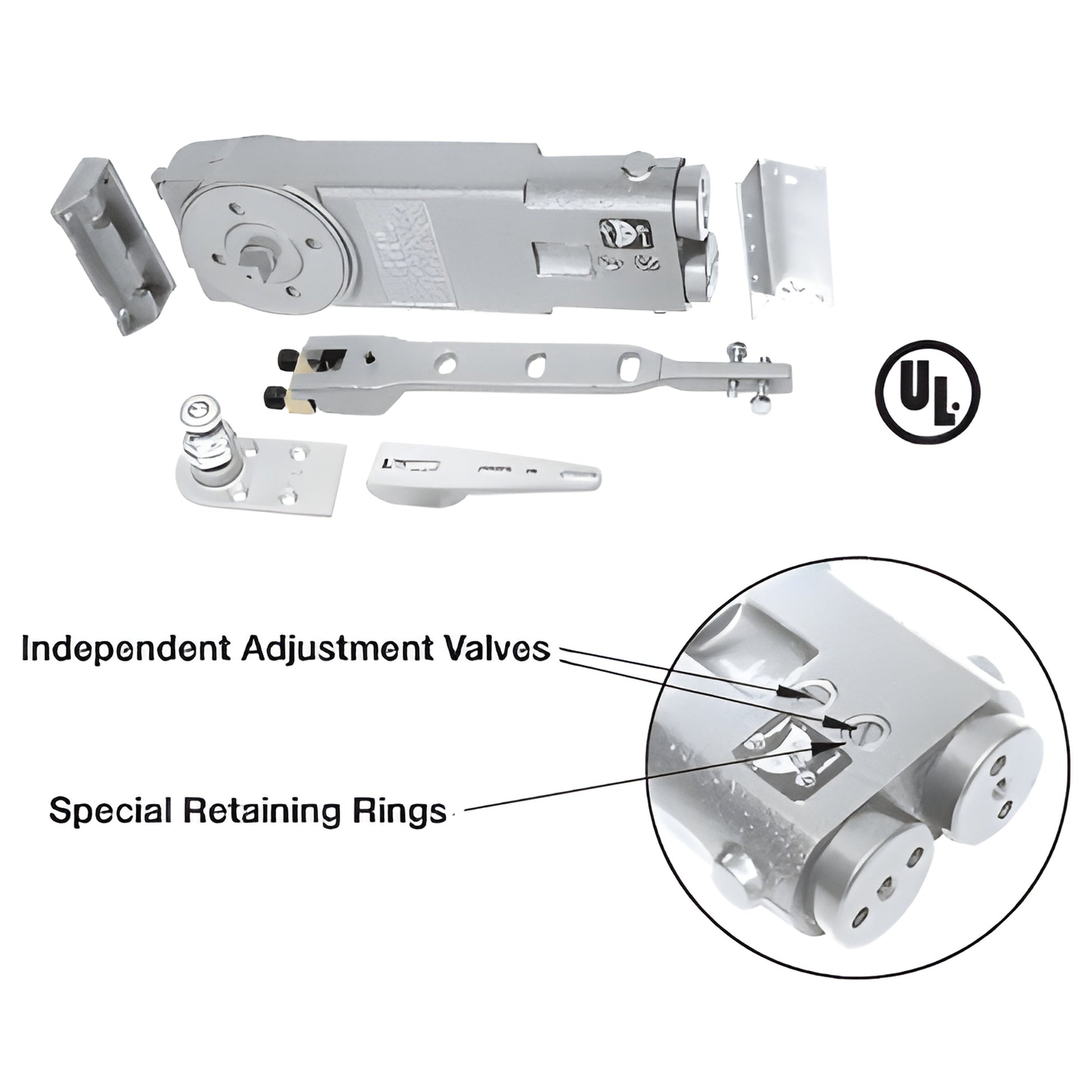

These CRL Overhead Door Closer Kits (SKU: CRL8160A) include a Medium spring size door closer body, mounting clips, a Type "A" endβload arm, and a "DP" adjustable dualβpurpose bottom pivot set. The closer uses independent, dualβaction valves to control both closing and latching speeds for reliable, adjustable performance. Models are available with 90Β° and 105Β° holdβopen or with no holdβopen. Closer bodies fit into standard 1β3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and overhead concealed accessories are available.
Independent Adjustment Valves
Nonβcritical valve control adjusts Closing Speed and Latching Speed independently for precise door control.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed completely out of the closer body for added durability.
Note: Install an auxiliary floor or overhead door stop to prevent damage from overβextension of maximum door swing.
Product Warning:
This closer is not for use on doors weighing more than 200 lbs.
Contact CRL for ordering, specifications, or compatibility assistance.
