Product Details
- Welded and Ready to Paint
- Ready-to-Install
- New Oval Corner in 6063-T6 Mill Aluminum Alloy
- Requires Two Connector Sleeves (Not Included)

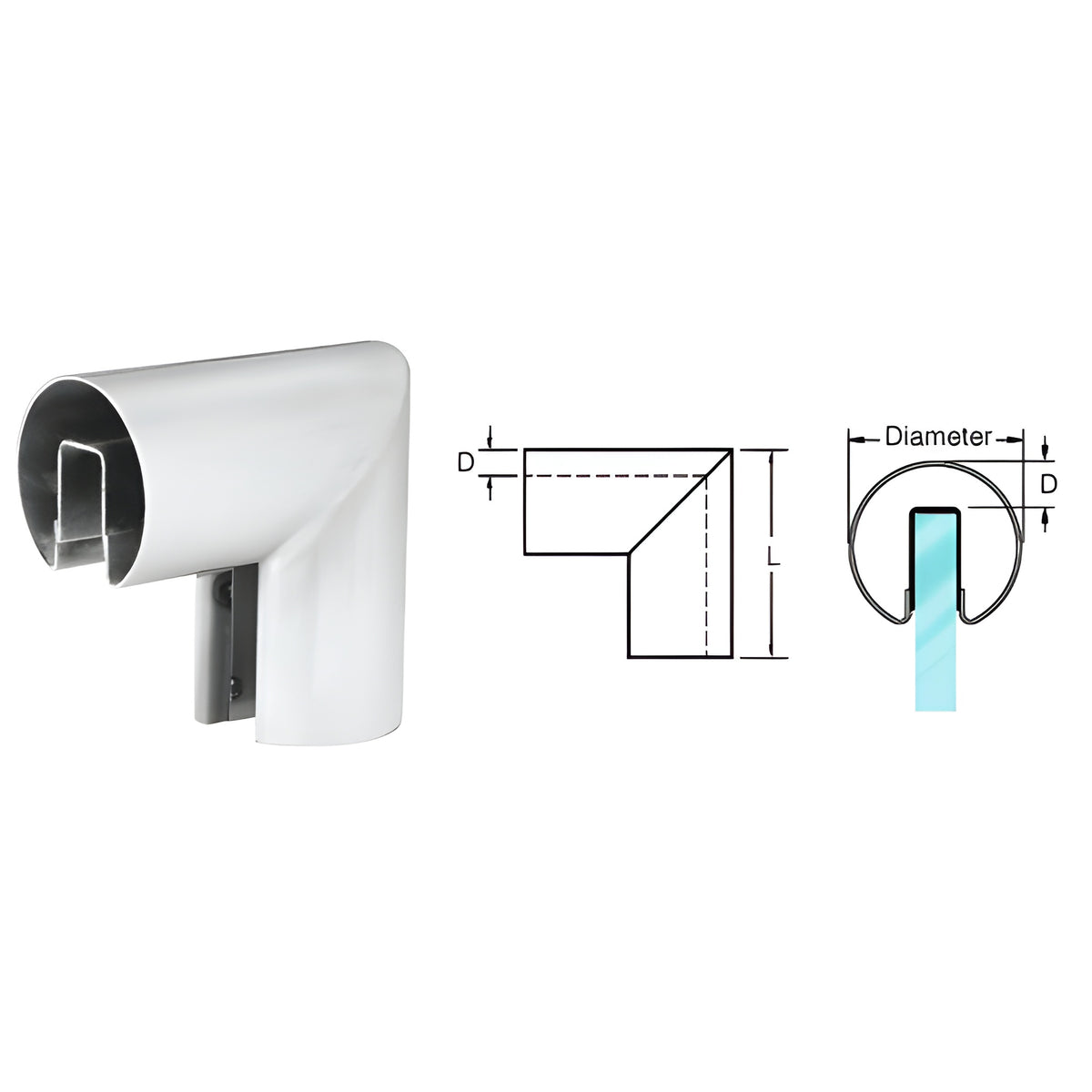

CRL Interior Slip-Fit Vertical Corners for 1/2" (12 mm), 9/16" (13.52 mm) or 5/8" (16 mm) thick glass allow for hairline joint assemblies with straight lengths of CRL Cap Rail. Use of our Cat. No. 32629 Metal Contact Cement is required to achieve a secure and permanent bond. Two Connector Sleeves are required for use with each corner.
Each Vertical Corner is fabricated and individually packed. Our mill aluminum corners are welded for painted finishes only. The Internal Corner Splices create an architecturally pleasing mitered joint. Please contact CRL Technical Sales Department for more information or a quote.
NOTE: Cat. No. GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure 1/2" (12 mm) glass; Cat. No. LR56PV Cap Rail Rubber Insert and 95CBL should be used to secure 9/16" (13.52 mm) laminated glass; Cat. No. 95CBL Silicone and shims should be used to secure 5/8" (16 mm) glass.
Dimension is used to calculate the glass size. Add the clearance you desire or add an additional 1/8" (3.2 mm) if using Cap Rail Vinyl.
