Product Details
- Extruded With Built-In Camber for Even Screen Tension
- Durable, Scratch Resistant White, Bronze and Gray Powder Coat Finishes Plus Mill
- .026" (.66 mm) Wall Thickness

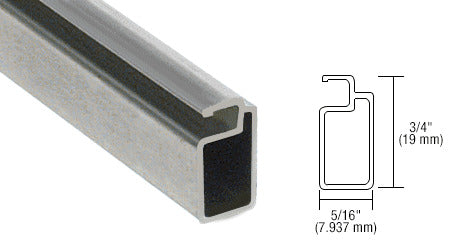

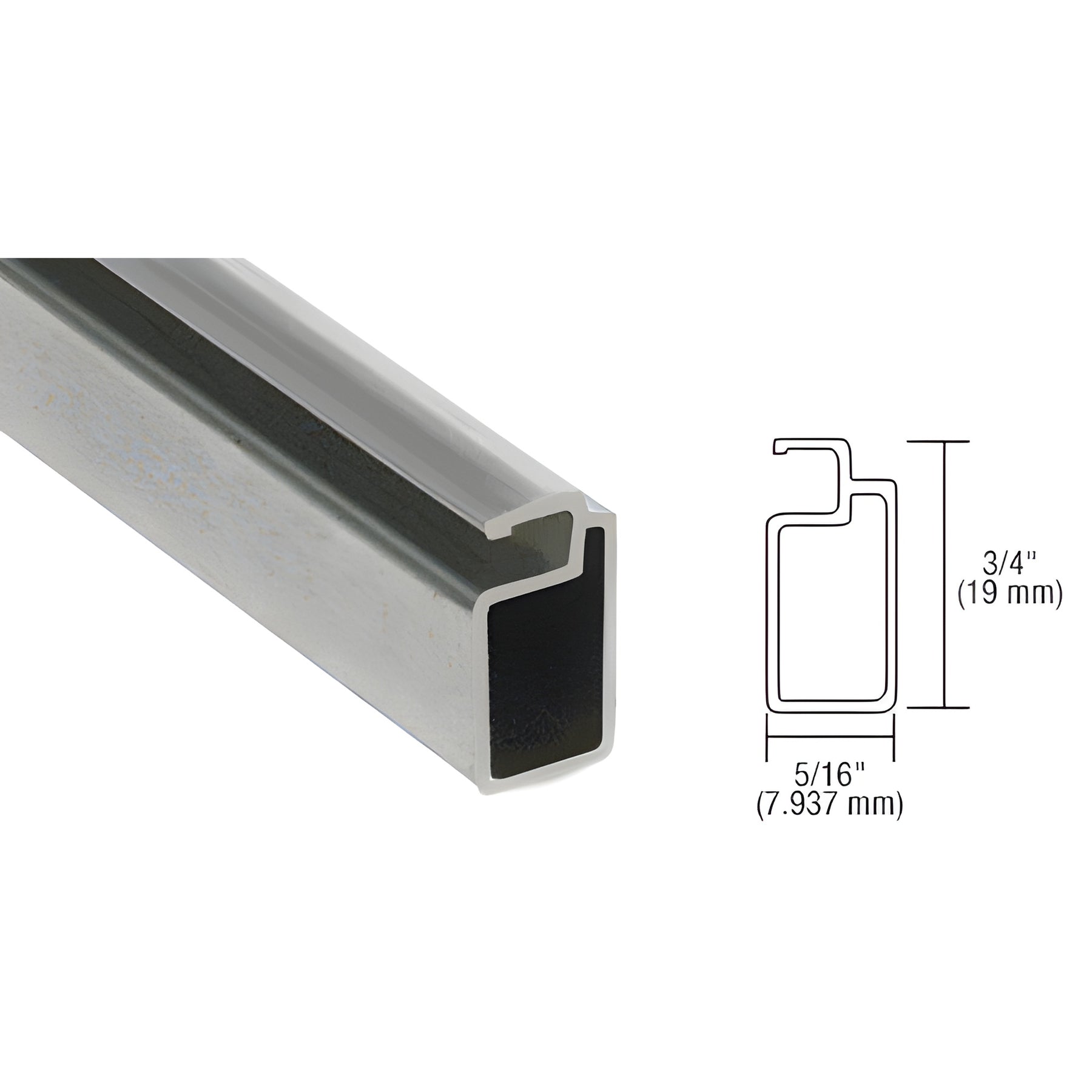

Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC105 Metal Mitered Corners, WSPC105 Plastic Mitered Corners, or our SWSC516 Square Cut Corner, and our .150" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .150" (3.8 mm)
Uses Corners: WSC105 for Mitered Corners; WSPC105 Plastic Mitered Corners; SWSC516 for Square Cut Corners
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
